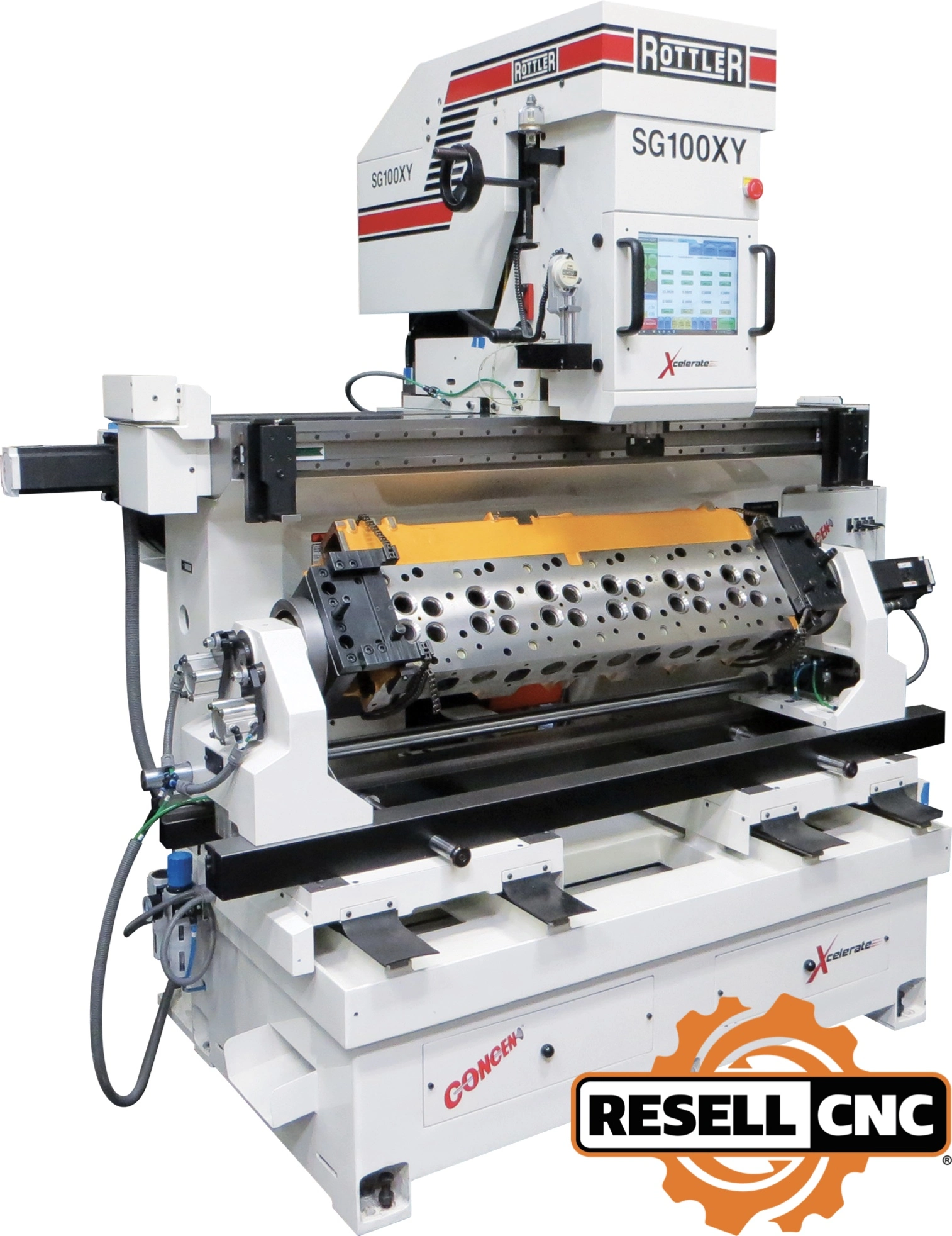

USED 2023 Rottler SG100XY

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Windows Operating System and Industrial PC with Intel Processor

15" Touch Screen

Auto Cycles for:

- Seat Cutting

- Housing Boring

- Guide Drilling and Reaming

- Thread Tapping

Additional Machine Specs: Valve Seat Diameter Range: 0.550" - 6"

Travels:

- X-Axis: 40"

- Y-Axis: 6"

- Z-Axis: 10"

Spindle:

- Taper: Rottler R40

- Diameter: 3.7"

- Speed: Variable up to 1,000 RPM

- Motor: 3.47 HP

- Head Tilt: 5°



Precision Digital Readout: 0.0001" Resolution

Electronic Handwheel for Manual Operation: 0.001" or 0.010" Increments

Tooling Storage Cabinet and Mounting Arm

Built in Vacuum Tester - Hose, Filter, Pads

(2) LED Worklights

Misc. Tool Holders



Electrical Requirements: 208-240V, 30A, 50/60Hz, 1 Ph

Air Requirements: cfm @ 90-100 PSI

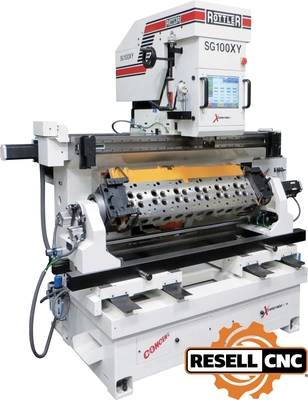

*PLEASE NOTE: Image on Listing is Generic, as Machine is still UNUSED IN CRATE*

Approx Weight And Dims Of Accessories: Shipping Dimensions: 57" x 89" x 94"

B Axis: false
C Axis: false
Control Make Model: Automatic CNC Control
Control Options: Color Monitor
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
