X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Core System
EWIS ManuLink
Machine Robot Connection
Setup and Loading Station Manager
JobManager Fanuc
JobManager RoboSPA
JobManager Zeiss Calypso
Turn Table 7
Machine Tool Management
Client Workplace

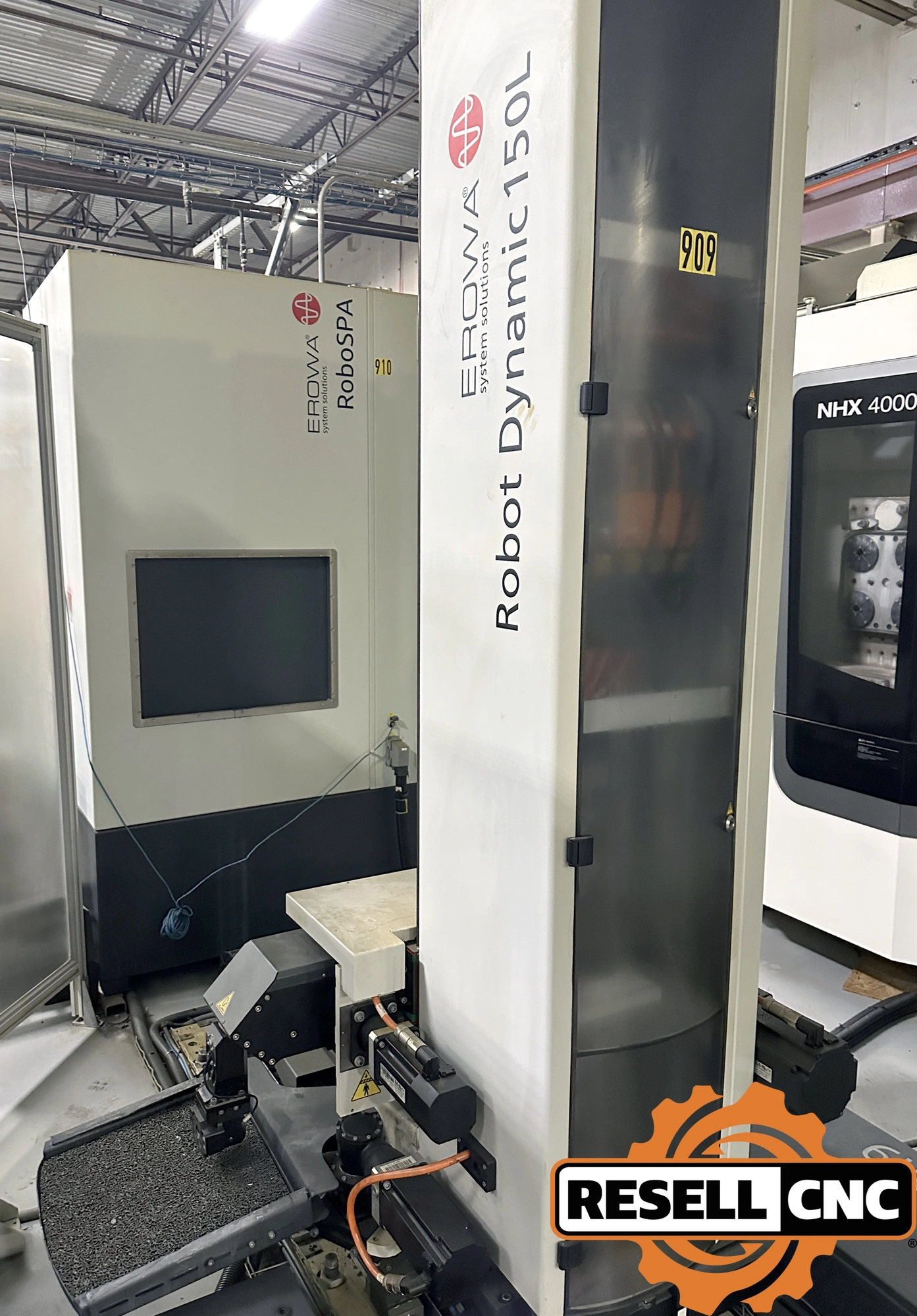

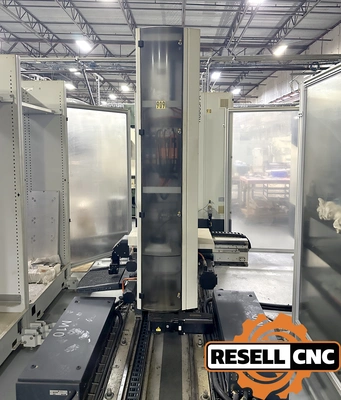

Additional Machine Specs: EROWA Robot Dynamic 150 Linear Transfer Unit:

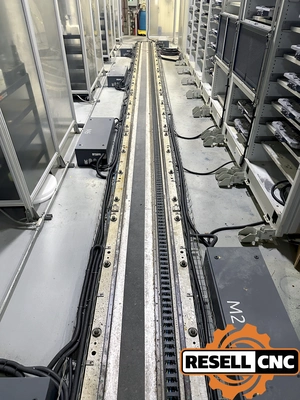

Rail Length: 826.78"
Part Size: 15.75" x 15.75" x 15.75"
Transfer Unit X-Axis: 53.94"
Gripper Arm: 45° Swivel with RCS5
Max. Transfer Weight: 330.7 lbs

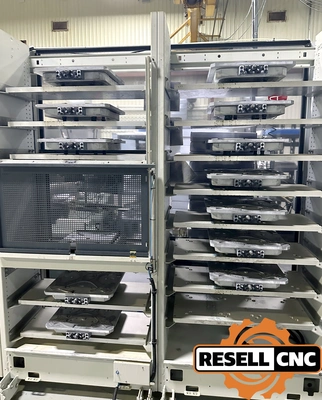

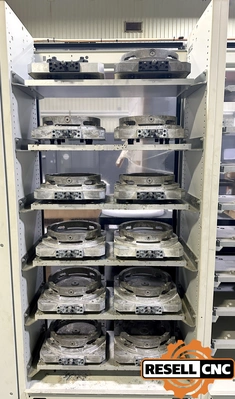

Rack Magazine with Integrated Loading Station:
(2) Positions with Tooling Support MTS400 (Excl. Turn Table)
(4) Positions MTS400
(6) Rack Magazine Single Passive
(72) Pallet Positions
All Required Pneumatic and Electrical Connections for 10 Machines

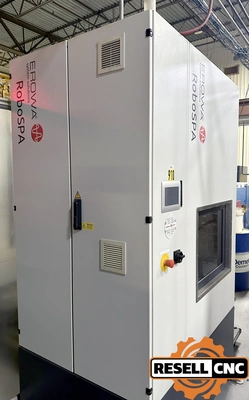

EROWA RoboSpa Pallet Washing Station:
Part Size: Part Size: 15.75" x 15.75" x 13.78"
Max. Workpiece Weight: 330.7 lbs
Min. Rinse Pressure: 3.2 bar
Max. Flow Rate: 70.27 Gal/Min.
Min. Cycle Time: 40 Sec.
Rotation Angle: 330° (-20° to +310°)
Rinse Fluid: Water-Based + Cleaning Agent
User Door and Robot Door in Fence for CMM (Zeiss Duramax)
Panel PC for ECU300 and Cell Management Software
Interface Box for 3rd Party CMM (Zeiss Duramax)
Line Fencing / Line Access Door
Universal Transformer
Tooling Receiver
(2) Setup Stations
Additional Accessories:
- (60) Erowa MTS Pallets
- (16) Erowa MTS Chucks
B Axis: false
C Axis: false
Control Make Model: JMS 4.0 Production Line System Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
