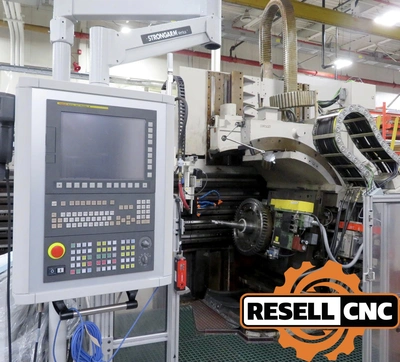

USED 2022 LaPointe Champion W89009

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Originally built 1988. Refurbished in 2022



Max. Stroke Length: 287"

Overall Length: 315"

Bearing Length on Ways: 301"

Face Width: 36.02"

Max. Cutting Tool Length: 260"

Max. Cut Speed: 36 - 984 IPM

Overtravel Max. Cut Stroke: 19.69"

Max. Return Speed: 2,364 IPM

Overtravel Max. Return: 13.78"

Slide Width: 36"

Skew Angle: +/- 45°

Thrust: 32 Tons

Motor: 181 HP @ 1,250 RPM



Equipped With:

Multi-Row Elevator

Rexroth GoPak Hydraulic Power Unit

Swarf Disposal

Gear Box

Hydraulic System

Lubrication System

B Axis: false
C Axis: false
Control Make Model: Fanuc 35i-B CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
