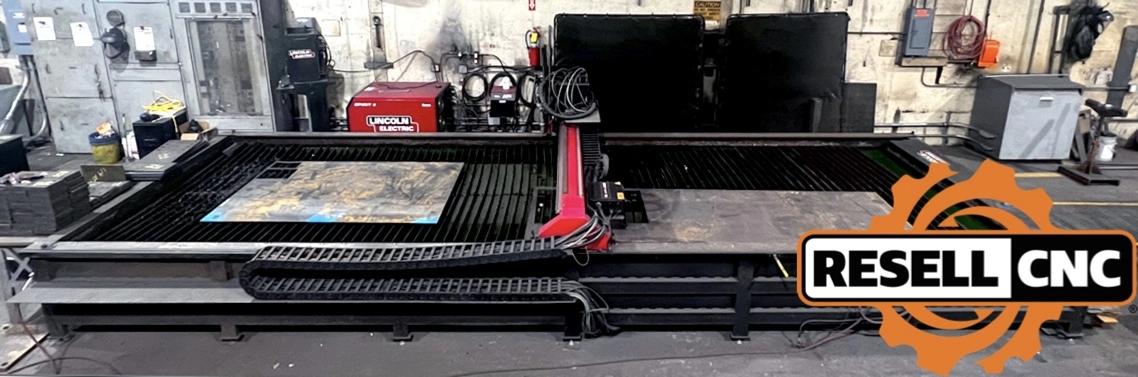

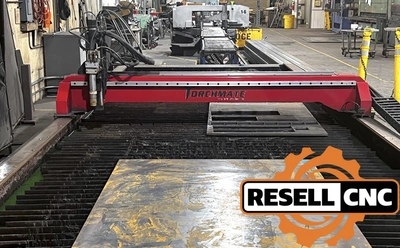

USED 2019 Torchmate X Lincoln

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Visual Machine Designer Touchscreen Interface

Sigma Nest Software

Torchmate CAD/CAM Software

DXF, DWG Direct Import

Additional Machine Specs: Table Size: 6′ x 22′

Table Type: Water Table

Cutting Capacity:

- FlexCut 80

- FlexCut 125

Traverse Speed: 572 IPM

Cut Speed: 572 IPM



Drive System:

Rack and Pinion X/Y-Axis 5:1 Reduction

Ball Screw / Linear Stage Z-Axis



Electronics / Motion System:

Two Y-Axis 380 oz. in. Step Motors

One X- Axis 380 oz. in. Step Motor



Equipped With:

Input Air: 8 SCFM @ 90 PSI, Dry Air Filtered to Min. 5 Micron

Height Control for Water Table, Water Height, Gantry, Arc Voltage

Full Cable Carrier System

Low Backlash 5:1 Gearboxes

Amps: 275.0
B Axis: false
C Axis: false

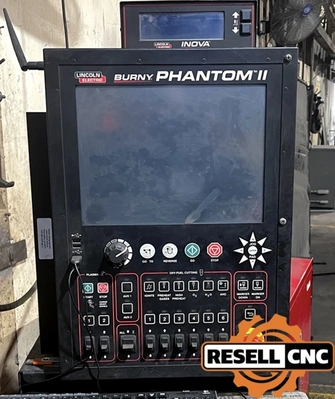

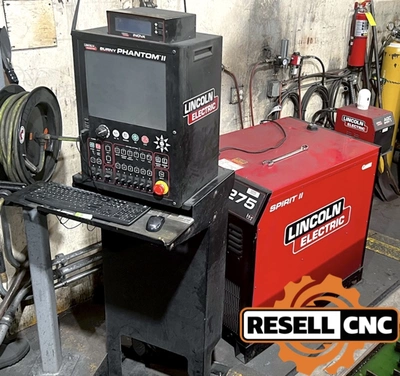

Control Make Model: Burny Phantom II Controller
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Gear Box
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 72" x 264
Y Axis: false
