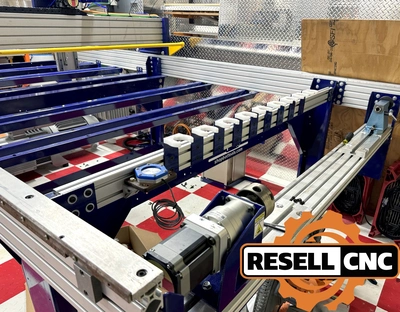

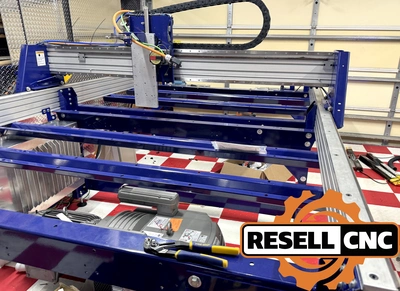

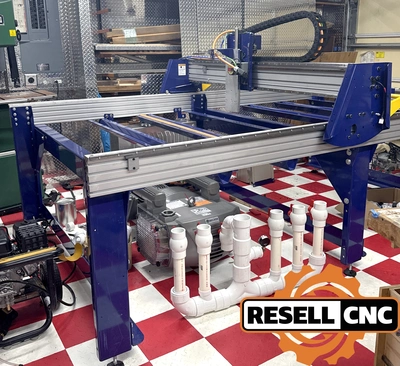

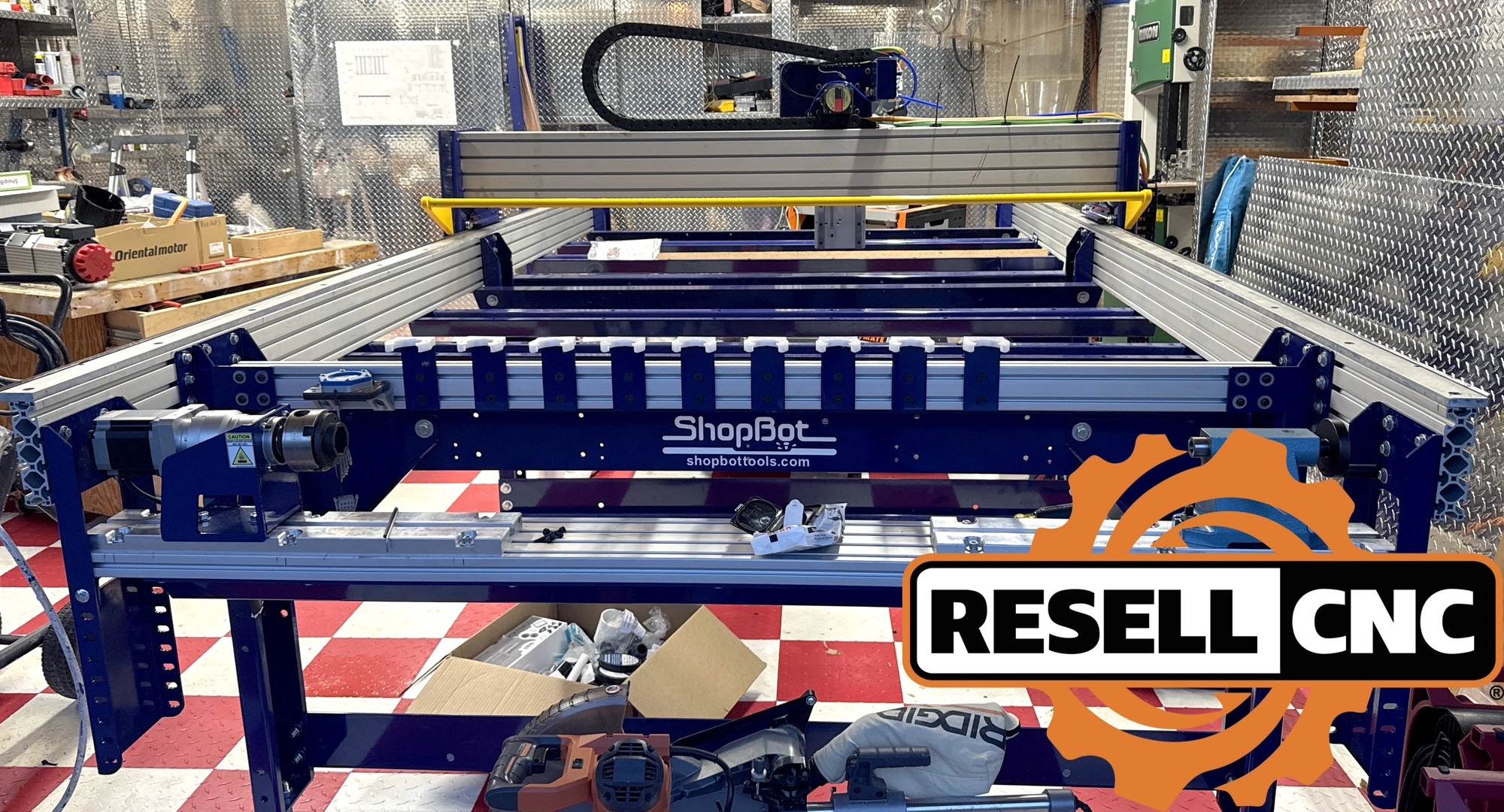

USED 2022 ShopBot PRSalpha 120-60

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Cut / Movement Area: 129" x 61" x 8"

Move Speed (with Full Cutting Force):

- X/Y: 720 IPM

- Z: 360 IPM

Positioning Speed:

- X/Y: 1800 IPM

- Z-Axis: 900 IPM

Step Resolution: 0.0004"

Linear Cutting Force: ~150 lbs @ 60 IPM

Drive System: Rack and Pinion



Equipped With:

(11) ISO30 Tool Holders:

- (4) 1/4" ER-32 Collets

- (3) 3/8" ER-32 Collets

- (4) 1/2" ER-32 Collets

Becker Vacuum System

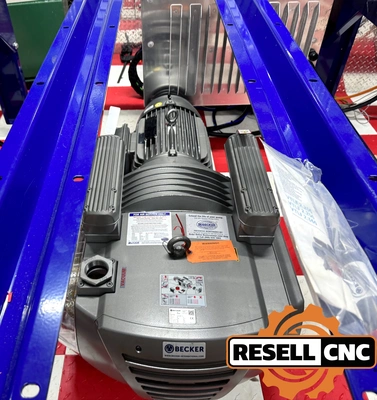

- Becker Rotary Vane Vacuum Pump: 10HP / 230v

- PVC 120 x 48 5 Zone Kit

Dust Collection Hose 4" x 18'

6" Rotary Indexer

B Axis: false
C Axis: false
Electrical: 220v Single-Phase
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Tool Positions: 9.0
Twin Turret: false
Y Axis: false
