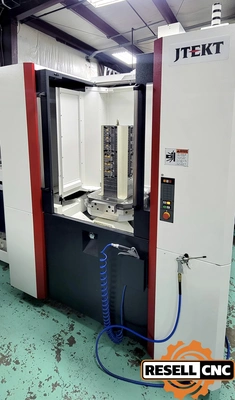

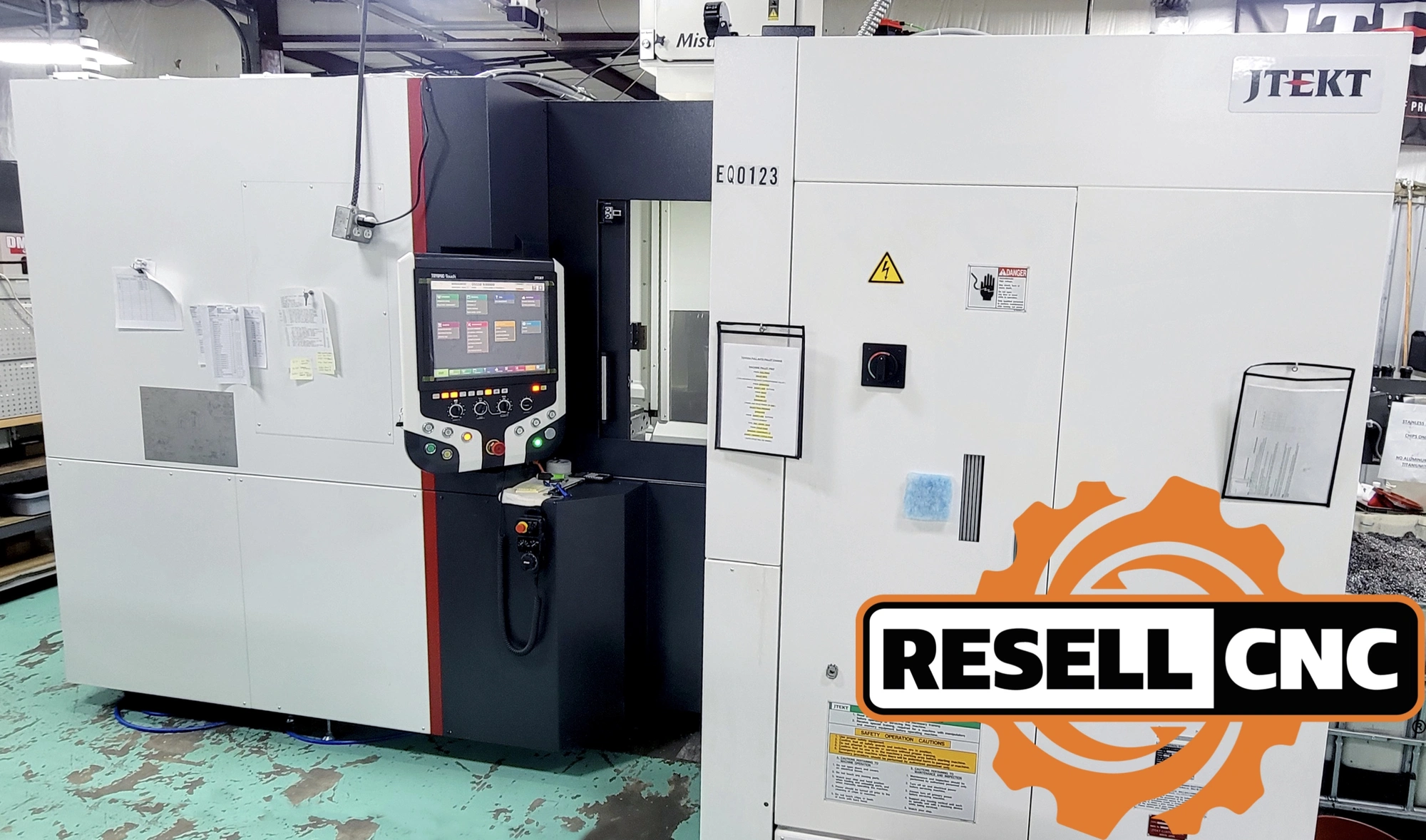

USED 2023 JTEKT FH5000-i

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

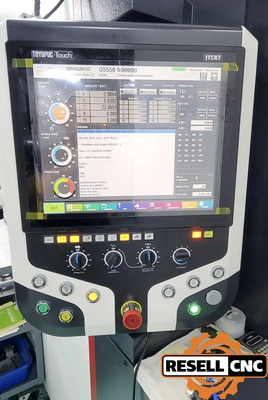

Additional Control Options: 19" Toyopuc Touch Screen HMI Display

8MB Memory

1000 Block Look Ahead Function with High Speed Processor

48 Work Offsets

220 Tool Offsets

3D Tool Compensation

OP Supporter Package:

- Tool Life Management

- Adaptive Control

Additional Machine Specs: Direct Drive B-Axis: 90° Index



Renishaw NC4 Laser System

395L Coolant Tank with Scraper Type Conveyor and Drum Filtration System

CTS Coolant System with 90L Auxiliary Tank and 20 Micron Cyclonic Filtration System

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 2.7
Control Make Model: Fanuc 31i-MB CNC Control
Control Options: Color Monitor, High Speed Machining
Coolant Type S: High Pressure Coolant, High Pressure Thru-Spindle Coolant
High Pressure Coolant Psi: 1000.0
Horizontal Table Pallet Size In MM: 550.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Parts Probe, Automatic Tool Length Measurement System
Max Table Pallet Load: 2200.0
Max Tool Diameter: 2.95
Max Tool Diameter Adjacent: 5.51
Max Tool Length: 18.5
Max Tool Weight: 17.6

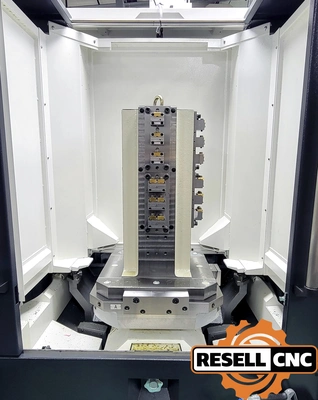

Number Of Pallets: 2.0
Probe Make Model: Renishaw NC4 Laser
Programmable Tailstock: false
Rapid Traverse: 2362
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 1.97-33.46
Spindle Motor: 50

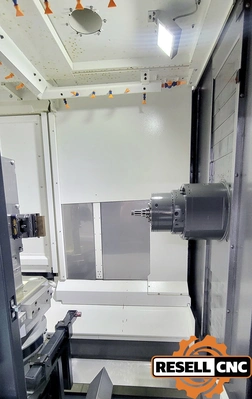

Spindle Speed: 15000.0
Spindle Taper Other: CAT#40 Big Plus
Spindle Taper Type: CAT#40
Sub Spindle: false

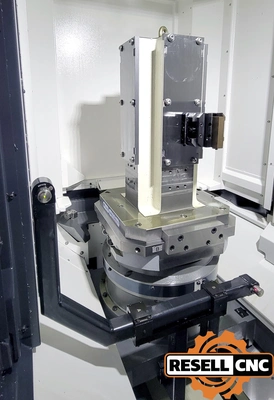

Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false

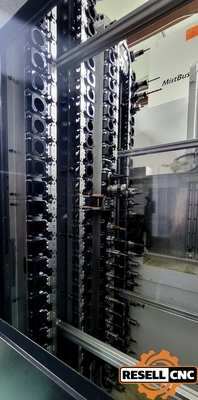

Tool Changer Type: Chain
Tool Change Time: 0.9
Tool Magazine Capacity: 119.0
Twin Turret: false
X Travel: 31.49
Y Axis: false
Y Travel: 31.49
Z Travel: 34.64
