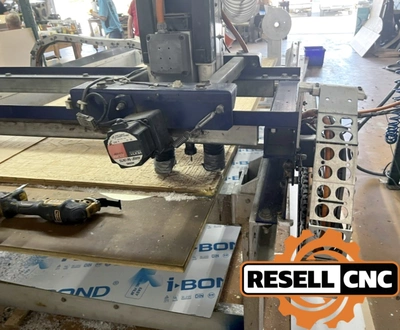

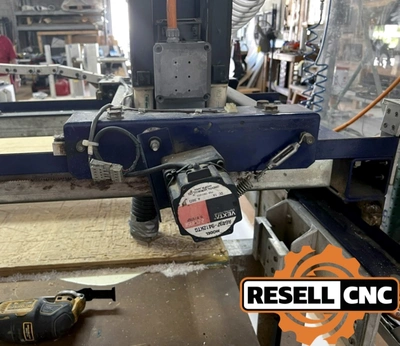

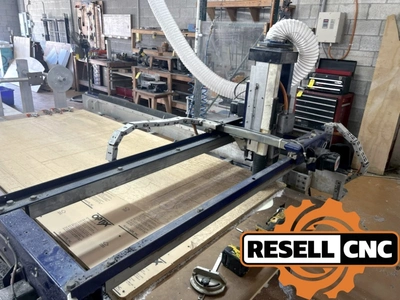

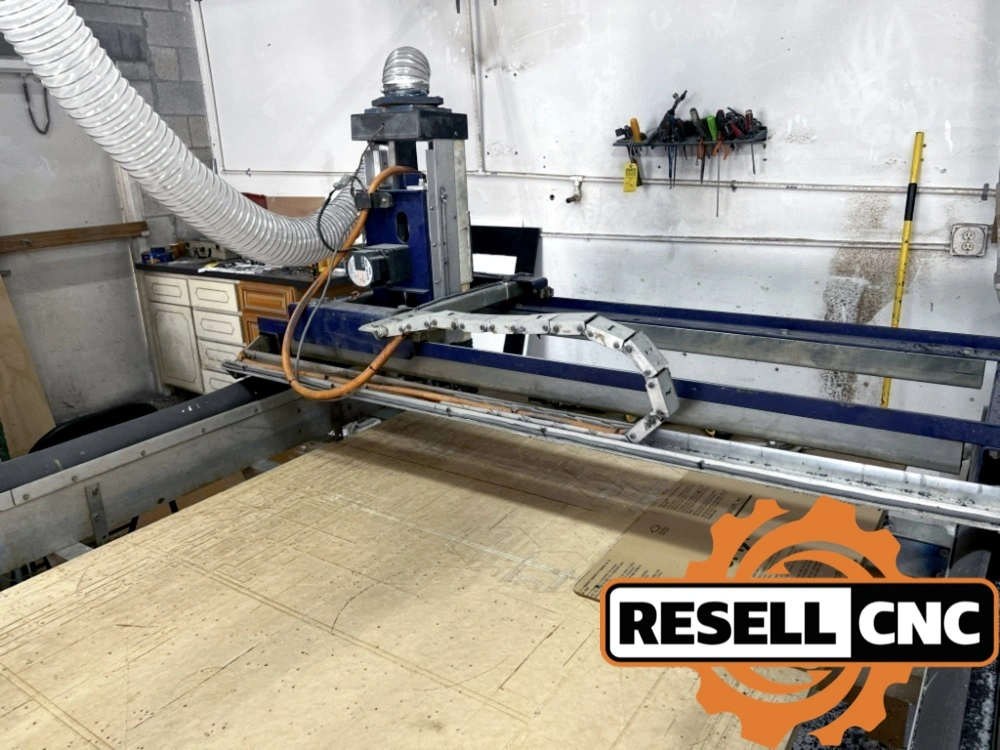

USED 2001 ShopBot 48x96

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Colombo 5HP Spindle

Zero Plate: Fixed Position Z

Tool Holder Type: ISO 30 Tool Holder with ER-32 C

Linear Cutting Force: ~150 lbs. @ 60 IPM

Step Resolution: 0.0004”

Variable Move Speeds w/ Full Cutting Force:

- Max. X-Axis: 720 IPM

- Max. Y-Axis: 720 IPM

- Max. Z-Axis: 360 IPM

Variable Positioning Speeds:

- Max. X-Axis: 1,800 IPM

- Max. Y-Axis: 1,800 IPM

- Max. Z-Axis: 900 IPM



Equipped With:

Custom Welded Aluminum Bed

Vacuum System

Misc. Bits and Collets

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 5
Spindle Taper Other: ISO 30
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 48" x 96
Y Axis: false
