X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

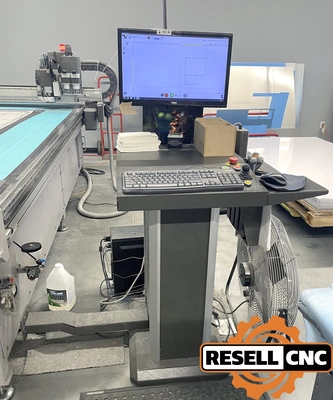

Additional Control Options: PC Based Computer Control System
Vision Registration Software
CCD Camera with LED Lighting
Additional Machine Specs: SPECIFICATIONS:
Max. Table Surface Loading: 18.4 lbs/sqft
Active Cutting Width: 63"
Physical Width (Over Cutting Gantry): 104"
Active Cutting Length: 125.9"
Physical Length Machine Table: 148.9"
Height: 33.9" (+/-2")
Max. Linear Speed: 47"/sec
Operating Speed: Variable (per Material Type)
X and Y Axis Running Rails: Heavy-duty Machined Rail and Bearing System
Cutting Table: 1.75" Thick; Aircraft Grade Aluminum Faced Composite
Vacuum Pump Type: Single 10 HP (Double Flow Side Channel)
Vacuum: 6 Vacuum Zones (Controlled Electronically by PC)
OPTIONS:
Versa-Tech 1.6m Flatbed Digital Finishing Cutting System
Vacuum Regenerative Turbine Blower with Reverse Control

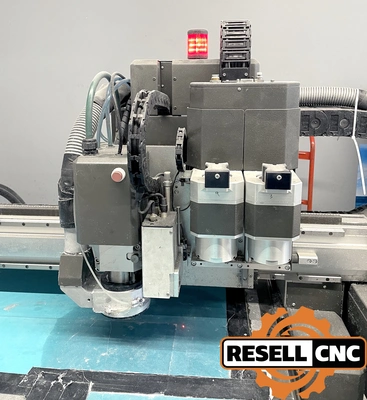

2.5kW Tooling - Driven Rotary Cutting Tool with Auto-Sharpening Capability for Porous Fabrics and Textiles
Tangential Drag Knife for Non-Permeable Textiles
Oscillating Knife for Thicker Woven Textiles and Light Rigid Boards
Crease Tool for Carton and Corrugated Boards
Kiss-Cutting Tool for Adhesive Backed Vinyl and Film
Angle V-Cutting Tool for Honeycomb Corrugated
Waste Vacuum System
Auto Tool Calibration System
Rolled Material Holder
Automated Conveyor Belt Feed System
Minimal Mist System
Spares Kit Pack
B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Speed: 60000.0
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 125.9" x 63
Y Axis: false
