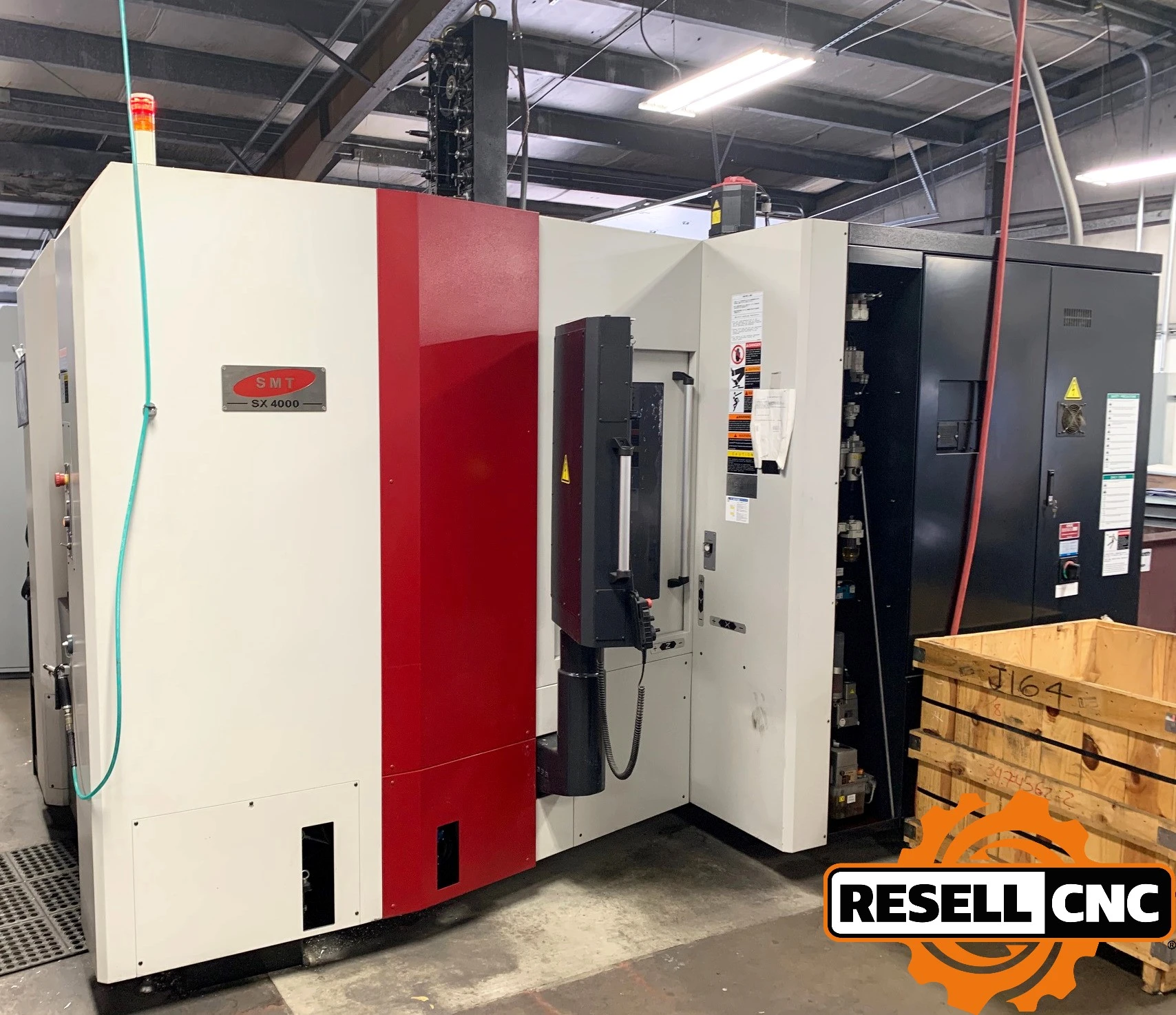

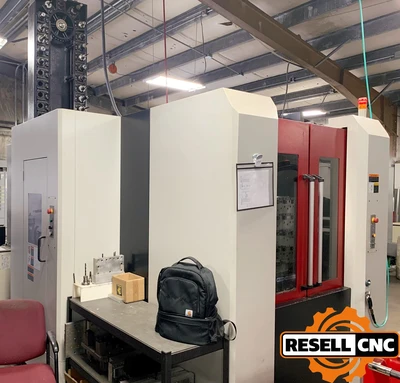

USED 2017 SMT SX-4000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: (8) Sets Additional M Code

Magazine Interrupt Function

Four Tapered Cone Pallet Positioning

Tool Monitoring Systems Soft AC - Adaptive Control Function

Additional Machine Specs: Min. Index - Built in Rotary Table: 0.001°

Spindle Center to Pallet Surface: 3.15" - 25.2"

Spindle Gage Line to Pallet Center: 1.97" - 29.13"

Pallet Change Time - Two Station APC: 9.0 sec (JIS)

Spindle Bearings Bore Diameter: 2.76"

Spindle Bearings Lubrication Oil and Air

Spindle Torque Maximum: 184 ft-lbs. (10%ED)

Digital Servo Axis Motor - X/Y/ Z Axes: 7.5 HP

Max. Axis Thrust X Axes: 4108 lbs

Max. Axis Thrust Y/Z Axes: 3081 lbs

Magazine, Cassette Tool Pot Type (Includes Spindle): 60

Tool Shank Cat " V "

Tool Change System: Double Swing Arm

Tool Selection Address Fixed Random Method

Coolant Spindle Nozzles: 6

Ceiling Shower Nozzles: 14

Digital Encoder Positioning: +/- 0.000098"

Digital Encoder Repeatability: +/- 0.000059"

Indexing Accuracy/Positioning: +/- 2.50 sec

Pallet Positioning Repeatability: +/- 0.00039"



Automatic Spindle Speed Range Selection

(2) Coil Chip Conveyors: Left and Right Side of Pallet

Coolant Shower Flush

Coolant Spray Gun

Fully Enclosed Automatic Splash Guards

Operator's Splash Guard Door with Safety Interlock

Heavily Ribbed One Piece T-Shaped Bed Construction

Large Linear Cross-Roller Guides - Auto Grease Lubrication

Metal Shutters on X, Y, and Z Axes

Spindle Oil Cooler

MH250 Turbo Mixed Materials Lift Up Conveyor

Additional Pallet Tapped Type

Air Blow Nozzle

BT Tooling Retrofit Cost (Return of CAT40 Arm Required)

Constant Hydraulic Fixture Coupling

NC-4 Split Beam Automatic Tool Length Measure System

Magazine Tool Breakage Detection

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 2.8

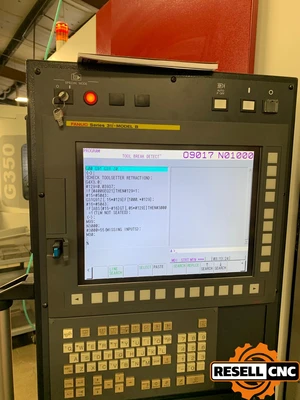

Control Make Model: Fanuc Series 31i-B CNC Control
Coolant Psi: 1000.0
Coolant Type S: Thru-Spindle Coolant
Cutting Feed Rate: 1575
Horizontal Table Pallet Size In MM: 400.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Transformer, Automatic Pallet Changer, Automatic Tool Length Measurement System, Splash Guards, Oil Chiller
Max Table Pallet Load: 882.0
Max Tool Diameter: 3.74
Max Tool Diameter Adjacent: 6.69
Max Tool Length: 17.71
Max Tool Weight: 11.0
Number Of Pallets: 2.0
Probe Make Model: T1-A Renishaw OMP60 Probe and Software
Programmable Tailstock: false
Rapid Traverse: 2480
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 50
Spindle Speed: 15000.0
Spindle Taper Other: 7/24 #40
Spindle Taper Type: BT40
Sub Spindle: false
Table Pallet Indexing: 0.001
Tailstock: false
Tool Changer Type: Arm
Tool Change Time: 1.4
Tool Magazine Capacity: 116.0
Twin Turret: false
X Travel: 22.05
Y Axis: false
Y Travel: 22.05
Z Travel: 27.17
