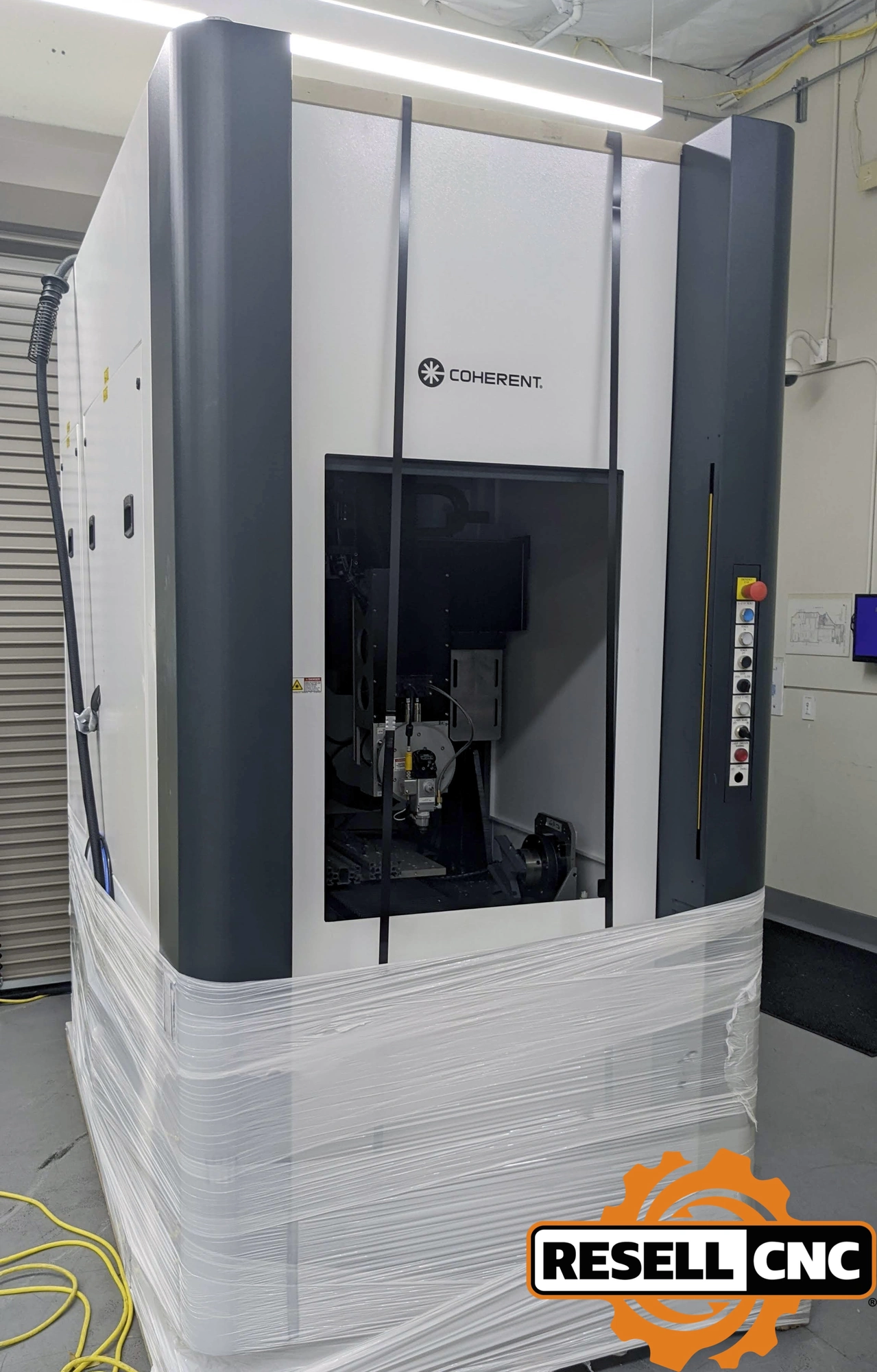

USED 2019 Coherent HighLight FL2000 Fiber Laser

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Digital + Analog I/O Interface

Additional Machine Specs: 2000 Watts Nominal Beam Power

Wavelength: 1080nm

Multi-Mode

50um Fiber

Beam Parameter Product of Less than 2.5 mm x mrad After Collimating Optic

Integrated Pulse Generator and Ramping Capabilities

Standard Operating Voltage: 480 Volt, 60Hz



Equipped With:

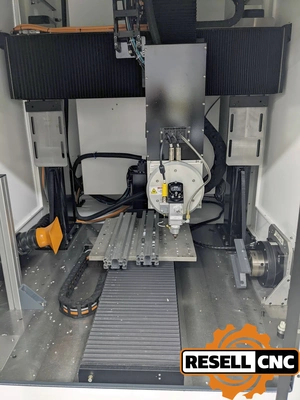

UW1200 Cutting Tool:

- Total Enclosure

- Interlocked Safety Doors

- Automatic Door

- Dedicated HMI

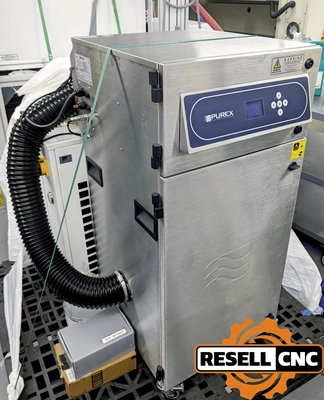

Purex 2000i Fume Extractor ($12,000 Option):

- 600 CFM at 20 INWG

- Vacuum Bypass



Rotary Option ($24,000 Option):

- Part Rotary

- 3-Jaw Chuck

- Horizontal & Vertical Positioning

- Max. Part Diameter: 8"



FiberMini Cutting Head Assembly

Fiber to Fiber Coupling Unit

Fiber Optic Cable: 100um x 10, QBH

Water Hose Kit

AW-Chiller

All Manuals

B Axis: false
C Axis: false
Control Make Model: Rolfin Control Unit (PC Controlled)
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
X Travel: 23.62
Y Axis: false
Y Travel: 23.62
Z Travel: 11.81
