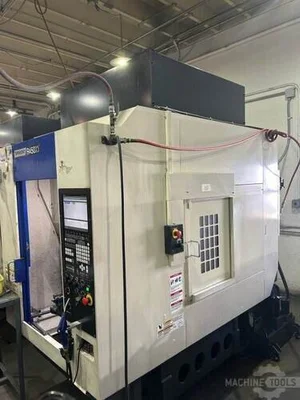

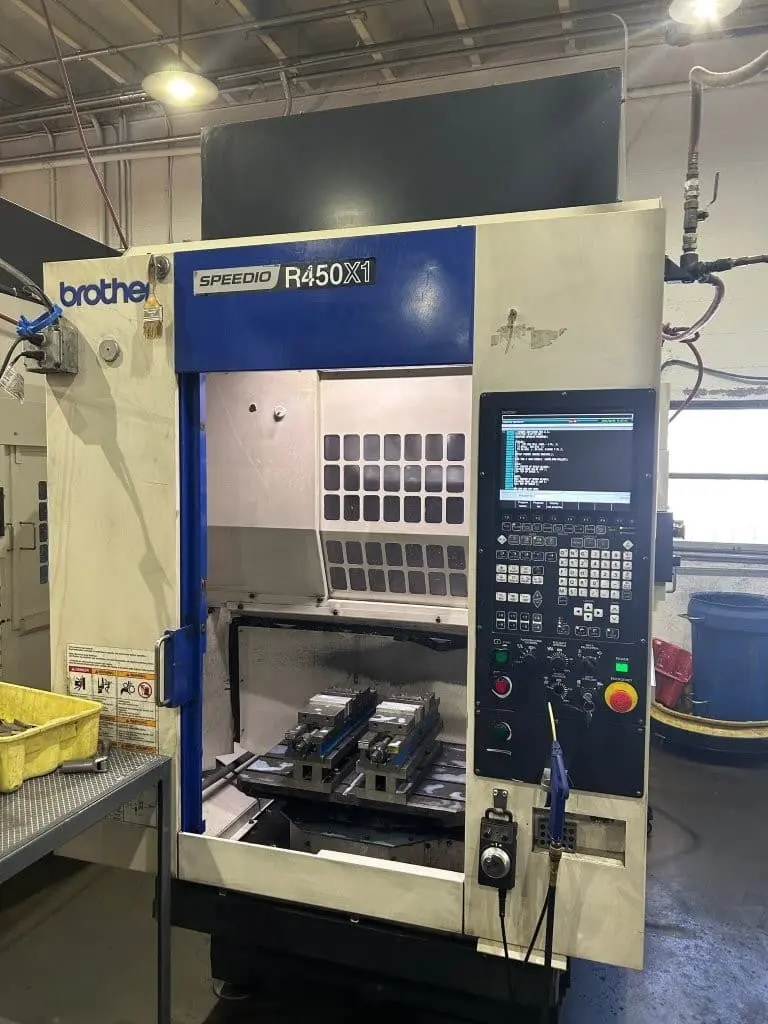

Brother Speedio R450X1 CNC Vertical Machining Center, VMC
| X | 17.7" | 449.58 mm |
| Y | 12.6" | 320.04 mm |
| Z | 12" | 304.8 mm |
| Power | 10.1 kW | 13.5 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 22 | 22 |
| Taper | 7/24 #30 | 7/24 #30 |
| Table-W | 11.8" | 299.72 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 3 | 3 |
General Info
Stock #: 132250020
Location: Bradenton, FL
Brand: Brother
Model: Speedio R450X1

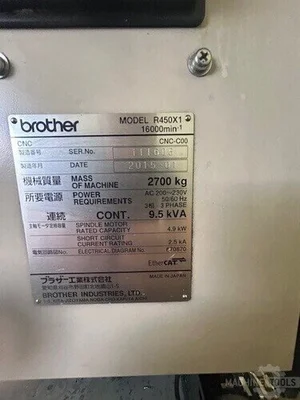

Serial #: 111606
Year: 2015
Approx. Shipping Weight: 6,000 Lbs.
Approx. Shipping Dimensions: 65" W x 112" L x 105" H
Loading Fee: Rigging Required
Specifications
Working Area Size: 23.6" x 11.8"
Max Loading Capacity: 265 lbs
Spindle Speed: 16,000 RPM
Tapping Speed: 6,000 RPM
Spindle Taper: BT-30
Max Tool Lenght: 7.9"
Max Tool Diameter: 3.1"
Max Tool Weight: 6.6 lbs
Chip to Chip Time: 1.5 seconds
Tool to Tool Time: 7 seconds
X-Axis Travel: 17.7"
Y-Axis Travel: 12.6"
Z-Axis Travel: 12"
X,Y,Z Rapids: 1,969 ipm
Tool Chager Capacity: 22
Power: 220V / 3 Phase
Equipped With

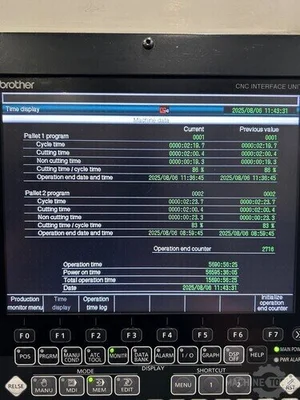

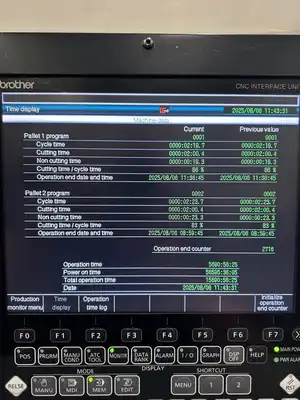

Brother CNC Control, Machine Hours: Operation Time - 5,690, Total Operation Time - 15,690, Power On Time - 56,595, Coolant Through Spindle, Coolant Tank & (2) Coolant Pumps
Additional Info
Machine can be demonstrated upon request.
