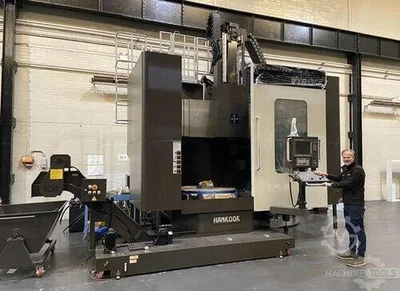

USED 2018 HANKOOK VTB 125E

FANUC 32I CNC Control12 Position Automatic Tool Changer - MAS BT 50Table, Servo Drives And Motors4 Jaw Independent ChuckAutomatic Tool Change SystemLubrication Oil CoolerHydraulic Power UnitAutomatic Lubrication System for GuidesCoolant System & Wash GunThrough Tool CoolantSplash Guard & Safety Guard RailX-Axis Slideway Protect Steel CoverWork LightPatrol Lamp (Red, Yellow & Green)NC Power OffChip Pan

Manufacturer: Hankook
Model: VTB 125E
Year: 2018
Condition: Used
Stock Number: 5654226
Table diameter: 1,250 mm
Swing: 1,600 mm
Turning height: 1,400 mm
Table capacity: 8,000 kg
Table turn speed: 0.9 - 360 rpm (Auto 2-step)
Z axis travel: 900 mm
X axis travel: 1,060 mm
Ram size: 220 x 220 mm
W axis: 700 mm
Max torque: 17,885 Nm
Max cutting force: 3,000 kgf
Spindle taper: ISO 7/24 #50
Rapid feed X/Z: 7,500 mm/min
Rapid feed W: 300 mm/min
Table motor (cont./30 min): AC 37/45 kW
X/Z servo motor: 7 kW
Input power supply: 415V / 50 Hz / 3 Ph
Power capacity: 80 kVA
Machine dimensions: 6,760 x 4,565 x 5,290 mm
Machine weight: 25,800 kg
