USED 2022 PEDDINGHAUS PeddiAssembler

This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

Core Specifications:

The machine has 3,900 hours. However, the welder itself has only 337.3 operating hours.

Max Profile Dimensions:
- Height: up to 30"
- Length: up to 0'
- Width: up to 30"

Max Profile Weight: 11,000 lbs
Max Part Weight: 440 lbs
Welding Type: MAG welding

Weld Capabilities:
- Single-pass: up to 5/16"
- Multi-pass: up to 7/8"

Automation & Robotics
- Single Rail Design: Compact footprint with both welding and assembly robots on one track

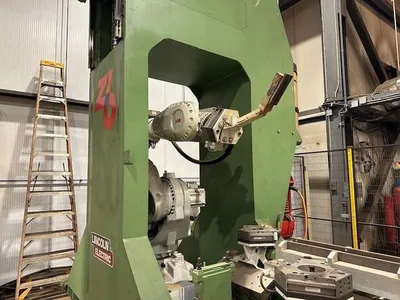

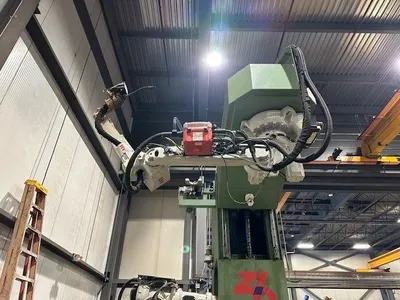

- ABB Welding Robot: Tack and weld with precision
- Parts Handling Robot: Places parts on all four sides of the profile
- Integrated Profile Turning: Full 360° rotation for continuous processing
- Laser Measurement System: Torch-mounted for accurate part placement
- Parts Scanning Unit: Verifies part dimensions against 3D model

Software & Control
- ProFIT Software:
- Semi-automated workflow generation
- Compatible with major 3D BIM platforms
- Operator-friendly interface for importing, editing, and monitoring

Applications
Ideal for fabricators handling:
- Structural steel beams
- Miscellaneous steel components
- High-volume tack and weld operations
- Projects requiring reduced manual fitting and increased throughput

-Have a transformer supplying energy from 600v to 400v, therefore the machine can be sold into the USA without any modification.
