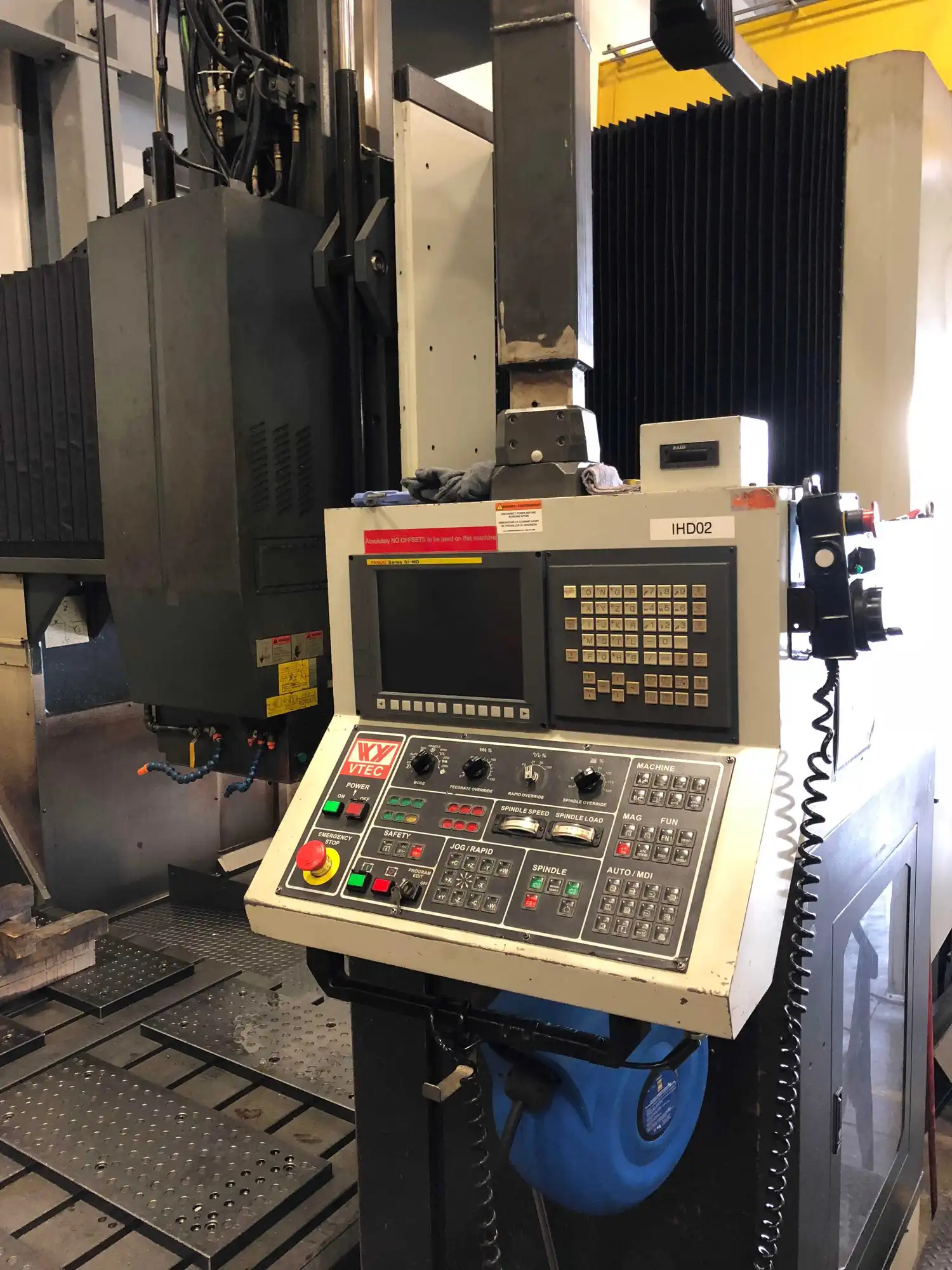

USED 2010 VISION WIDE NF-3226
Overview
Description
2014 Vision Wide NF-3226 Bridge Type VMC w/ Right Angle Head
126" x 126" x 40", 6K RPM, 40 ATC, Fanuc 0iMD Control, Coolant Thru & More
Specifications
| X | 3,200 mm | 125.98" |
|---|---|---|
| Y | 2,600 mm | 102.36" |
| Z | 920 mm | 36.221" |
| Power | 18.5 kW | 24.8 hp |
| RPM | 4,000 RPM | 4,000 RPM |
| Table-W | 2,450 mm | 96.457" |
| Table-L | 3,000 mm | 118.11" |
Vision Wide NF-3226 Bridge Type Vertical Machining Center
w/ Indexing Right Angle Head
New: 2014
Specifications:
Table Size L x W: 118" x 96"
Max. Workpiece Weight: 28,660 Lbs.
Travels:
X-Axis: 126"
Y-Axis: 102"
Z-Axis: 40"
Spindle Taper: CAT 50
Spindle Speed: 6000 RPM
Spindle Motor: 29 / 34 HP (30 min. rating)
Number of Tools: 40 ATC
Head Changer: Yes
Max. Tool Length: 17.700"
Max. Tool Diameter: 8.460" (with empty adjacent pockets)
Max. Tool Weight: 40.00 Lbs.
Number of Axes: 3
Distance Between Columns: 106"
Spindle Nose To Table (Min) 5.900
Spindle Center To Column 17.950
Equipped With:
Fanuc 0iMD CNC Control
Coolant through spindle
Chiller unit
Chip conveyor
Indexing head attachment
Box way Z axis
Linear X & Y axis
Geared spindle head
Machine Weight : 80,248 Lbs.
Dimensions: L x W x H 393" x 251" x 185"
Electrical Requirement: 60 kVa
