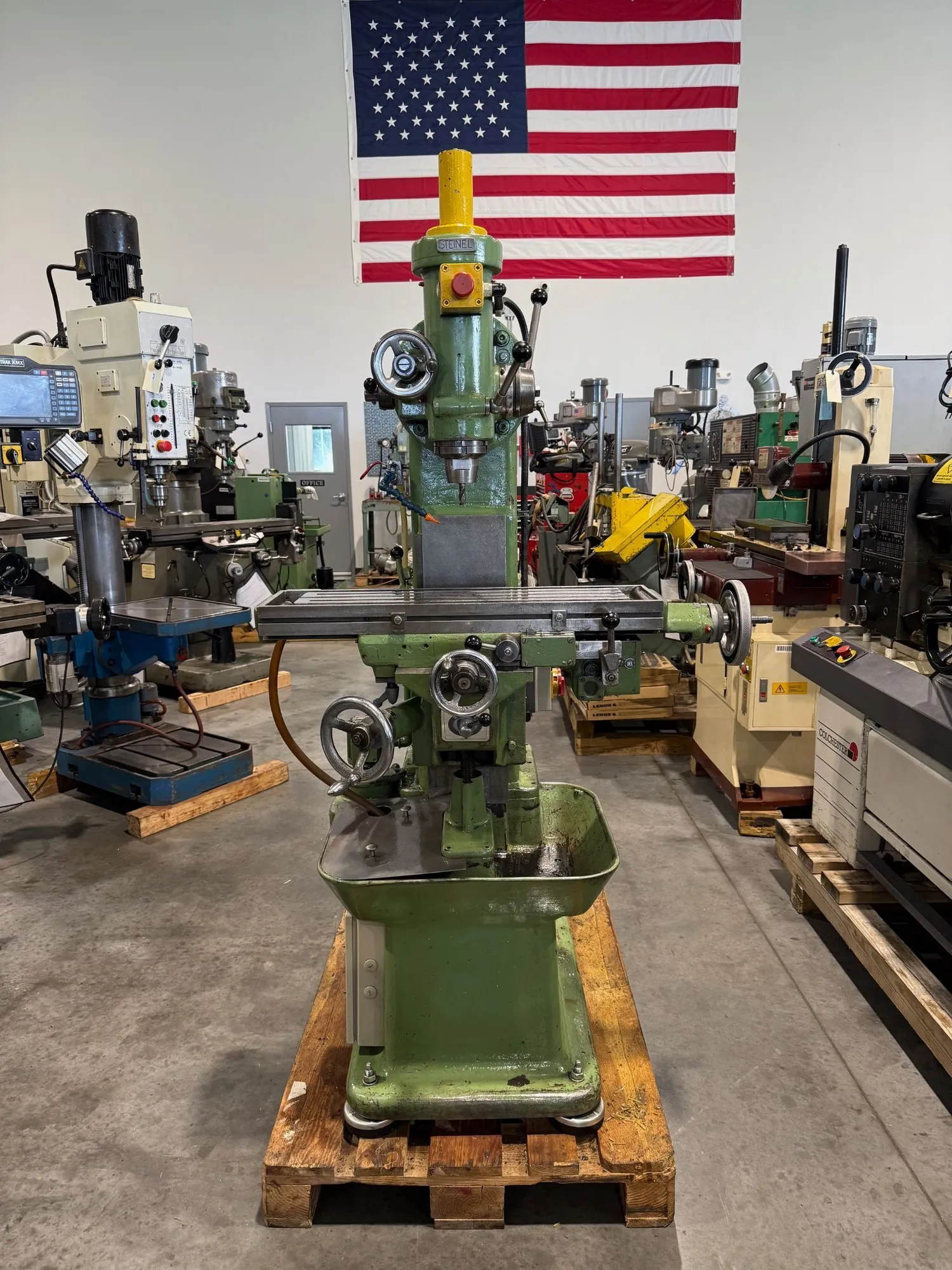

STEINEL SV4 Vertical Milling Machine German #7709
| Dimensions | 48” x 42” x 72” H | 48” x 42” x 72” H |
| Weight | 1600 Lbs. | 1600 Lbs. |
STEINEL SV4 Vertical Milling Machine German #7709
Reference #7709
Model # SV4
Serial # 1360
Table size- 7-3/4” x 24”
X axis travel- 12”
Y axis travel- 6”
Vertical travel- 11”
Max distance spindle to table- 12”
Distance column to spindle- 6-7/8”
Spindle taper- # 3Morse
Spindle speeds- (8) 155, 240, 310, 480, 570, 890, 1150, 1780
Made in Germany
Power feed on X axis
1/8 H.P. Coolant pump and system
1-1/2” H.P. spindle motor
Machine is wired for 440 volt / 3 phase / 60 H.Z.
Machine weight- 1600 Lbs.
Machine dimensions- 48” x 42” x 72” H
Machine location-F.O.B. Sarasota, Florida
