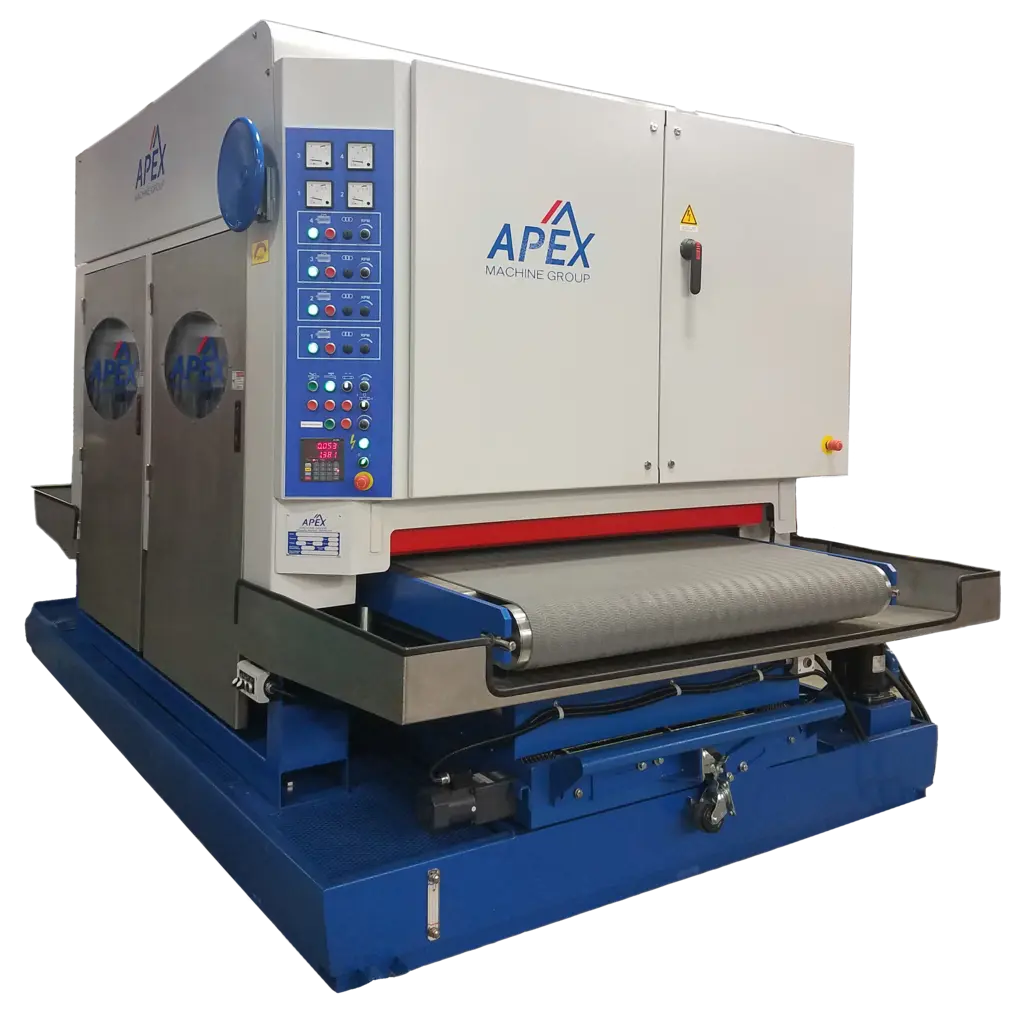

NEW APEX 3000 Series

Built with the heaviest production requirements in mind to allow you to meet your large production needs whether it be deburring, slag grinding, edge radiusing, paint/surface preparation, finishing/polishing or a combination of these applications. These heavy duty machines are built for the multiple shift, seven-day-per-week operations. This series of machine can be built in both top and bottom configurations.

Heavy-duty construction allows for 24-hour per day operation
Machines built in widths from 25″ to 64″ and multiple head frames
Dual infeed and outfeed pinch rolls to ensure parts feed through machine properly
One- to four-head configurations with drum, brush or combination drum/brush heads
Spray headers on both sides of sanding area to keep parts cool and belts clean during operation
Individual cam adjustment down to .001″ per head for accurate finishing
Paper media filtration system with automatic paper advance
Air-loaded cylinder for automated belt tensioning
Automatic abrasive belt tracking to ensure proper belt alignment during operation

SPECIFICATION DESCRIPTION

Belt Width: 25" to 64"

Motor Size: 15 HP to 70 HP

Number of Heads: 1 to 4

Types of Heads
Available: Drum, Scotch-Brite, Brush and Disc

Drum Size: 125 mm to 360 mm

Machine
Configuration: Top-Only

Feed Motor: 3 HP to 7.5 HP
