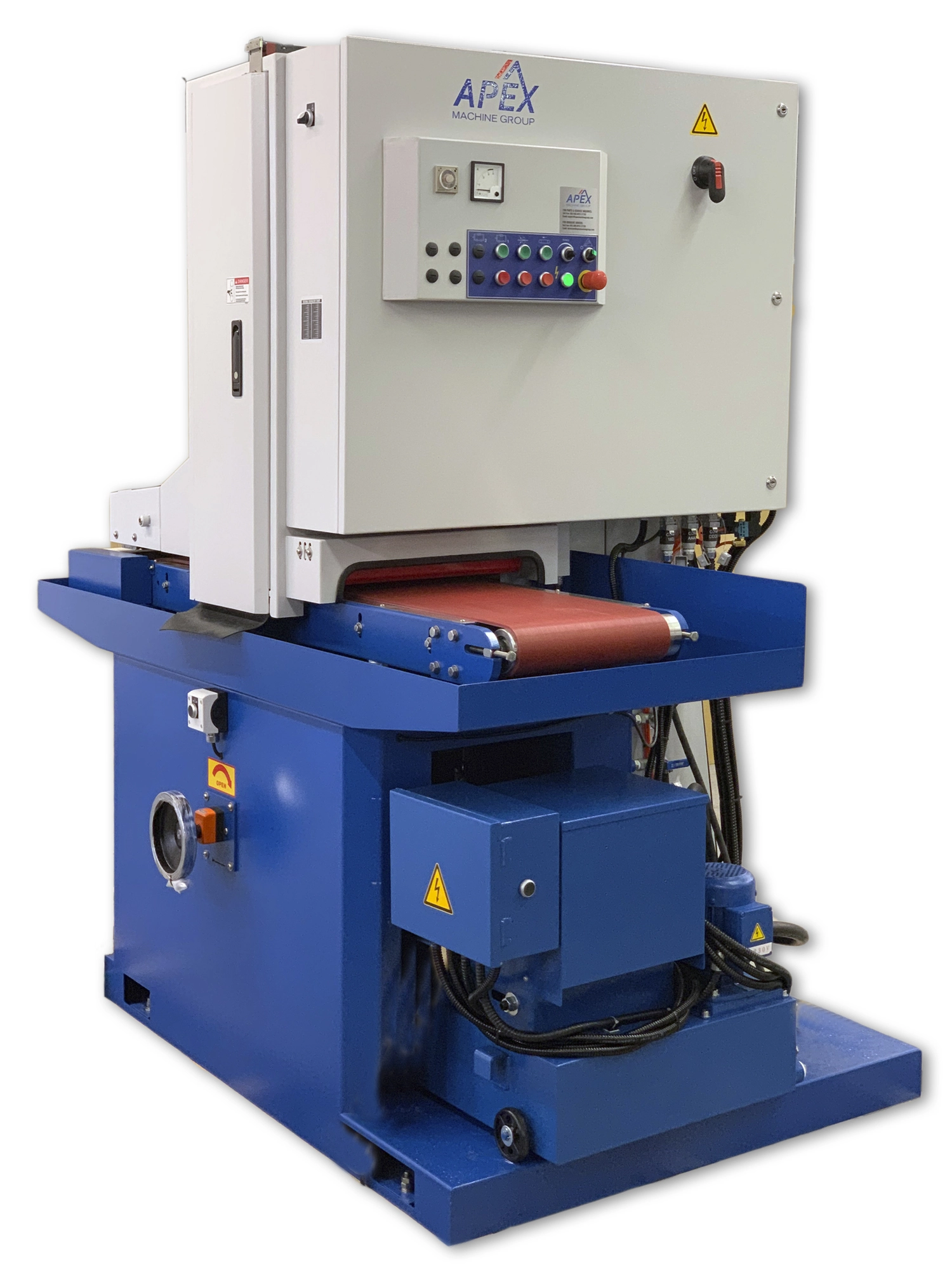

NEW APEX 1000 Series

The 1000-series of machines are built in a heavy duty construction with a smaller footprint designed to accommodate the small to medium shop with various applications such as deburring, dross removal, calibrating/dimensioning, edge radiusing or finishing. This series of machine can be built in one to three heads and also in either top and bottom configurations.

Dual infeed and outfeed pinch rolls to ensure parts feed through machine properly
Single, double or triple head configurations with drum, brush or discs heads or a combination drum/brush/or disc heads
Spray headers on both sides of sanding area to keep parts cool and belts clean during operation
Individual adjustment down to .001″ per head for accurate finishing
Paper media filtration system with automatic media advance
Air-loaded cylinder for automated belt tensioning
Automatic abrasive belt tracking to ensure proper belt alignment during operation

SPECIFICATION DESCRIPTION

Belt Width: 13" to 19"

Motor Size: 5 HP to 30 HP

Number of Heads: 1 to 4

Types of Heads
Available: Drum, Scotch-Brite, Brush and Disc

Drum Size: 120 mm to 280 mm

Machine
Configuration: Top-Only

Feed Motor: 1 HP to 3 HP
