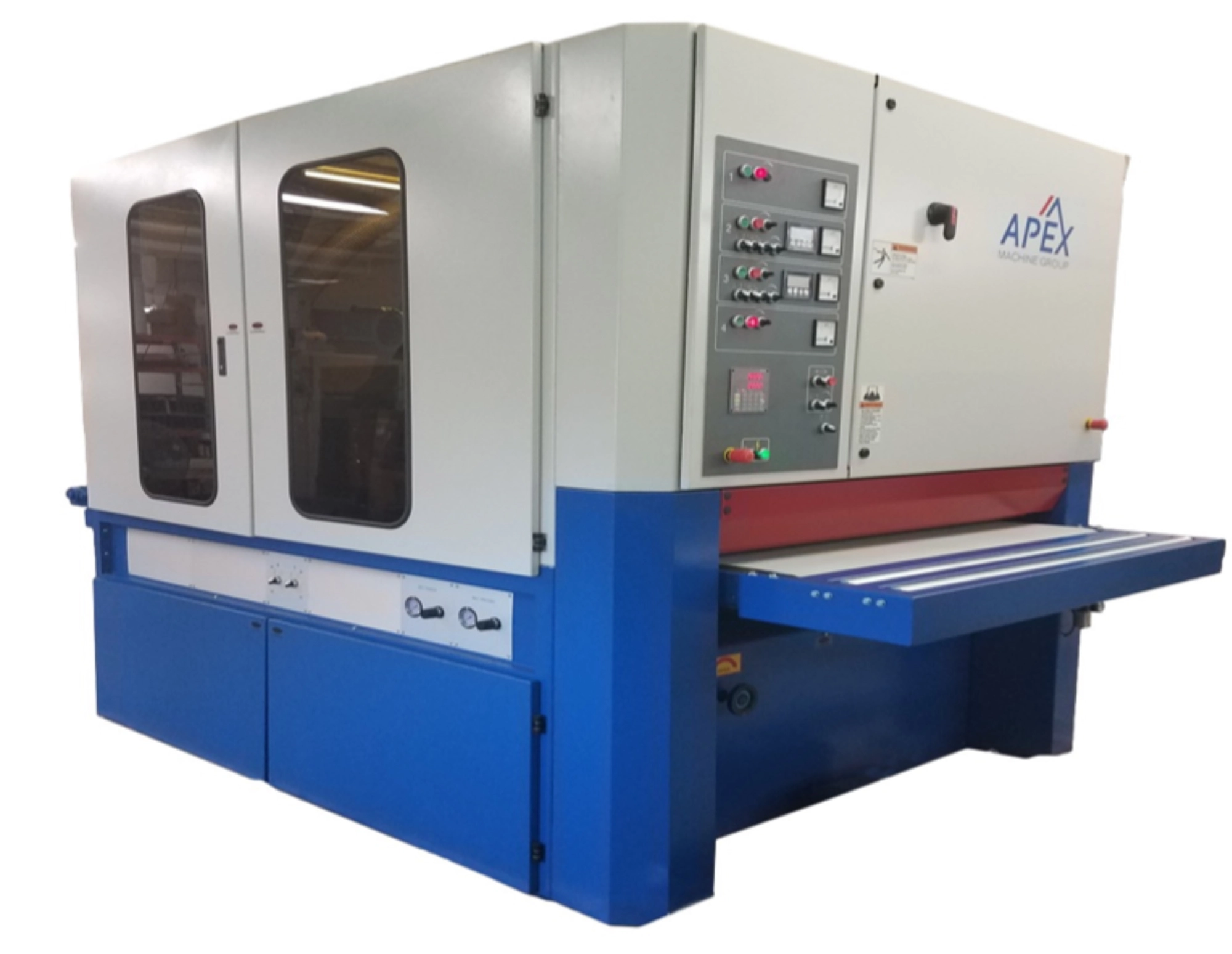

NEW APEX 3000 Series

Built with the heaviest production requirements in mind to allow you to meet your large production needs whether it be deburring, slag grinding, edge radiusing, paint/surface preparation, finishing/polishing or a combination of these applications. These machines are built for the multiple shift and seven-day-per-week operations. This series of machine can be built in a top and bottom configurations.

Heavy-duty construction allows for 24-hour per day operation
Machines built in widths from 25″ to 64″ and multiple head frames
Dual infeed and outfeed pinch rolls to ensure parts feed through machine properly
One- to three-head configurations with drum, brush, disc or combination drum/brush/disc heads
Machines built in both top and bottom configurations
Individual cam adjustment down to .001″ per head for accurate finishing
Air-loaded cylinder for automated belt tensioning
Automatic abrasive belt tracking to ensure proper belt alignment during operation

SPECIFICATION DESCRIPTION

Belt Width: 25" to 64"

Motor Size: 15 HP to 75 HP

Number of Heads: 1 to 4

Types of Heads
Available: Drum, Scotch-Brite, Brush and Disc

Drum Size: 150 mm to 360 mm

Machine
Configuration: Top-Only, Bottom-Only, or Top/Bottom Configuration

Feed Motor: 3 HP to 7.5 HP
