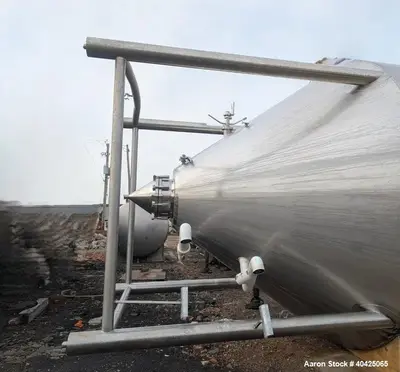

Used Quality Tank Solutions 12,400 Gallon (400 BBL) Jacketed Stainless Steel Tank

Used Quality Tank Solutions 12,400 gallon (400 BBL) Jacketed Tank. 304 stainless steel construction. Approximately 138" inner diameter x 204" straight side. Dish top. 87" deep, 60 degree cone bottom. 2 zone jacketed on side and 1 zone jacket on bottom cone, rated 50 psi at 250 f. On legs. Serial# 003-10099-400-FRM-04. Built 2013. Approximately 144" diameter x 360" high overall tank size.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Quality Tank Solutions

Capacity: 12,400 Gallons (400 BBL)

Serial Number: 003-10099-400-FRM-04

Year Built: 2013

Category: Jacketed Stainless Steel Process / Storage Tank

Description
This used Quality Tank Solutions jacketed stainless steel tank has a 12,400-gallon (400 BBL) capacity and is constructed of 304 stainless steel for durability, corrosion resistance, and sanitary processing.

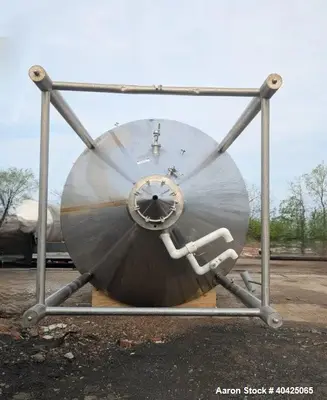

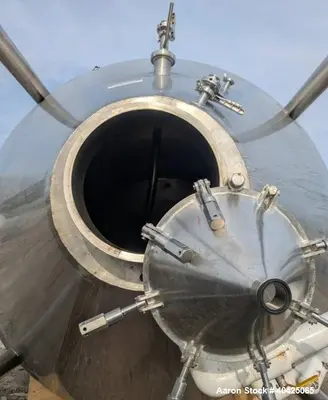

The tank features a dish top and a 60° cone bottom that is 87" deep, allowing efficient drainage. It is equipped with a 2-zone jacket on the straight sidewall and a 1-zone jacket on the cone bottom, each rated for 50 psi at 250°F, making it suitable for both heating and cooling applications.

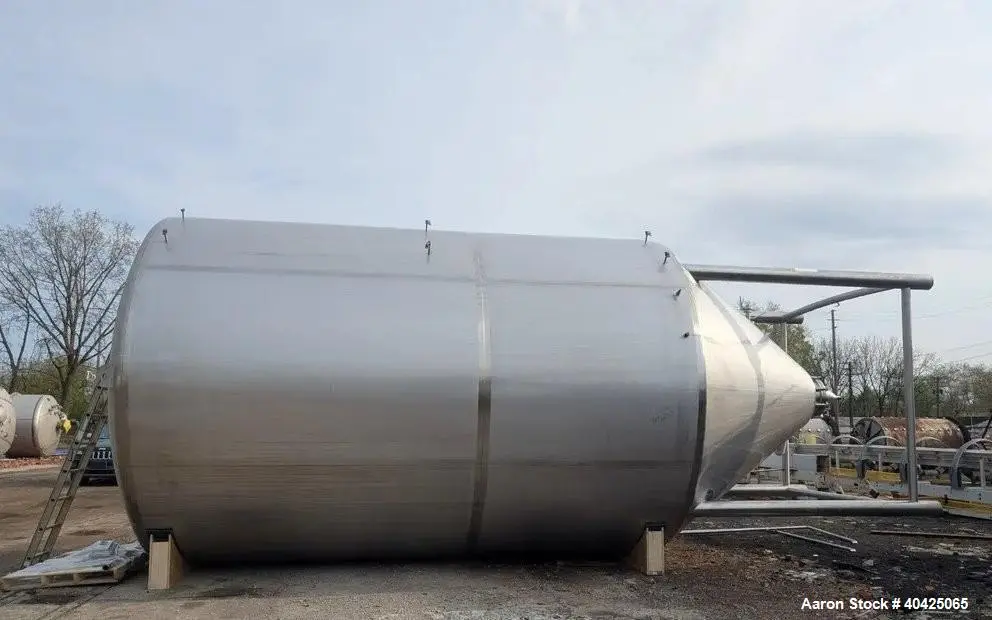

Measuring approximately 138" inner diameter x 204" straight side, with an overall tank size of 144" diameter x 360" high, this tank is mounted on legs for stability. Built in 2013, it remains well-suited for large-scale processing in food, beverage, dairy, pharmaceutical, and industrial liquid applications.
Specifications

Capacity: 12,400 gallons (400 BBL)

Construction Material: 304 stainless steel

Dimensions:

Inner Diameter: ~138"

Straight Side: ~204"

Cone Bottom Depth: 87" at 60°

Overall Size: ~144" diameter x 360" high

Top Style: Dish top

Bottom Style: 60° cone bottom

Jackets:

2-zone jacket on straight side

1-zone jacket on cone bottom

Rated: 50 psi at 250°F

Mounting: On legs

Serial #: 003-10099-400-FRM-04

Year Built: 2013

Applications
What might this be used for?

Large-scale mixing, heating, and cooling of process liquids

Bulk storage for food and beverage processing

Dairy processing including fermentation and holding tanks

Brewery fermentation or brite beer storage

Pharmaceutical and nutraceutical liquid processing

Chemical and industrial process fluid storage

Biofuel and renewable energy liquid processing

Cosmetic ingredient storage and blending

Agricultural nutrient or fertilizer storage

Any high-capacity sanitary liquid handling operation

Example Products Stored in this Tank

Milk, whey, and dairy products

Beer, wine, and cider (fermentation/brite use)

Juice concentrates and beverages

Liquid sweeteners and syrups

Nutritional supplements and nutraceuticals

Cosmetic oils, lotions, and bulk formulations

Non-corrosive chemicals and solvents

Pharmaceutical liquids and intermediates

Agricultural fertilizer blends or solutions

Bio-based industrial liquids
