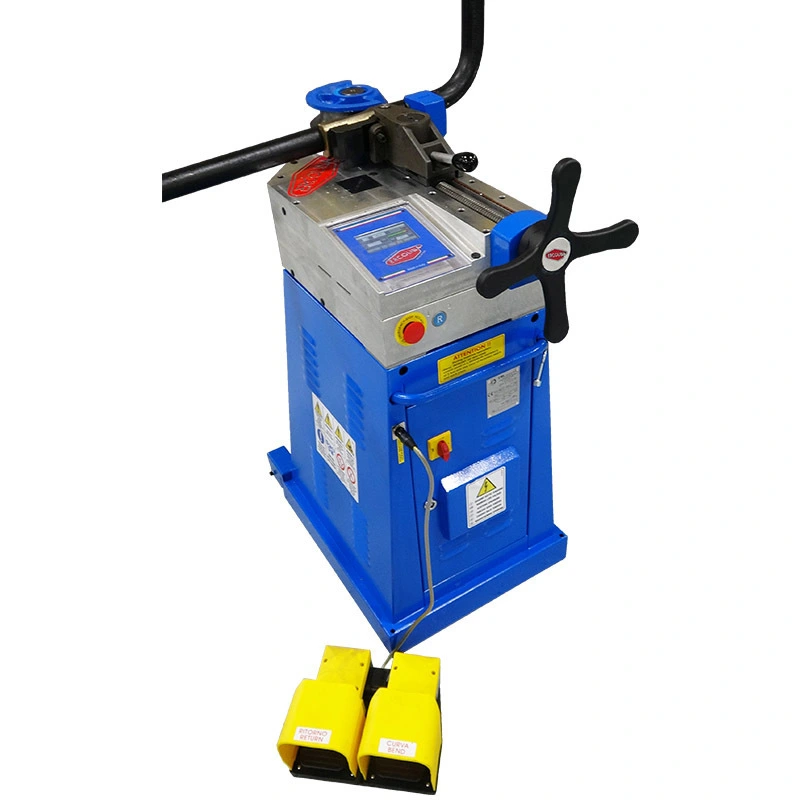

NEW ERCOLINA TB60-TC

Mild steel tube capacity 2-1/2″
Pipe capacity 2″ Sch. 40
Square tube capacity 2″ .083 wall
Maximum CLR 15″
Bend to CLR as small as 2D
Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
Touch screen indicates bend angle, springback and bend speed for each angle within the program
Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
Quick-change tooling system with multiple radii available
Right or left hand bending available with vise accessory
Automatically stops at desired bend angle to end cycle
Unlimited program storage for quick recall
Use control panel or foot pedal to initiate bend and return functions
Counterbending die position monitored electronically for accuracy and repeatability
Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
No hydraulic components
Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
