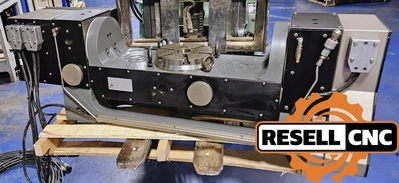

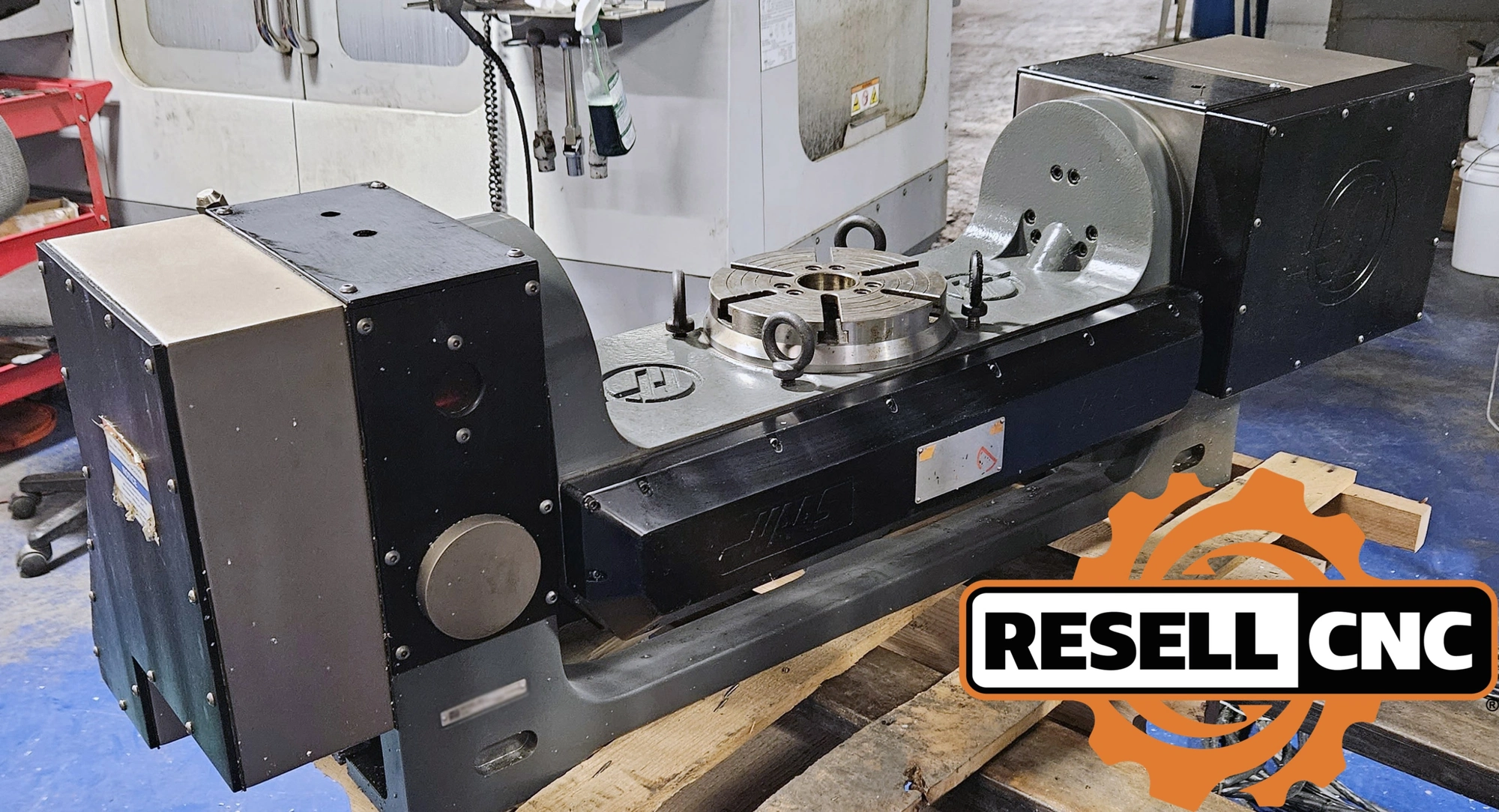

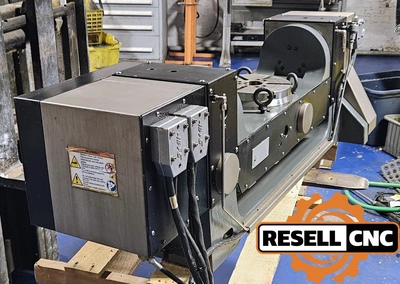

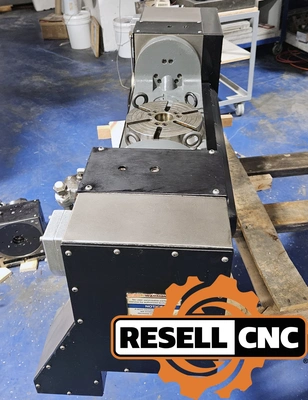

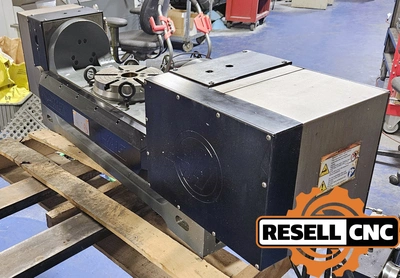

USED 2010 Haas TR-210

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Max Weight on Platter: 200 lb / 91.0 kg

Part Swing Max: 23.5 in / 597 mm

Number of Std. T-Slots: 6 @ 60°





SPINDLE - A / TILT:

Max Speed: 60 °/sec

Max Torque: 300 ft-lbs

Backlash: 30 arc-sec

Gear Ratio: 90:1

Timing: 2:1

Brake Torque @ 100 psi/6.9 bar: 400 ft-lbs



SPINDLE B / ROTARY:

Max Speed: 60 °/sec

Max Torque: 210 ft-lbs

Runout Max: 0.0005 in

Backlash: 30 arc-sec

Gear Ratio: 90:1

Timing: 2:1

Brake Torque @ 100 psi/6.9 bar: 200 ft-lbs



INDEXING A / TILT:

Max Rotation/Step: ± 120°

Resolution: 0.001°

Accuracy (±) : ± 15 arc-sec

Repeatability: 10 arc-sec



INDEXING B / TILT:

Max Rotation/Step (with rotary control): 999.999°

Resolution: 0.001°

Repeatability: 10 arc-sec



Air Requirements: 150 psi

Axis Diameter: 8.0
B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
