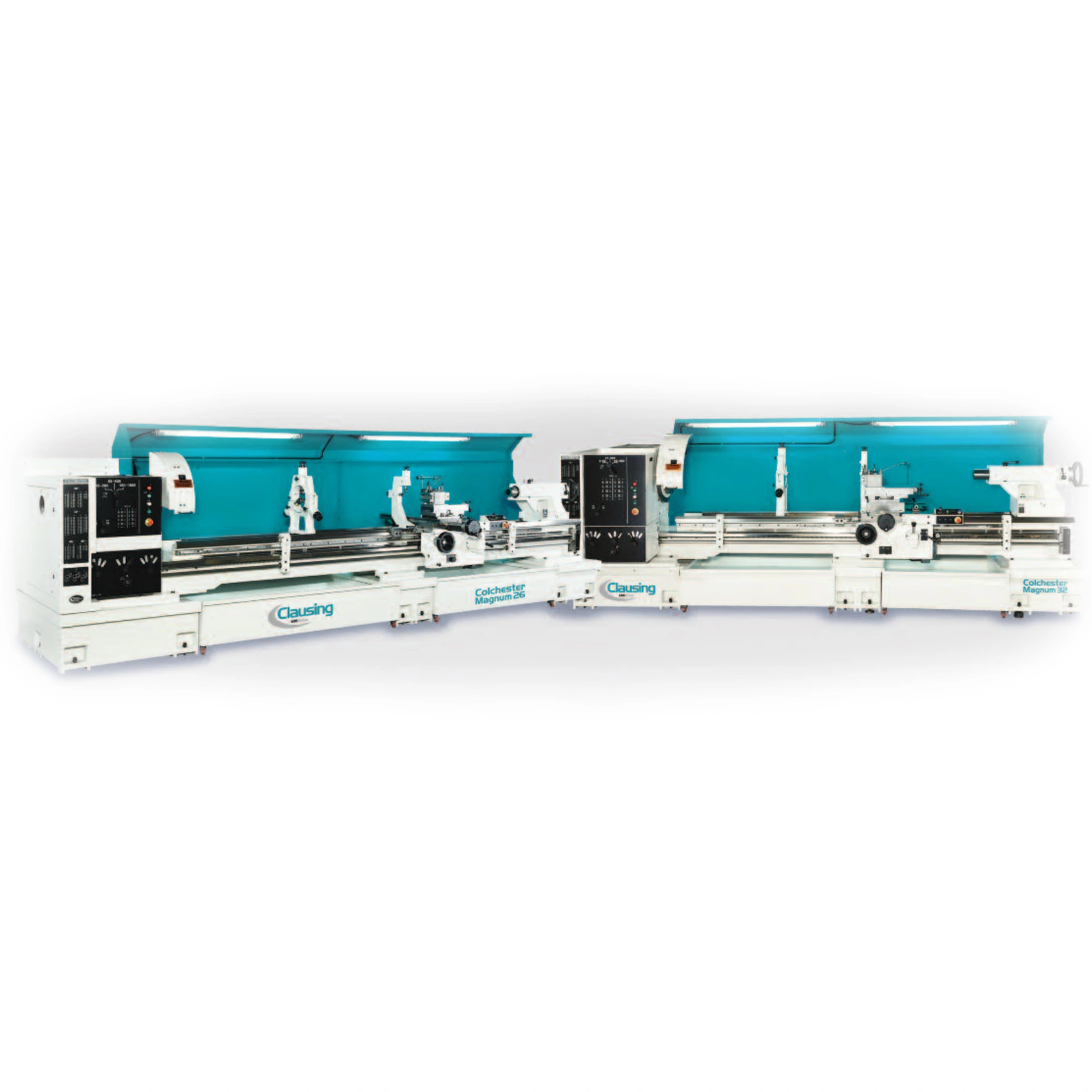

NEW CLAUSING MAGNUM' 26"

Capacity
Height of Center 46.65" (1185mm)
Swing Over Bed 26.3" (670mm)
Swing in Gap 35.8" (910mm)
Width in Front of Gap 9.44" (240mm)
Swing Over Cross Slide 16.9" (430mm)
Bedway Width 18.9" (480mm) 18.9" (480mm)

Cross/Top Slide
Travel of Cross Slide 16" (406mm)
Width of Cross Slide 11" (280mm)
Travel of Top Slide 6.5" (165mm)
Width of Top Slide 7" (180mm)

Tailstock
Quill Travel 12" (300mm)
Quill Diameter 4.125" (105mm)
Quill Taper 6MT

Feeds and Threading
Longitudinal Feed Range (in) (mm) 0.002-0.16 in/rev .05-3.2mm/rev
Cross Feed Range (in) (mm) 0.001-0.08in/rev .025-1.6mm/rev
Number of Inch Pitches Range of Inch Pitches 51 2-84 tpi
Number of Metric Pitches Range of Metric Pitches 59 0.2-14mm
Number of Diametral Pitches Range of Diametral Pitches 27 8-72
Number of Module Pitches Range of Module Pitches 20 0.2-3.5

Motor
Spindle Motor 30 hp (20kw)
