USED 2024 FIVES LANDIS GARDNER VDD760G3
Overview
Specifications
Type: Vertical Double Disc Grinder 760MM
Contents:
1.) NEW VDD-760G3 Double Disc Grinder Cell:

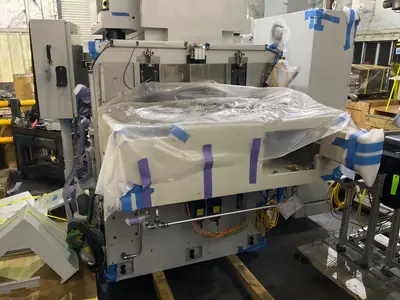

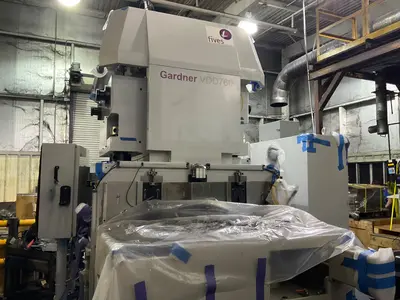

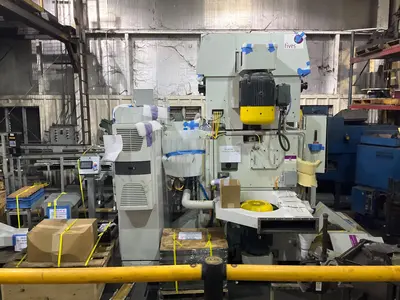

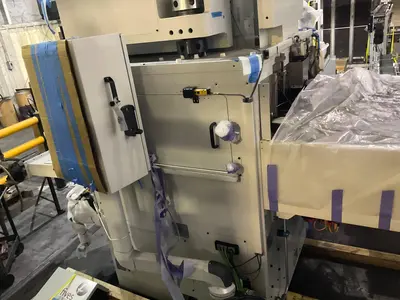

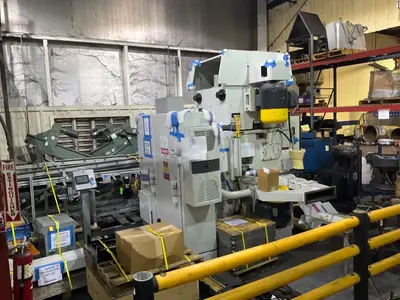

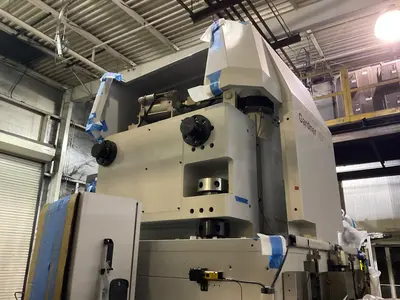

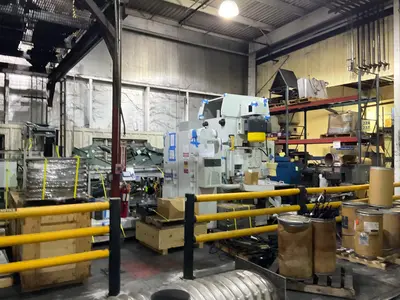

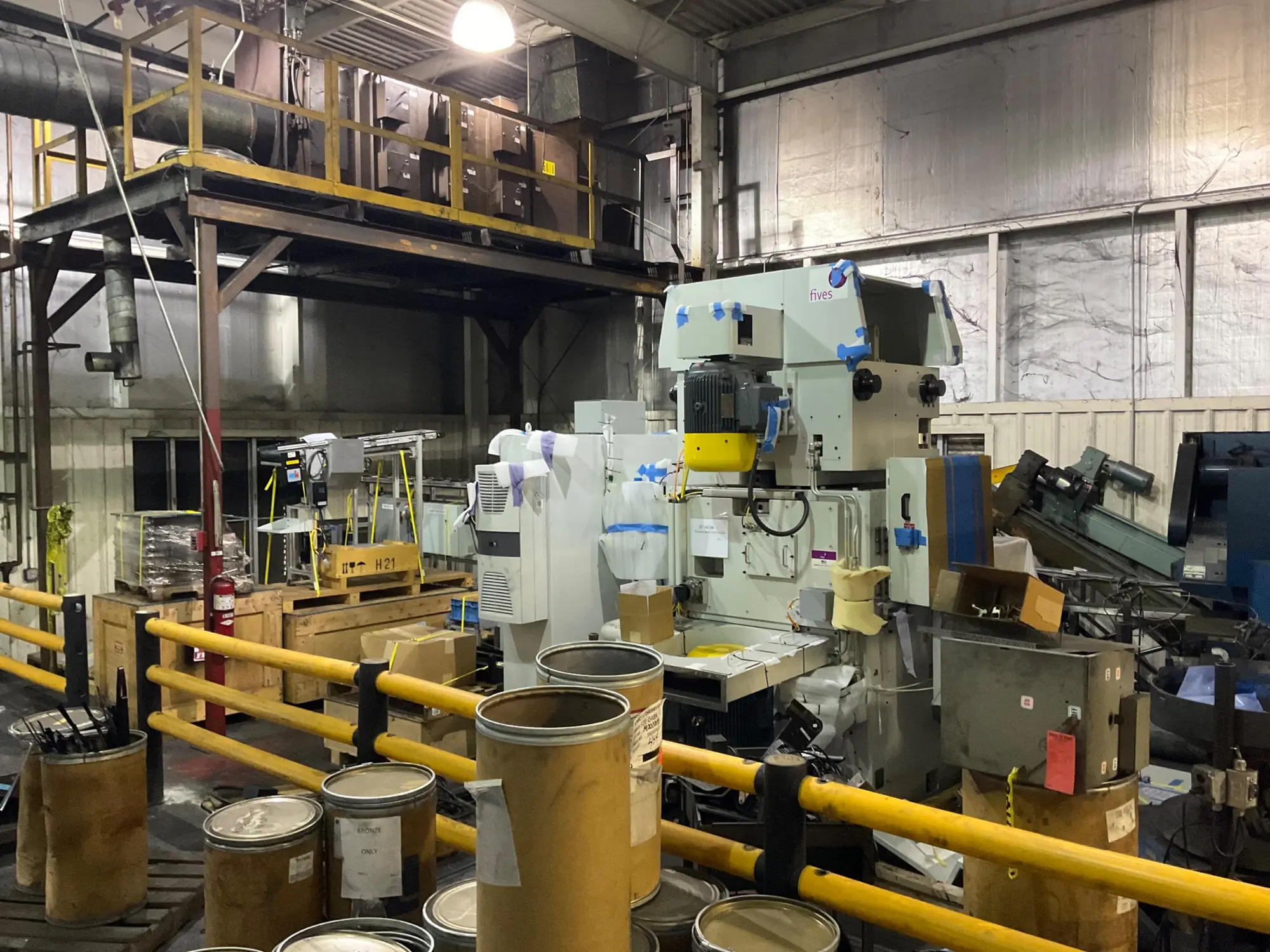

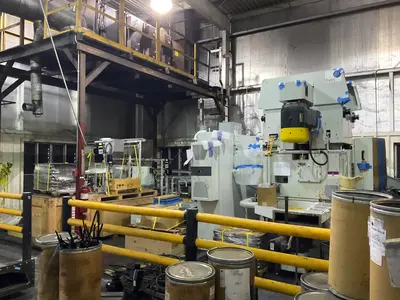

a. VDD-760G3 Double Disc Grinder

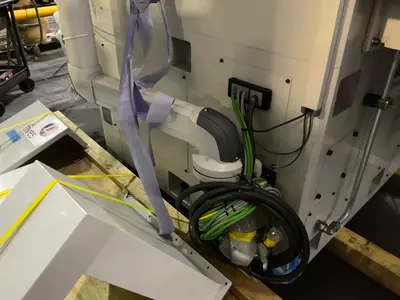

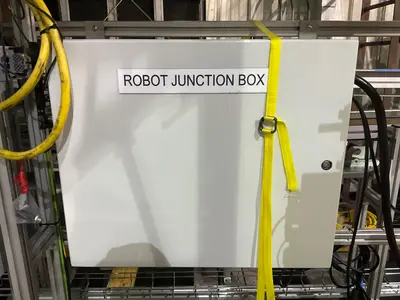

b. Load / Unload Robot
c. Post-Process Gage Linked to Grinder for Automatic Adjustment

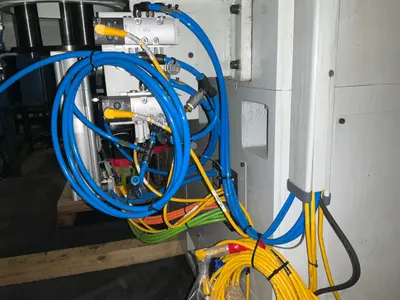

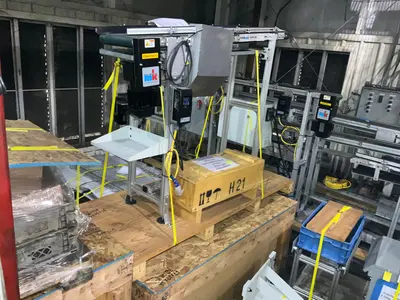

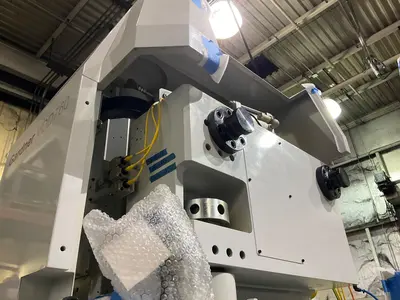

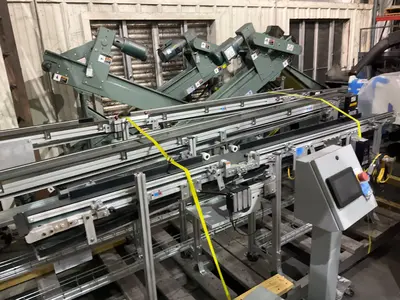

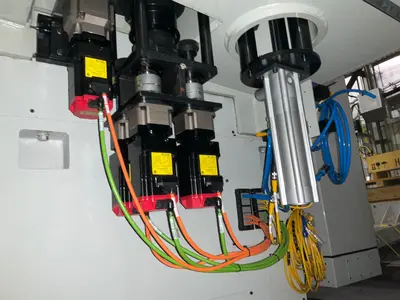

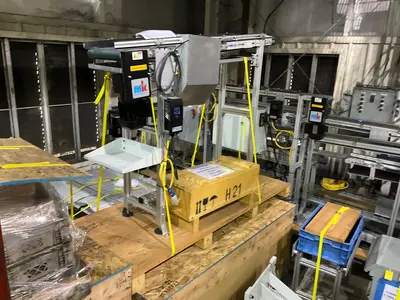

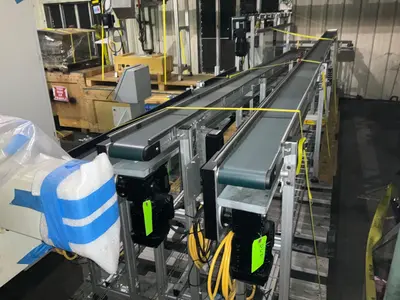

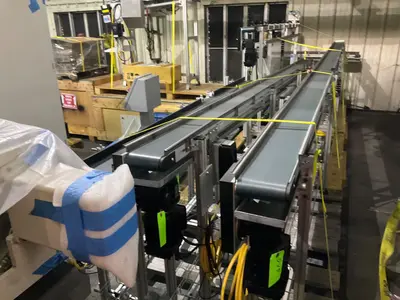

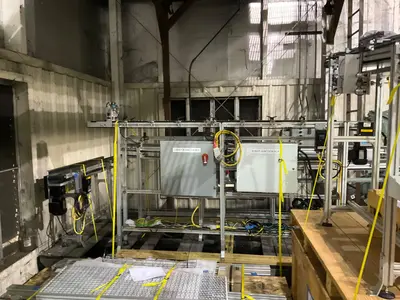

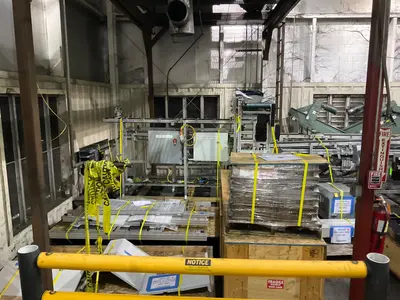

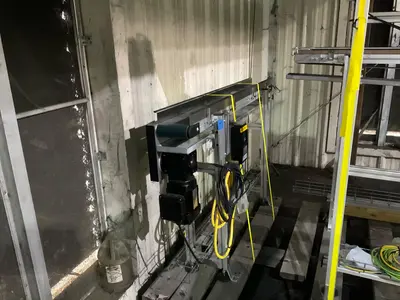

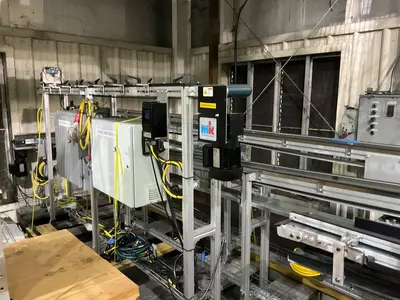

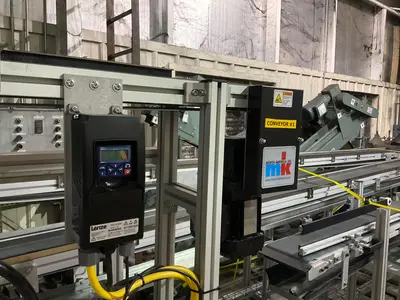

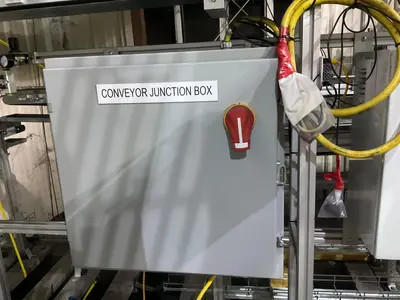

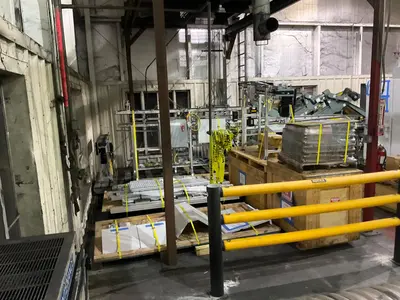

2.) Conveyor System
a. Infeed and Outfeed Conveyors for Double Disc Cell

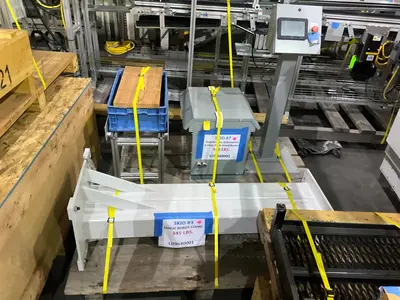

b. QC / Load/Unload Station
c. Bypass Conveyor around Centerless Cell
d. Infeed and Outfeed Conveyors for Centerless Cell
e. Outfeed Conveyor from Centerless Cell
f. QC / Load/Unload Station
g. Drip Pans under Conveyors
h. Interlocked Safety Fencing Around Double Disc Cell
i. Interlocked Safety Fencing Around Centerless Cell
Wheel Size: 760 mm x 190 mm x 5 mm

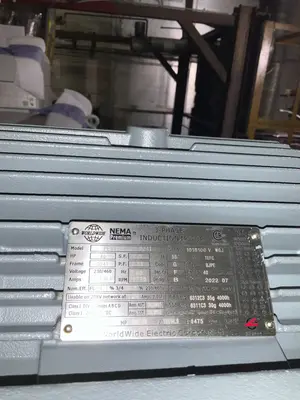

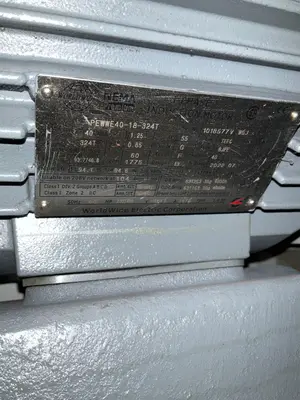

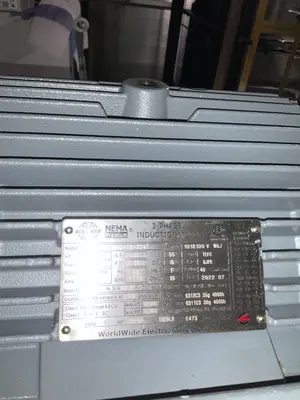

Power: 40 hp TEFC premium efficient spindle motor with variable frequency drive
Speed: Adjustable, driven by multiple vee belt and spline drive
Grinding Cycle:
30mm part: Approx. 2.1 seconds per part
44mm part: Approx. 4.4 seconds per part
68mm part: Approx. 7.0 seconds per part
83mm part: Approx. 7.5 seconds per part
Fixturing: Servo powered rotary carrier index fixture with 3 index plates (3 independent rotary pockets)
Work Support: Supported via G3 fixture pocket and carrier plates
Wheel Dressing: Rotary diamond dressing motor on a heavy-duty cast-iron arm
Cooling System: Water-soluble coolant (Hocut 795), 60 GPM flow at 50 PSI, 30-micron filtration
Machine Control: Fanuc 35i machine controller
Lubrication: Automatic lubrication to linear rails and ball screw thrust bearings
Noise Level: 80 dB(A)

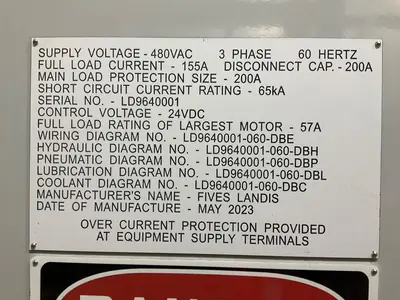

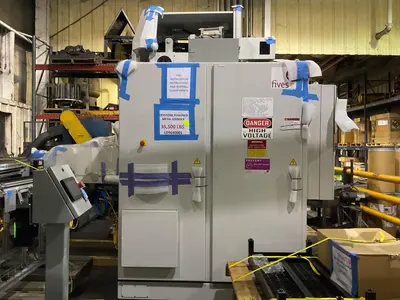

Electrical Supply:
Voltage: 480V
Phase: 3
Frequency: 60 Hz
Full Load Current: 155A
Disconnect Capacity: 200A
Short Circuit Current Rating: 65KA
Control Voltage: 24VDC
Full Load Rating of Largest Motor: 57A
Foundation Requirements: Stable floor capable of supporting 250 lbs/in², avoid shock loading areas
Additional Features:
Safety enclosures with sensor doors and signal tower
Operator controls with manual and remote control options
Integrated wheel balancing system
Heavy-duty, motorized wheel change jib crane mounted on base
Coolant flushing system and discharge from the side of the bed
Demonstration:
Dry Cycle: 8-hour test run
Part Run: 1-hour with 30-piece continuous sample (Cpk 1.33)
