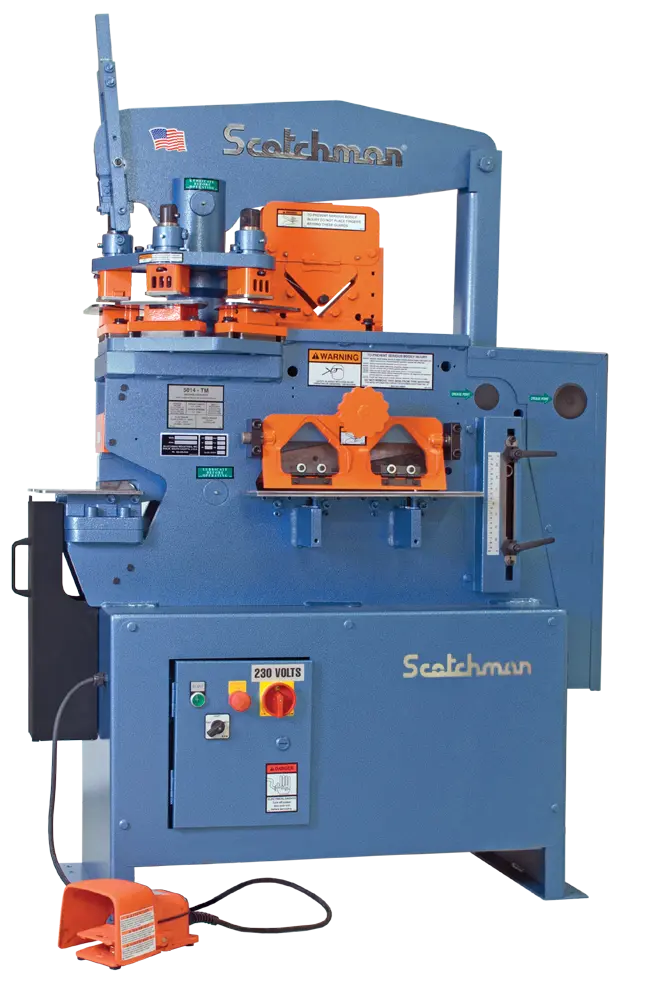

NEW SCOTCHMAN 5014 ET

Scotchman Component Tool Ironworkers are the most versatile and dependable punching, shearing, and notching ironworkers available today. Scotchman's unique component tool design will accept a large range of standard tools including press brakes, channel shears, rod shears, tube shears and pipe notchers. The tool table can also be used as a power source that will allow our customers to build their own tooling for all of their fabricating needs. Models available from 45 to 120 ton.

Punching Capacity
50 ton                       45 mt
1-1/4" in 1/2"               32 mm in 12 mm
13/16" in 3/4"              20 mm in 19 mm

Special Tooling
2-1/4" Max. Dia.      57 mm Max. Dia.

Throat Depth
4"                      102 mm
Flat Bar Shear
14" Length                   356 mm
3/4" x 4"                    19 mm x 102 mm
1/2" x 8"                    12 mm x 203 mm
3/8" x 10"                   10 mm x 254 mm
1/4" x 14"              6 mm x 356 mm

Saber Blade (optional)
1/2" x 10"                   12 mm x 254 mm
3/8" x 12"              10 mm x 305 mm

Angle Shear 90 degree
4" x 4" x 3/8"              102 mm x 102 mm x 10 mm

Angle Shear 45 degree
2" x 2" x 1/4"              51 mm x 51 mm x 6 mm

Brake 8"
25 ton                      23 mt

Brake 12"
25 ton                      23 mt
Open End Brake
Max. 1/4" x 3"
[Flat or Angle Iron]      6 mm x 76 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
2-1/2" x 3" x 5/16"          63 mm x 76 mm x 8 mm
2-1/2" x 2-3/4" x 3/8"      63 mm x 70 mm x 10 mm

90 degree V-Notcher
6" x 6" x 1/8"               152 mm x 152 mm x 3 mm
3" x 3" x 1/4"              76 mm x 76 mm x 6 mm

Unistrut Shear
Samples Required

Rod Shear
Round (max.)
5 Cavity - 1/4" to 1"        6 mm to 25 mm
Square (max.)
1 Cavity - 1/4" to 3/4"      6 mm to 19 mm

Square Tube Shear
1/2" to 1"                   12 mm to 25 mm
12 gauge              0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"              12 mm, 19 mm, 25 mm
16 gauge              0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"              51 mm x 10 mm

Strokes per Minute
in Light Material
34 spm [Punch Station]      1/4" stroke

Strokes per Minute
in Heavy Material
14 spm [Punch Station]      3/4" stroke

Hydraulics
2,350 psi              162 bar

Motor Standard
3 hp
208/230/460,
380/575v; 3 ph              2.24 kW

Motor Optional
5 hp
220v, 1 ph              3.73 kW

Dimensions
L: 48-1/4"                   L: 122.5 cm
W: 23-1/2"                   W: 60 cm
H: 70-1/4"              H: 178.5 cm

Shipping Weight
(may vary)
1,640 lbs              744 kg
