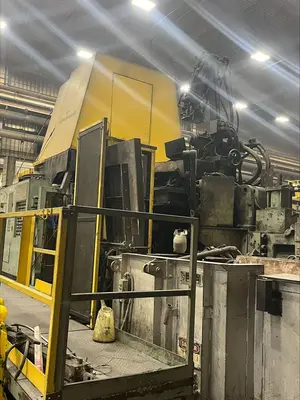

2005 TOSHIBA 800 TON HIGH PRESSURE DIE CAST LINE
Overview
Specifications

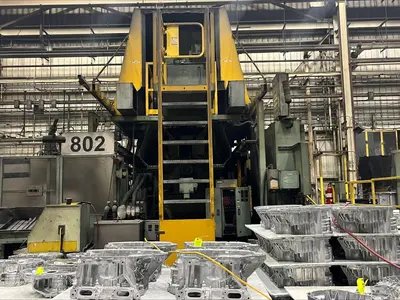

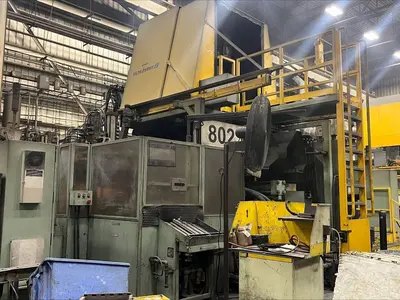

The Toshiba 802 Die Cast Machine is a high-pressure die casting machine used for producing metal parts by forcing molten metal into a mold cavity under high pressure. This particular model is a cold chamber die casting machine, which is typically used for casting metals with high melting points, such as aluminum and magnesium.
Toshiba 802 Die Cast Machine2:
Rated Tonnage: 800 metric tons
Platen Dimensions: 55.12 x 55.12 inches (1400 x 1400 mm)
Space Between Tie Bars: 36.6 x 36.6 inches (930 x 930 mm)
Tie Bar Diameter: 7.09 inches (180 mm)
Die Stroke: 29.9 inches (760 mm)
Die Thickness (min. - max.): 15.75 - 37.4 inches (400 - 950 mm)
Injection Force: 67.24 - 26.46 tons (61 - 24 tons)
Motor Size: 60.3 HP (45 kW)
Machine Weight: 43 tons (39 tons)
The machine is equipped with various automated features, such as an automatic ladle, die sprayer, and parts extractor, making it suitable for high-volume production
This line includes:

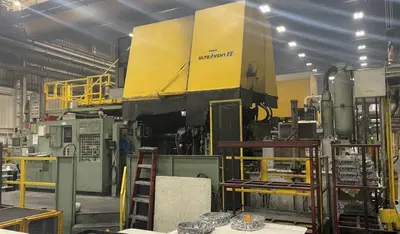

1. 2017 KMA ULTRA VENT II 8000 Smoke Containment Hood
2. 2005 Schaefer Group HTM14-0365 800 Ton 2 VB DCM Furnace

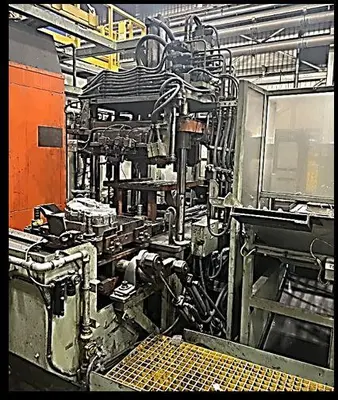

3. 2005 Toshiba DC800J-MS Trim Press

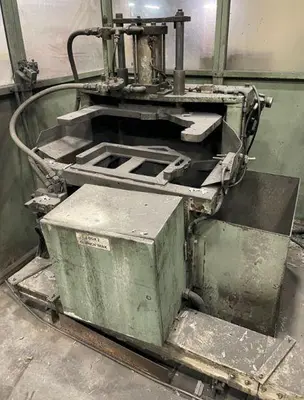

4. NOTA Overflow Cutter by Shibaura Machine Company America
