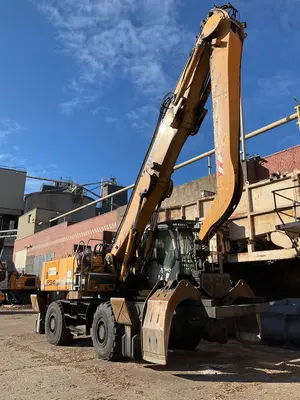

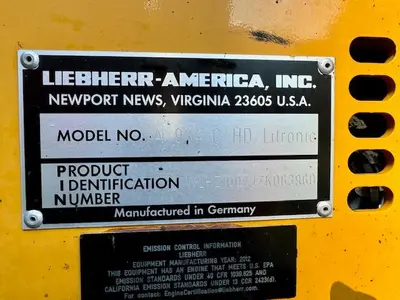

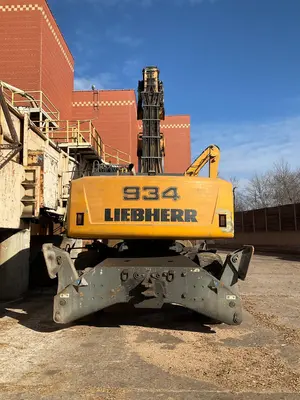

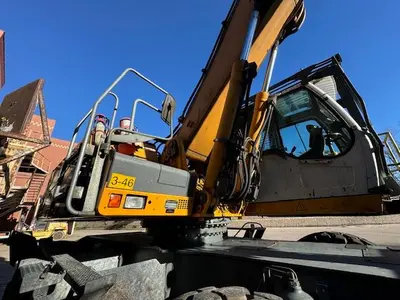

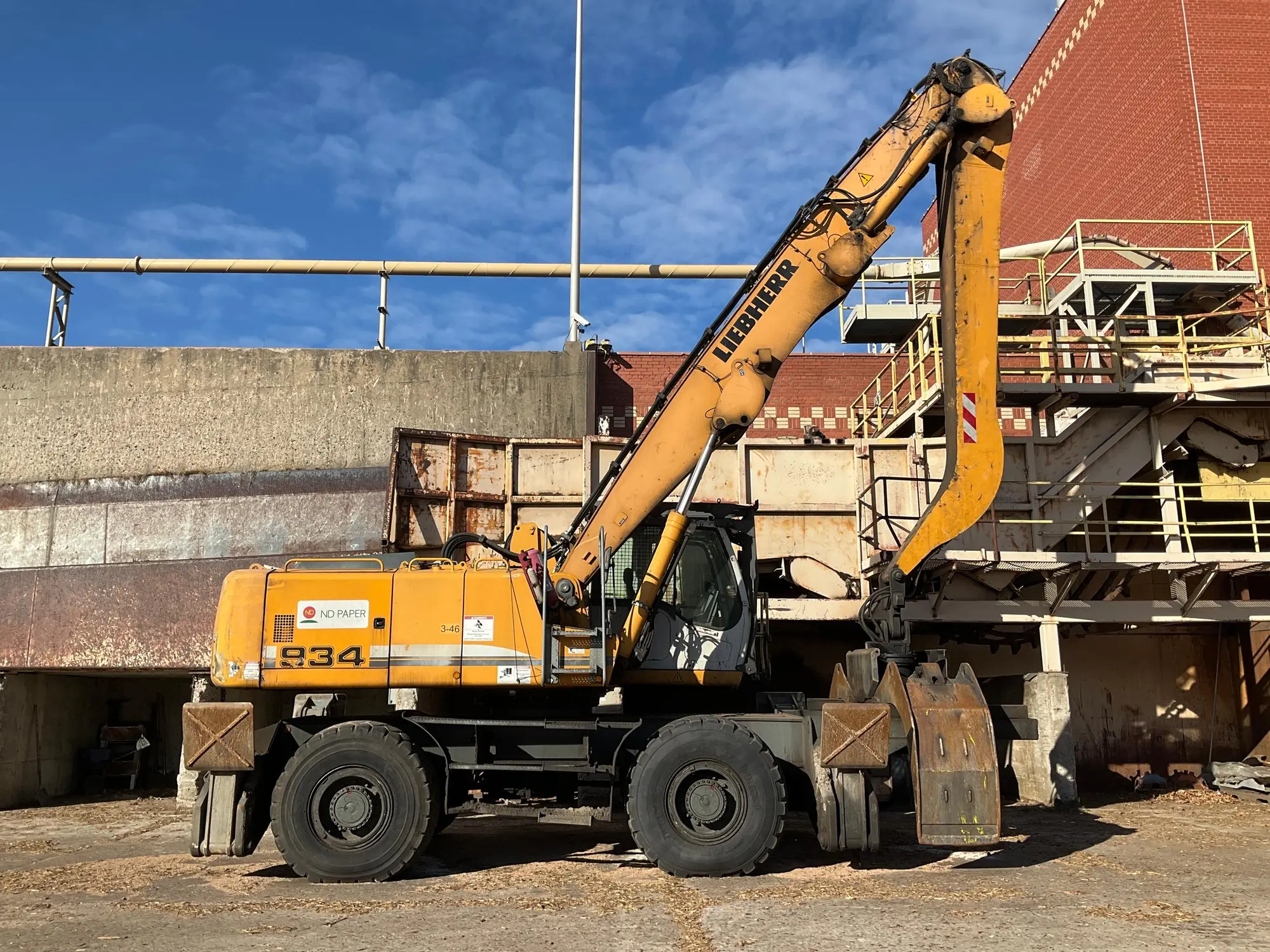

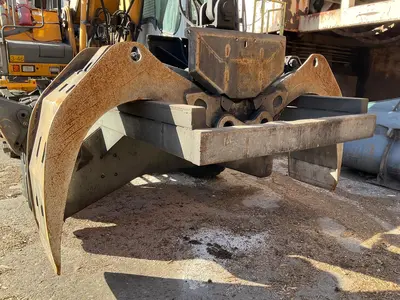

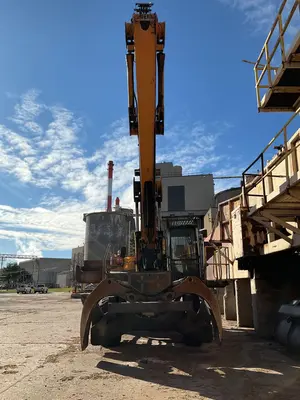

USED 2012 LIEBHERR A934CHD LITRONIC

ENGINE MODEL
D 934 L
ENGINE POWER (HP)
204

(OPTION 1) MAX CUTTING HEIGHT (FT)
47.3
(OPTION 1) MAX DIGGING DEPTH (FT)
7.6
(OPTION 1) MAX LOADING HEIGHT (FT)
47.3
(OPTION 1) MAX REACH ALONG GROUND (FT)
39.4

(OPTION 2) MAX CUTTING HEIGHT (FT)
50.9
(OPTION 2) MAX DIGGING DEPTH (FT)
10.9
(OPTION 2) MAX LOADING HEIGHT (FT)
50.9
(OPTION 2) MAX REACH ALONG GROUND (FT)
42.7

TECHNICAL SPECIFICATIONS:

- BOOM/STICK OPTION 1: 7.6 M BOOM / 5 M STICK
- MAX DEPTH: 7.6 FT
- MAX HEIGHT: 47.3 FT
- MAX REACH ALONG GROUND: 39.4 FT

- BOOM/STICK OPTION 2: 7.6 M BOOM / 6 M STICK
- MAX DEPTH: 10.9 FT
- MAX HEIGHT: 50.9 FT
- MAX REACH ALONG GROUND: 42.7 FT

- BOOM/STICK OPTION 3: 7.6 M BOOM / 5 M STICK AND GRAPPLE MODEL 70 C
- MAX DEPTH: 16.8 FT
- MAX HEIGHT: 40.1 FT
- MAX REACH ALONG GROUND: 44.3 FT

- GROUND CLEARANCE: 1.3 FT
- SHIPPING HEIGHT: 11.9 FT
- SHIPPING LENGTH: 37.1 FT
- UNDERCARRIAGE WIDTH: 10.5 FT
- UPPER STRUCTURE CLEARANCE: 5.5 FT
- ENGINE MODEL: D 934 L
- ASPIRATION: TURBOCHARGED AND AFTER-COOLED REDUCED EMISSIONS
- DISPLACEMENT: 427.2 CU IN
- GROSS POWER: 204 HP
- PUMP CAPACITY: 64.8 GPM
- PUMP TYPE: 2 X LIEBHERR VARIABLE FLOW, SWASH PLATE PUMPS
- ALTERNATOR SUPPLIED AMPERAGE: 80 AMPS
- FUEL CAPACITY: 153.3 GAL
- HYDRAULIC SYSTEM FLUID CAPACITY: 155.9 GAL
- OPERATING VOLTAGE: 24 VOLTS
- OPERATING WEIGHT W/O ATTACHMENT: 90,100 LBS
- SWING SPEED: 8.2 RPM
- MAX SPEED: 11.2 MPH

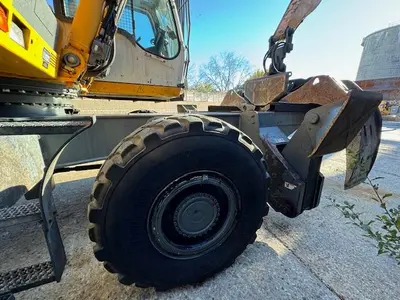

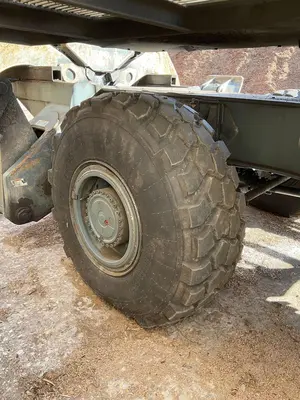

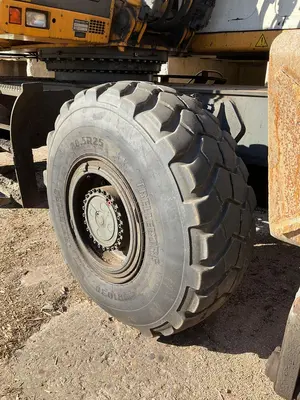

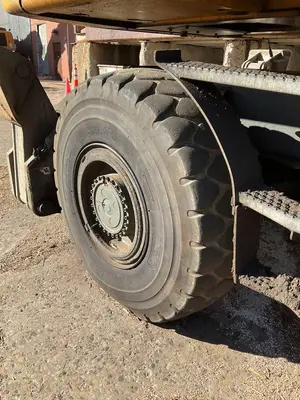

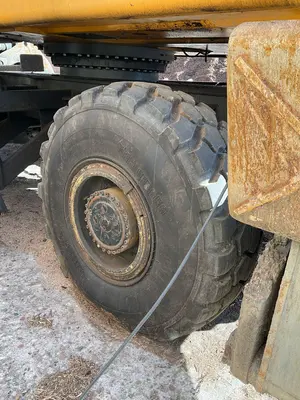

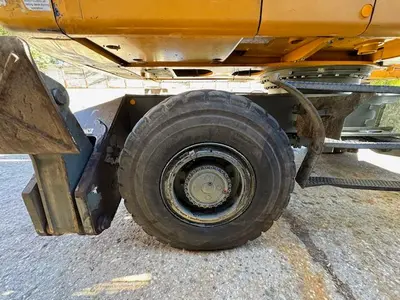

- TIRE SIZE: 20.5-25
- WHEELBASE: 10.5 FT
- WIDTH W/ STABILIZERS ON GROUND: 17.3 FT
