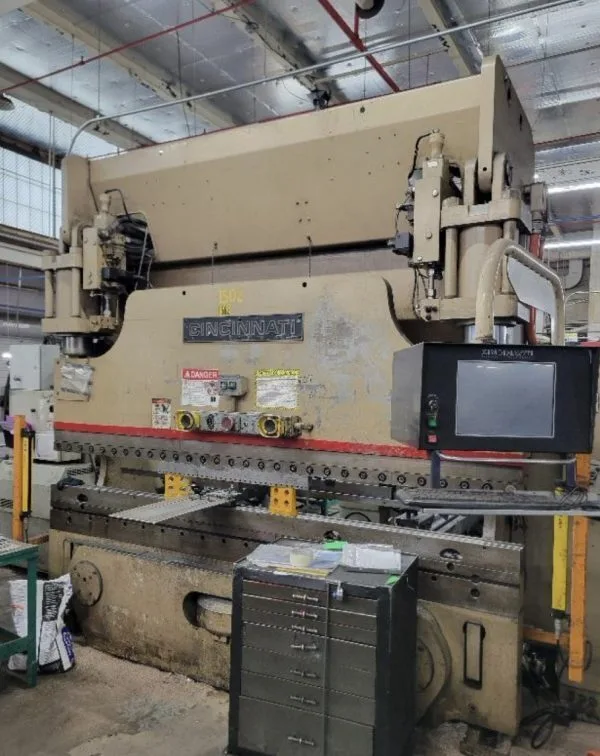

CINCINNATI Autoform hydraulic press, 1989 model in used condition. Ideal for precise and efficient forming operations. Optimize your production line with this well-crafted equipment.
| Tonnage | 175 T | 158.758 t |
| Stroke | 10" | 254 mm |
| Daylight | 17" | 431.8 mm |
| Power | 25 hp | 18.6 kW |
| Bed W | 78.75" | 2,000.2 mm |
| Bed L | 96" | 2,438.4 mm |
| IPM | 0 | 0 |
| Control | CNC | CNC |
| Weight | 19500 lb | 19500 lb |
Rated Tonnage: 175 Ton
Tonnage at Full Forming Speed: 190 Ton
Bed & Ram Length (OAL): 8 feet (96″)
Distance Between Housings: 6′ 6¾” (78.75″)
Max Bending Capacity: 6′ 3″ × 3⁄8″ mild steel
Stroke Length: 10″
Open Height: 17″
Closed Height: 7″
Throat Depth: 8″
Ram Speeds — Approach: 260 IPM
Ram Speeds — Forming: 1–65 IPM
Ram Speeds — Return: 1–290 IPM
Hydraulic Drive Motor: 25 HP
Estimated Weight: 19,500 lb
Control: AutoForm CNC
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
