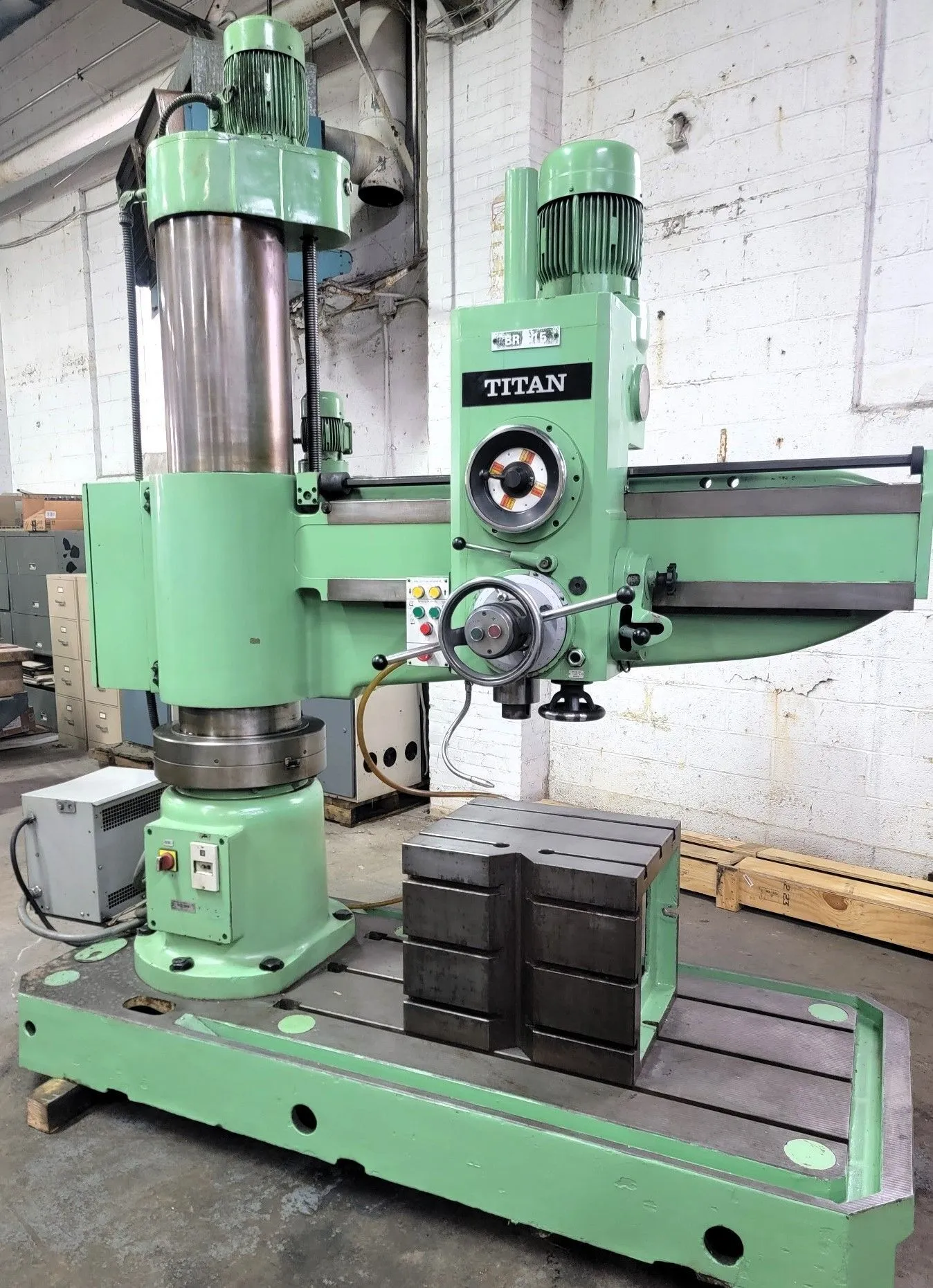

USED TITAN BR615

48" SPINDLE CENTER TO COLUMN FACE 13" DIAMETER COLUMN TITAN RADIAL DRILL
EXCELLENT CONDITION, NO SCORING ON COLUMN OR ARM
56" FROM SPINDLE FACE TO BASE
7.5HP WIRED 220VOLT 3 PHASE
NO 5 MORSE TAPER SPINDLE
SPINDLE DIAMETER 85MM / 3.45 IN.
DRILL CAPACITY 60MM = 2 3/8" IN STEEL, 77MM =3 " CAST
FEED RATES .0071 TO .0394
18 SPINDLE SPEEDS 50 TO 1600 RPM
POWER CLAMPING ON HEAD AND ARM
POWER ELEVATION
COOLANT SYSTEM WITH NOZZEL
PARTS MANUAL
OVERALL SIZE 113" H X 36" W X 108" L (CAN REMOVE ELEVATION MOTOR FOR SHIPPING -12")
APPROX. 8,500 LBS
