USED TORRINGTON 1047 - 2 DIE ROTARY SWAGER (14493)
Overview
TORRINGTON MODEL 1047 2 DIE ROTARY SWAGER, TUBING CAPACITY 3.5" DIAMETER AND SOLID CAPACITY 1.375" DIAMETER Stock # 14493
Specs
(Used) Torrington Model 1047 2 Die Rotary Swager
Stock # 14493
SPECIFICATIONS
-MANUFACTURER: TORRINGTON
-MODEL: 1047
-TYPE: 2 DIE ROTARY
-CAPACITY
-TUBING: 3 1/2" (88.9mm)
-SOLID: 1 3/8" (34.92mm)
-DIE SIZE
-WIDTH: 4 1/2" (114.3mm)
-HEIGHT: 3.110" (79mm)
-LENGTH: 7" (177.8mm)
-MOTOR: 20 HP (14.9kw)
-VOLTAGE: 220
-BORE THRU MACHINE: 3.625" (92.075mm)
-FLOOR SPACE: 70" (1778mm) X 70" (1778mm)
-APPROXIMATE WEIGHT: 9,700 LBS
MACHINE INCLUDES:
-BODY
-FLYWHEEL AND FLYWHEEL GUARD
-SPINDLE
-MOTOR AND CONTROL PANEL
-BELTS
-DOOR
MACHINE DOES NOT INCLUDE:
-ROLL CAGE AND ROLLERS
-TOOLING AND HAMMERS
-FEED TABLE
* NOTE: MACHINE WAS FULLY OPERATIONAL WHEN TAKEN OUT OF SERVICE IN 2024
AND PLACED IN STORAGE

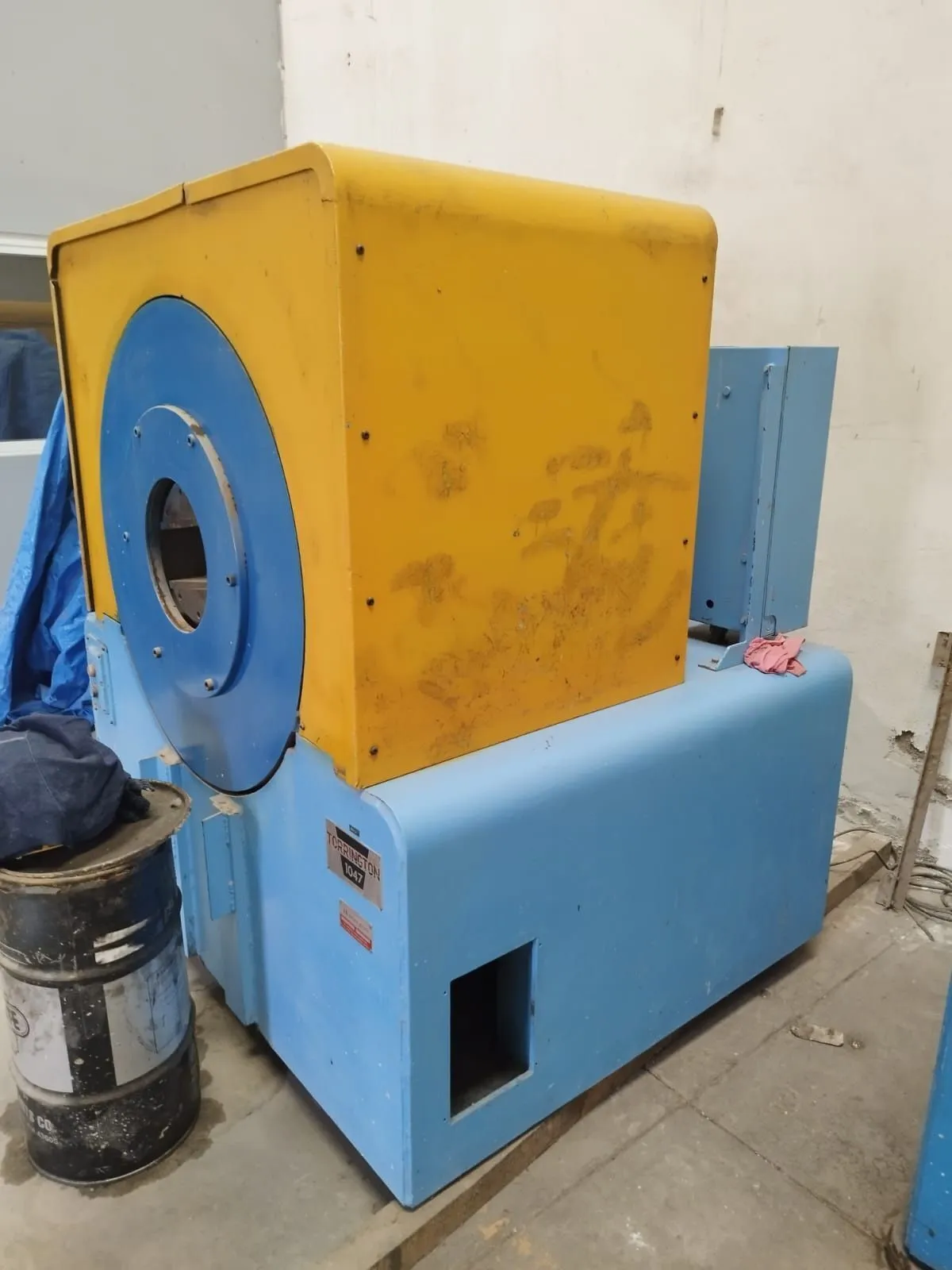

**NOTE: In photos this is the swager with no tooling. Where
two swagers are shown this is the one to the left.**
***Please Note Catalogue Specifications Subject to Verification***
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
