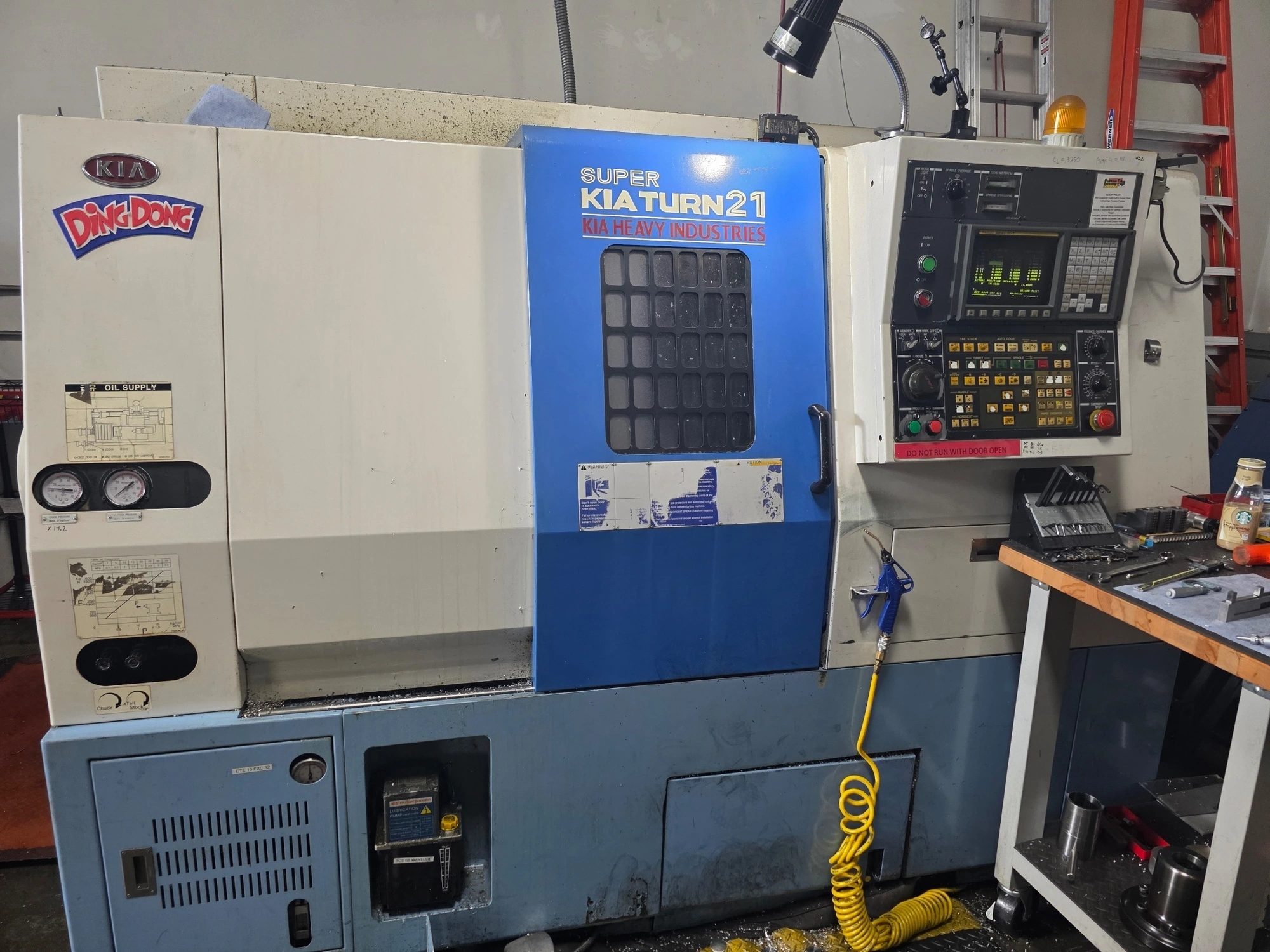

USED 1997 KIA SUPER KIATURN 21
Overview
Description
Kia CNC Lathe ready to be put to use.
Located at our warehouse in Preston, Idaho
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
Specifications
| Swing | 21.65" | 549.91 mm |
|---|---|---|
| Machining Length | 16.14" | 409.96 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
Turning length: ~435 mm
Max turning diameter: ~254 mm
Over bed diameter: ~550 mm
Over cross slide: ~350 mm (Ø above transversing slide)
X-axis travel: ~210 mm
Z-axis travel: ~330 mm
Spindle speed: 4,000 rpm
Spindle motor power: ~18.5 kW
Turret: 1 turret, 12 tools
Control: Fanuc 0i-TB
Tailstock / Bar feeder: Not included (no)
Machine footprint: ~2,370 × 1,700 × 1,765 mm
Weight: ~3,900 kg
