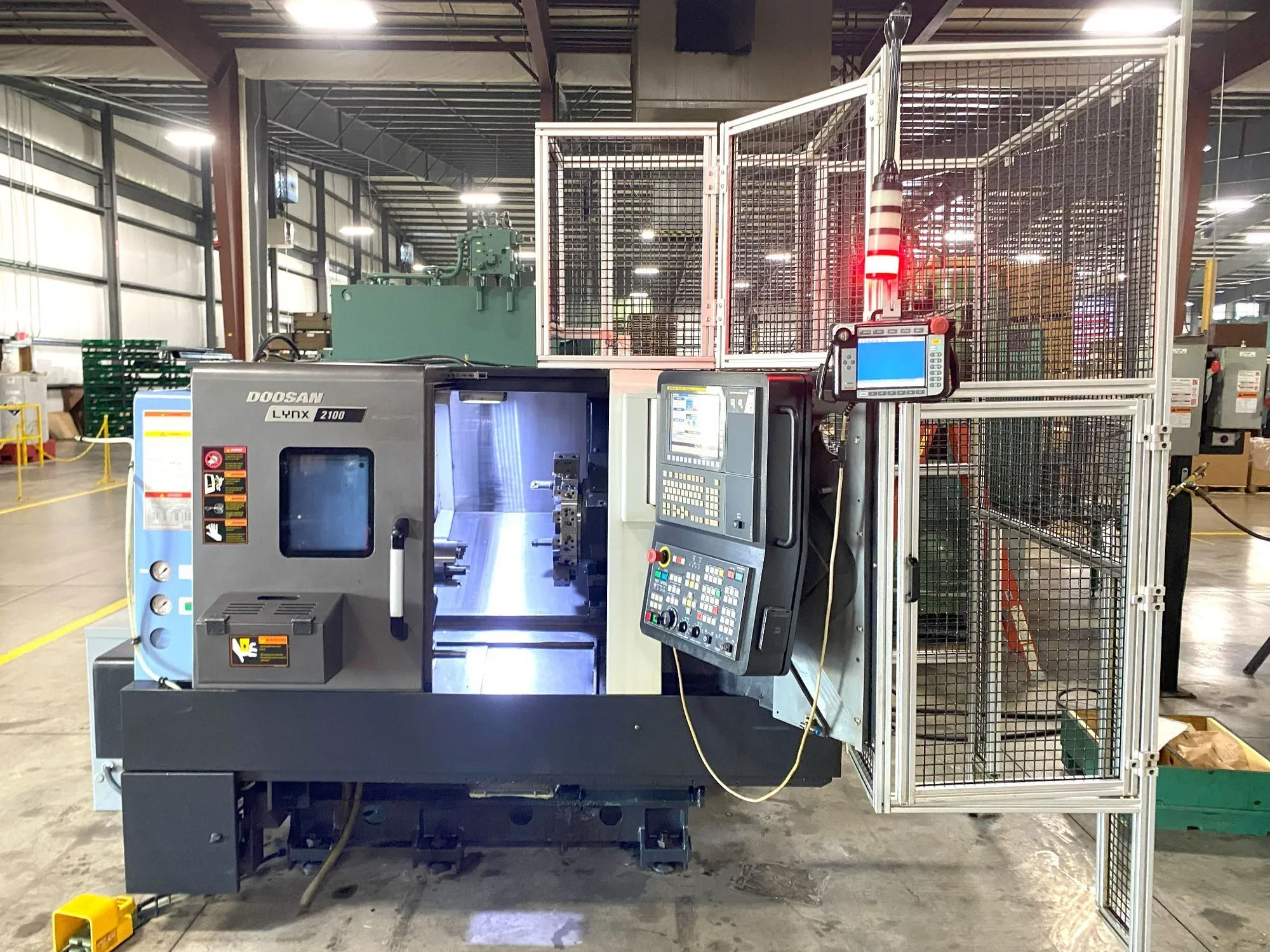

4,083 Cutting Hours, Built-in Denso RC8 6-Axis Robot Loader, 1,000 PSI Chip Blaster, Chip Conveyor. Installed in 2017, this clean originally owned 2016 Doosan Lynx 2100A 2-axis cnc lathe also includes tool presetter, parts catcher, and mist blaster. Must see video.
| MAX SWING | 23" | 584.2 mm |
| MAX CUTTING DIAMETER | 13.8" | 350.52 mm |
| MAX CUTTING LENGTH | 13" | 330.2 mm |
| X-AXIS TRAVEL | 8.1" | 205.74 mm |
| Z-AXIS TRAVEL | 13.4" | 340.36 mm |
| CHUCK SIZE | 6" | 152.4 mm |
| BAR CAPACITY | 2" | 50.8 mm |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| RAPID TRAVERSE RATE X-AXIS | 1,181 in/min. | 2,999.7 cm/min. |
| RAPID TRAVERSE RATE Z-AXIS | 1,181 in/min. | 2,999.7 cm/min. |
| TURRET POSITIONS | 12 | 12 |
FANUC i-SERIES CNC TOUCH SCREEN CONTROL
BUILT-IN DENSO RC8 6-AXIS ROBOT LOADER (2016)
6" KITAGAWA PUB206 3-JAW OPEN CENTER PULL LOCK CHUCK
TOOL PRESETTER
PARTS CATCHER
CHIP BLASTER (1,000 PSI)
COOLANT SYSTEM
LNS TURBO HB CHIP CONVEYOR
MIST BLASTER
ROBOT CAGE
EMERSON HEVI-DUTY TRANSFORMER
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY MILD STEEL
** MACHINE MANUFACTURED DATE: AUGUST, 2016
** MACHINE INSTALLATION DATE: 2017
** HOURS AS OF AUGUST, 2025 - CUTTING TIME: 4,083
** IN PLANT, NEAR POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
