Long-time unmanned operation #40 horizontal MC

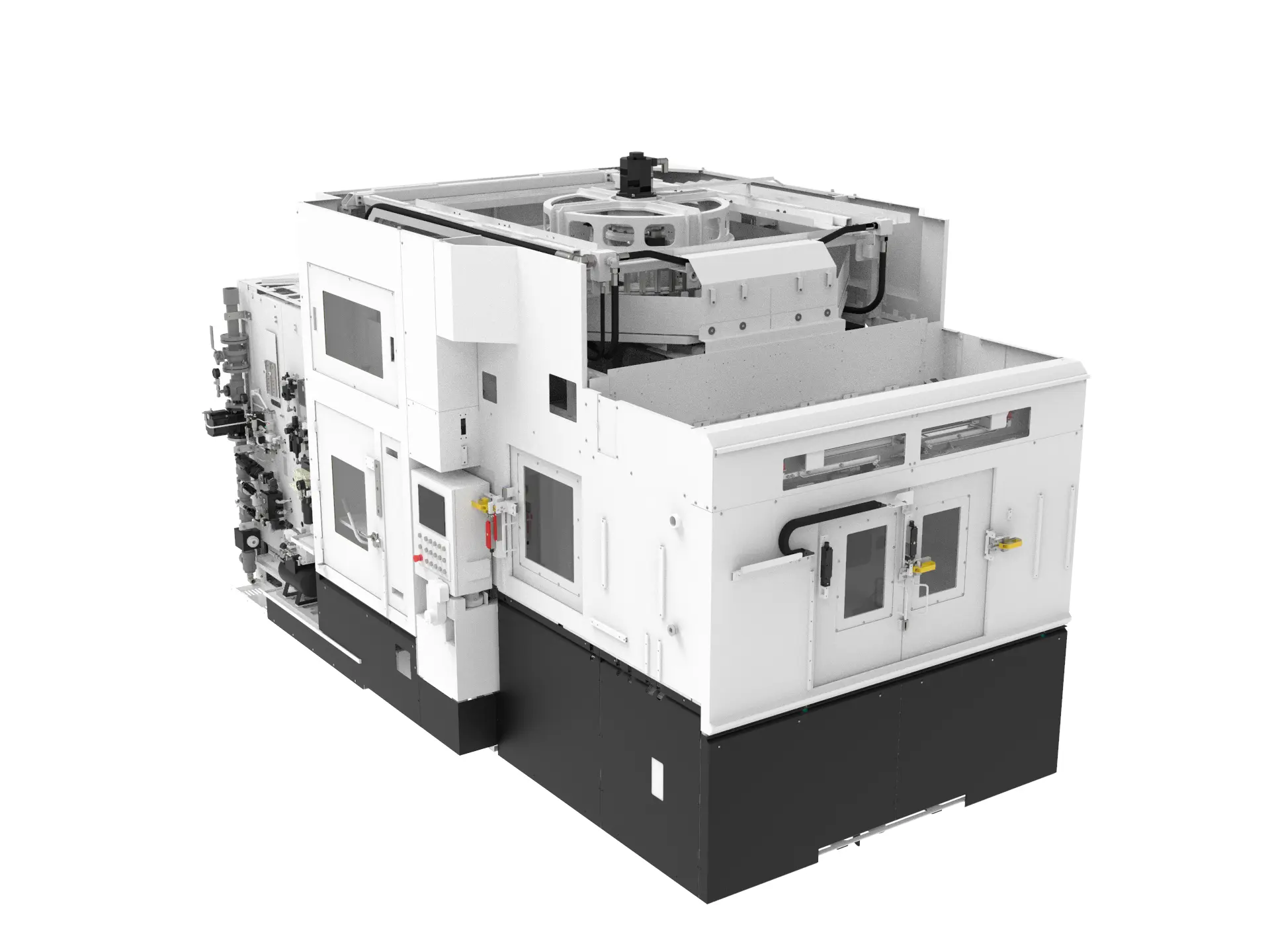

Flagship Machining Center "NX Series"
• In addition to high precision, high rigidity, and high reliability, the "NX series" machining centers have a structure that can cover the entire automation system, thus increasing productivity to the utmost limit.
Two types of spindle tapers #40 and #50 are available for the series.
Main features
Intelligent spindle spindle assembly
• Highly reliable spindle spindle, cultivated on 24-hour production lines in the automotive industry, is equipped with automatic monitoring devices. The high-precision sensing function that monitors the spindle cutting edge condition has a function to constantly monitor the spindle to prevent quality defects from flowing.
Class-leading static rigidity
• Rigidity analysis was performed to increase the loop-to-loop rigidity of the spindle spindle and jig, and the Z-axis in particular has a top-class static rigidity, supporting increased productivity through highly efficient machining.
Compatible with SMART-FTL automatic step change system
• The NX series has the functions and mechanisms required for a high utilization rate automatic changeover system, enabling sequential changeovers according to an automatic schedule and minimizing waste.
Line monitoring "Kom-mics" & cutting tool condition monitoring "Komtas" can be installed
• It enables monitoring of line operation status, processing load status, tool change timing, and various oil levels. The addition of this device will help visualize and reduce waste on the shop floor.
| X | 23.622" | 600 mm |
| Y | 23.622" | 600 mm |
| Z | 27.559" | 700 mm |
| Power | 14.8 hp | 11 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 39 | 39 |
| Taper | HSK-A63 Type | HSK-A63 Type |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | W3,000×D6,000×H3,200 mm | W3,000×D6,000×H3,200 mm |
| Weight | 23,000 Kg | 23,000 Kg |
Stroke X/Y/Z ......................... 600 / 600 / 700 mm
Spindle taper type ................... HSK-A63 Type
Spindle speed ........................ 100～12,000 min-1
Spindle motor ........................ 11 / 7.5 Kw
Fast forwarding speed ................ 60 m/min
Number of tools stored ............... 39 pcs
Max. tool length/Max. tool diameter .. 300 / 250 mm
Control unit ......................... FANUC Maker
Machine Size ......................... W3,000×D6,000×H3,200 mm
Machine mass ......................... 23,000 Kg
