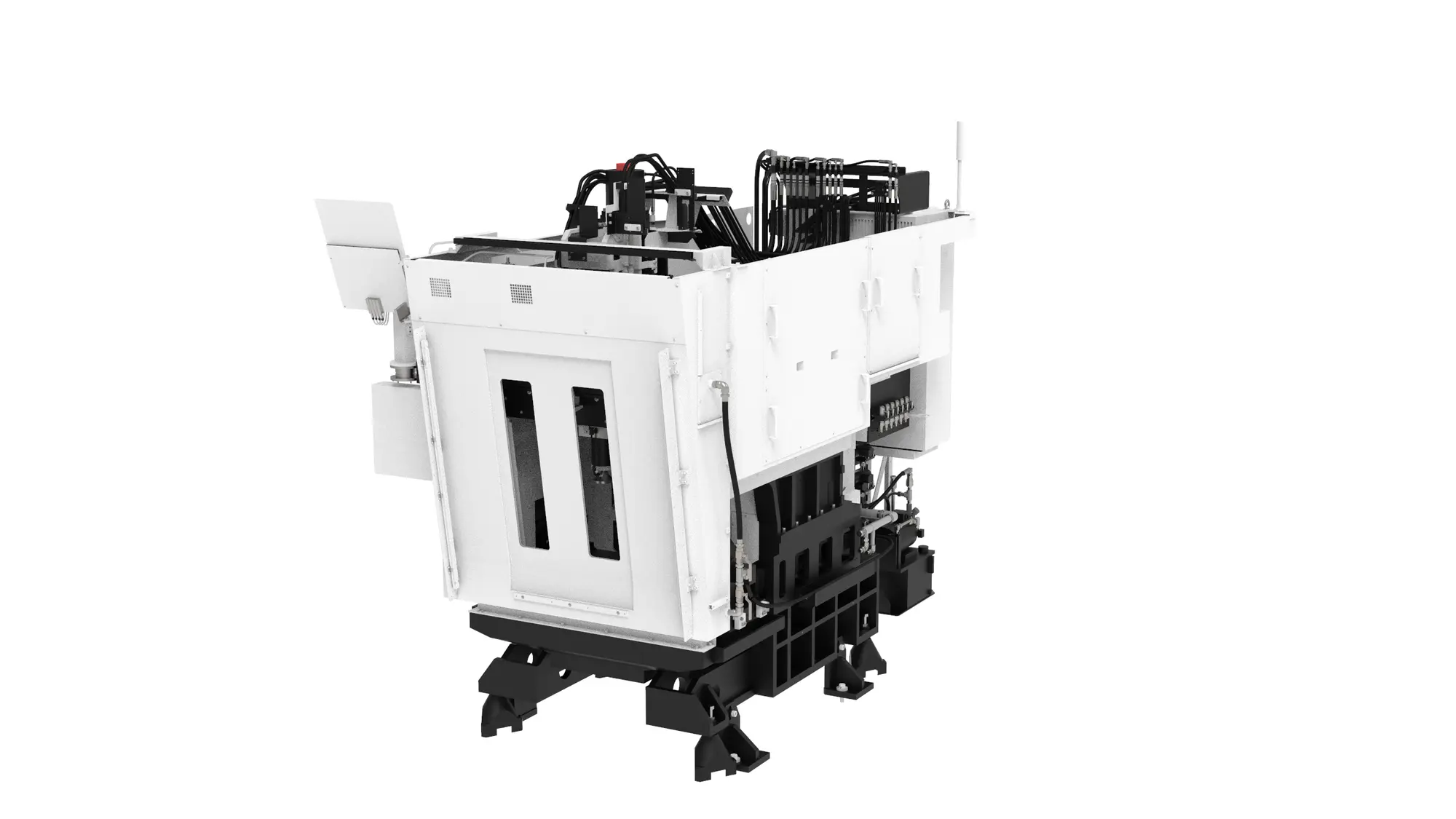

Case machining #30 vertical machining center
Best-selling machine for housing and case machining
• Developed exclusively for machining housings and cases, this #30 vertical machining center is built for 24-hour production line operation and is a highly reliable machine that NTC is proud of.
Main features and specifications
High precision & stability due to rigid flying box structure
• The axis drive unit is located above the machining area and has a flying box structure that evenly releases thermal expansion. The machine is highly rigid, with spindle rigidity equivalent to #40, enabling large-diameter tools to be used in a wide range of processes.
Compact machine with reduced machine width
• The machine width is reduced to 1600 mm with the column traverse type to reduce the line installation area. Compared to the table traverse type, the line width can be reduced by about 40%, leading to more efficient use of factory space. (% is a comparison with our machine)
High productivity and flexibility
A wide range of jig types and tables can be supported by fixing the jig position. • • • • Chips are collected directly under the jig to minimize accumulation. The tool change system uses a magazine direct change system to improve stability and productivity.
Automation support by line-oriented
• We can coordinate 4/5 axis tables, various automatic transporters, jig design and manufacturing, workpiece test processing, jig stockers, workpiece stockers, AGVs, deburring units, and various other lines.
| X | 19.69" | 500.13 mm |
| Y | 19.69" | 500.13 mm |
| Z | 15.75" | 400.05 mm |
| Power | 14.7 hp | 11 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 25 | 25 |
| Taper | BT30 | BT30 |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | W1,600×D3,130×H3,050 mm | W1,600×D3,130×H3,050 mm |
| Weight | 5,500 Kg | 5,500 Kg |
Stroke X/Y/Z .......................... 500 / 500 / 400 mm
Spindle taper type .................... BT-30 Type
Spindle speed ......................... 200～12,000 min-1
Spindle motor output .................. 11 / 7.5 Kw
Fast forwarding speed ................. 60 m/min
Number of tools stored ................ 25 pcs
Max. tool length/Max. tool diameter ... 300 / Φ150 mm
Control unit .......................... FANUC Maker
Machine size .......................... W1,600×D3,130×H3,050 mm
Machine mass .......................... 5,500 Kg
