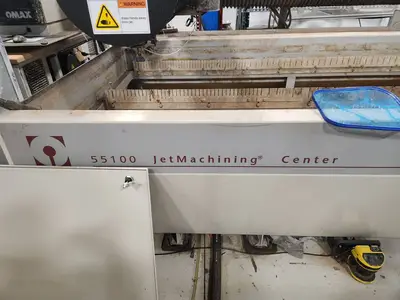

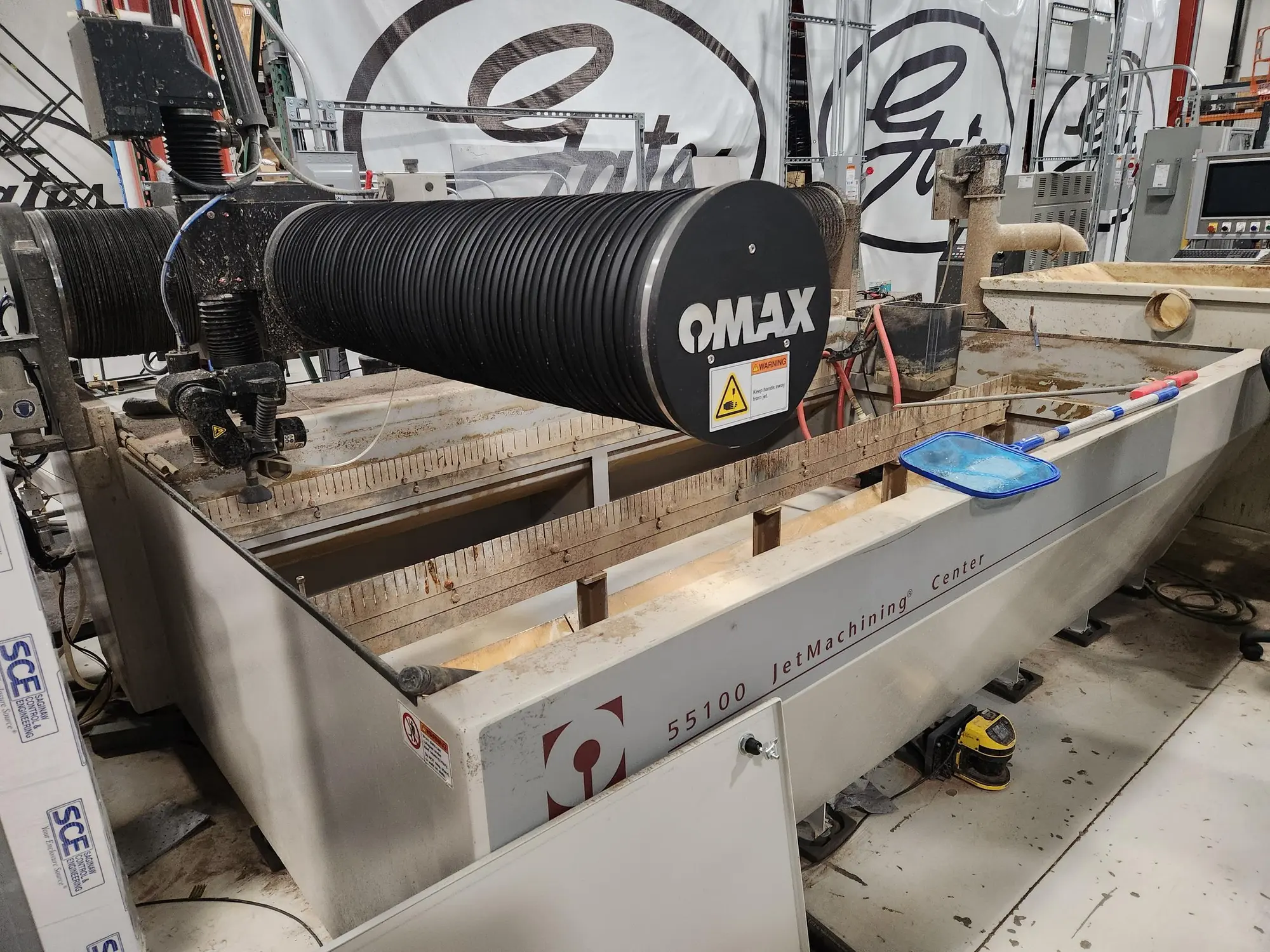

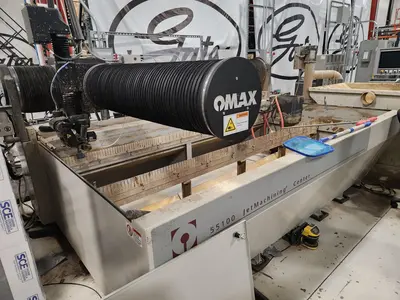

USED OMAX 55100

- MATERIAL SUPPORT SLATS 4" X 1/8" GALVANIZED STEEL
- CUTTING ENVELOPE: 2.54 M X 1.39 M (8’ 4” X 4’ 7”)
- MAXIMUM SUPPORTED MATERIAL LOAD 400 LBS/SQ FT (1,953 KG/SQ METER)
- ELECTRICAL REQUIREMENTS 3-PHASE, 380-480 VAC ±10%, 50-60 HZ
- NOISE LEVEL BELOW 80 DBA AT ONE METER FOR SUBMERGED CUTTING
- SPEED 180 IN/MIN (4.57 M/MIN)
- LINEAR AXIS ACCURACY* ±0.001” (±0.025 MM)
- LINEAR AXIS REPEATABILITY* ±0.001” (±0.025 MM)
- BALLBAR CIRCULARITY* ±0.0025” (±0.064 MM)
- NOZZLE TYPE: OMAX MAXJET 5I
- Z-AXIS: AUTOMATED HEIGHT CONTROL (MOTORIZED & PROGRAMMABLE)
- CUTTING METHOD: SUBMERGED CUTTING WITH AUTOMATIC WATER LEVEL ADJUSTMENT
- STANDARD OUTPUT PRESSURE: 60,000 PSI

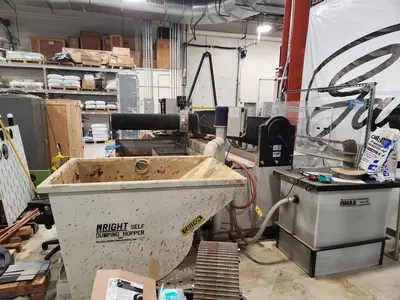

- STANDARD BULK ABRASIVE DELIVERY SYSTEM: 600 LB CAPACITY HOPPER THAT FEEDS GARNET INTO A “ZERO-DOWNTIME” HOPPER ON THE Z-AXIS
