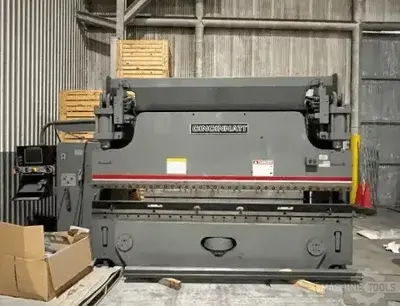

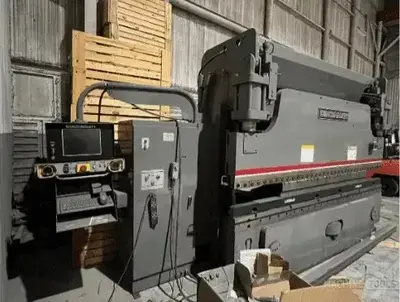

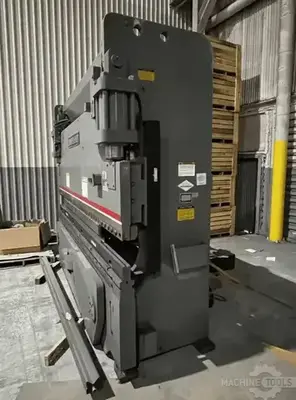

USED 1988 CINCINNATI INC 135AF-10
Overview
Description
135 Ton x 12' Hydraulic Press Brake
Specifications
| Tonnage | 135 T | 122.47 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 14' | 4.3 m |
| Between Housings | 126" | 3.2 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
Request a Quote
Add to Cart
Capacity: 135 Ton
Overall Length of Bed: 12'
Control: Gen 6 Cinci
Distance Between Housings: 126.5"
Stroke: 8"
Throat Depth: 12"
Open Height: 15"
Closed Height: 7"
Approach Speed: 290 IPM
Form Speed: 1 to 80 IPM
Return Speed: 1 to 270 IPM
Width at Top of Bed: 4.5"
Main Motor: 25 HP
Power Requirement: 460/3/60
Note: New Gen 6 Control Retrofitted in February 2025
24" 6-Axis Backgauge (X1/X2/Z1/Z2/R1/R2): Cylinder needs repair or replacement
LaserSafe Safety Curtains: Precision Ram Leveling With Dual Linear Glass Scale Encoders Off Load Center Compensation
3-Position Electric Foot Switch: Autocrown Deflection Compensation
Control Mounted Palm Button Station: Interlocked Construction
Presence Sensing Interface: Variable Volume Load Sensing Pump and Servo Hydraulic System
