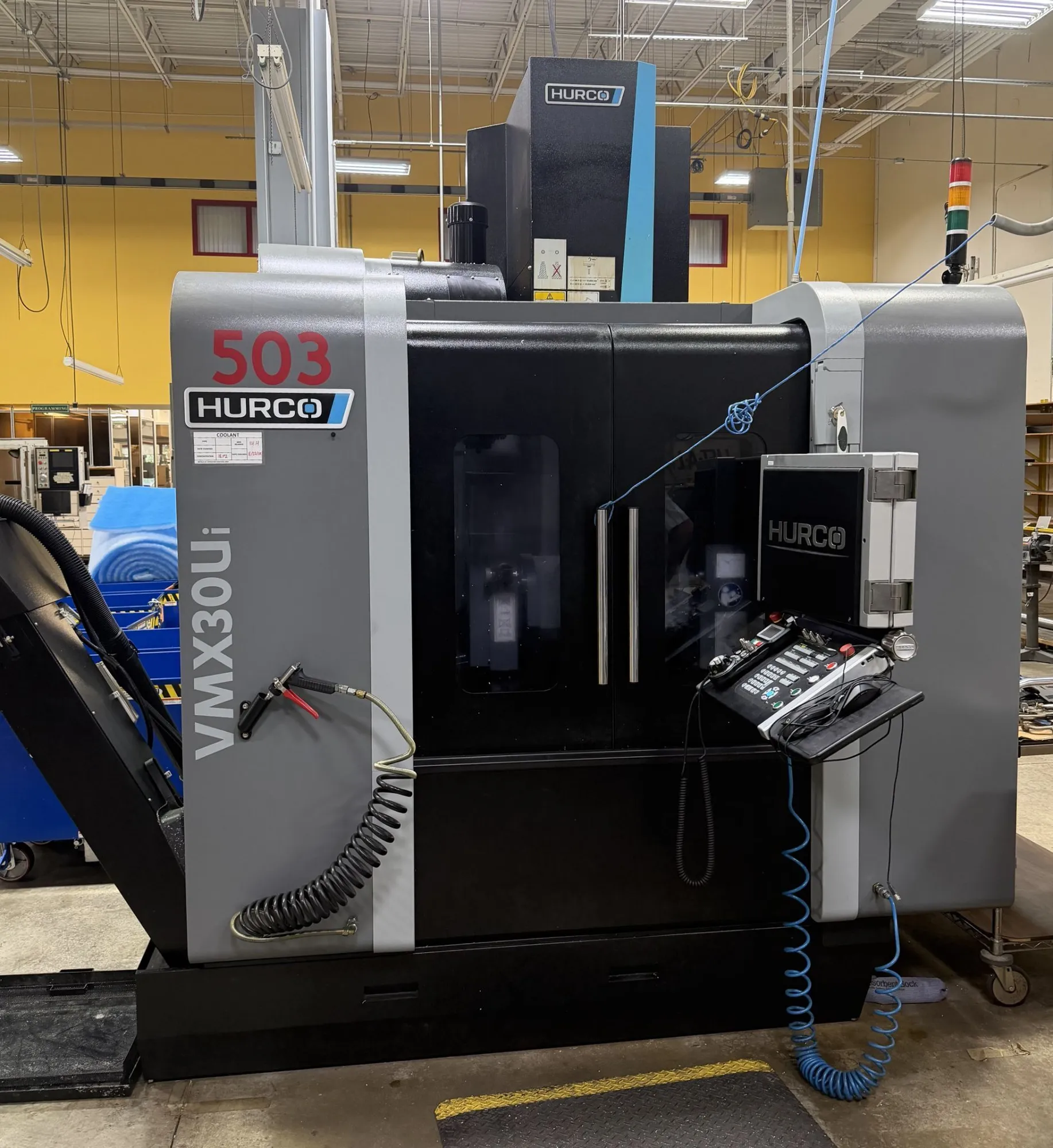

USED 2020 HURCO VMX30UI

2000 Spindle Hours, 5 Axis, 40 ATC Side Mount, High Pressure Coolant Through Spindle, (2) Available

Hurco VMX 30Ui 5 Axis Vertical Machining Center (2020)

MACHINE SPECIFICATIONS
TRAVELS & CAPACITY
X, Y, Z Axis Travel 30 x 20 x 20.5 in (762 x 508 x 520 mm)
A-Axis Travel +30°/-110°
Spindle Nose to Table (Min-Max) 3.5 in / 24 in (90 mm / 610 mm)
Table Diameter 9.8 in (248 mm)
Max. Weight on Table 440 lbs (200 kg)
T-Slot Size 6 x .48 in x 60° (6 x 12 mm x 60°)
Max. Spindle Speed 12000 rpm
Peak Spindle Motor 18 hp @600 rpm (13.4 kW @600 rpm)
Spindle Torque (peak - 1 min) 158 ft. lbs @ 600 rpm (214 Nm @ 600 rpm)
TOOL CHANGER
Tool Type CAT, BT, DIN 40
Number Of Tools 40
Max Tool Diameter 3.0 in (76 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb (7 kg)
FEEDRATES
Rapid Traverse X,Y,Z Axis 1496, 1496, 1260 in/min (38. 38, 32 m/min)
Max Programmable Feedrate 1260 in/min (32 m/min)
Rapid Traverse A, C Axis 25 rpm
SIZE
Max. Operating Floor Space 155 x 156 in (3,936 x 3,950 mm)
Machine Height 112.2 in (2,850 mm)
Machine Weight 11640 lbs (5280 kg)
ELECTRICAL
Power Rating/ Full Load KVA 27 KVA

High Pressure Coolant Through Spindle
DXF
2.5 Arc Second Encoders
Renishaw RMP 60Part Probe/RTS Tool Probe
X,Y,Z Glass Scales
5th Axis Trunnion
40 ATC Side Mount
Chip Conveyor
(2) Available
2000 Spindle Hours
