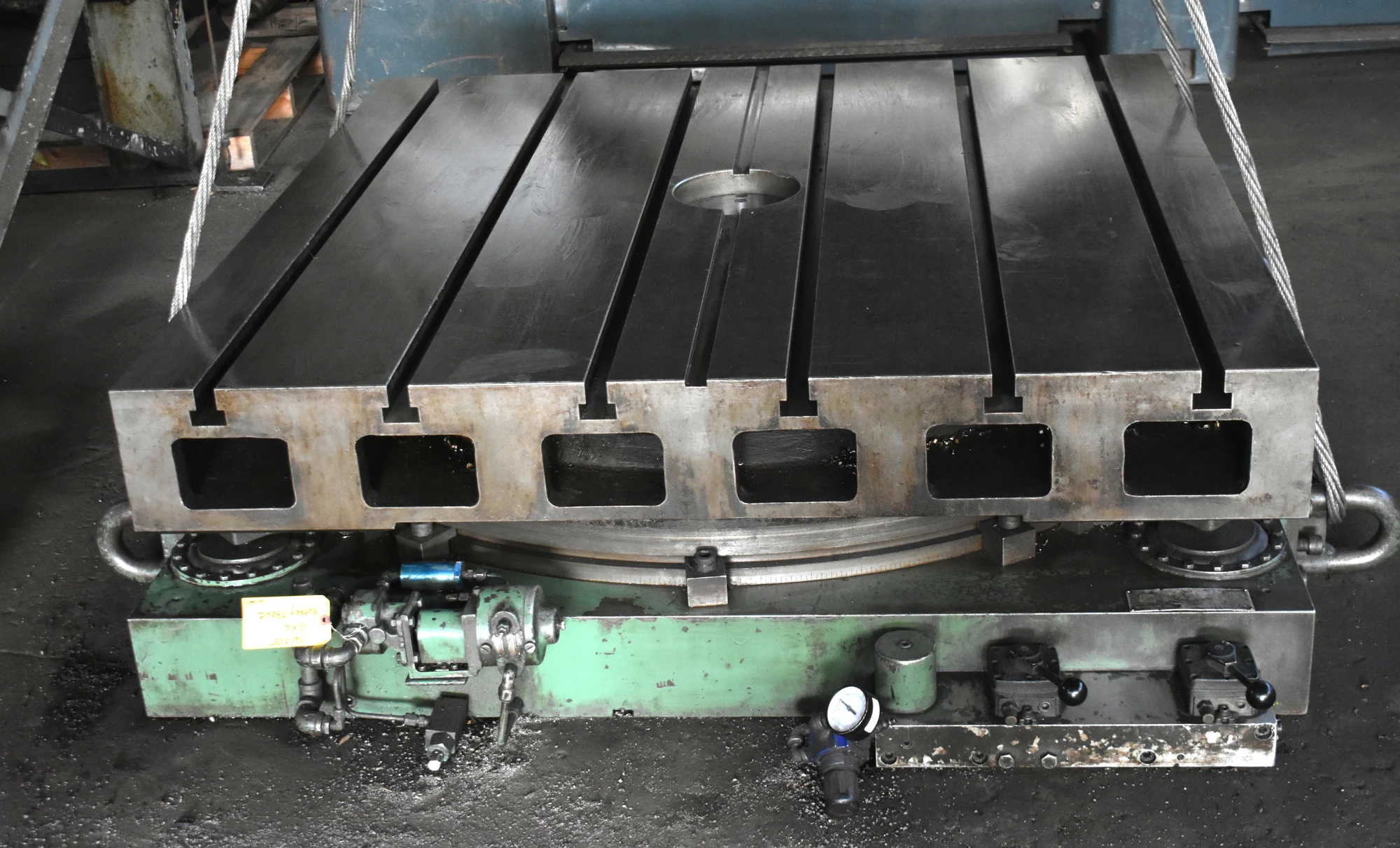

USED GIDDINGS & LEWIS HYDROSTATIC

60" X 60" GIDDINGS & LEWIS T-SLOTTED PNEUMATIC/OIL

"HYDROSTATIC" HEAVY-DUTY MANUAL ROTARY TABLE

SERIAL NO 040-1377-72, MODEL "HYDROSTATIC",

60" X 60" GIDDINGS & LEWIS T-SLOTTED PNEUMATIC/OIL
"HYDROSTATIC" HEAVY-DUTY MANUAL ROTARY TABLE
SERIAL NO 040-1377-72, MODEL "HYDROSTATIC",

EQUIPPED WITH:
MANUAL TABLE ROTATION (CLOCKWISE OR COUNTERCLOCKWISE)
(4) POSITION TABLE INDEXING (90-DEGREE INTERVALS)
w/AIR-POWERED SHOTPIN
AIR ACTUATED POWER CLAMPING
TWO LEVER REGULATING VALVE CONTROLS FOR RAISING &
LOWERING PLATEN, ACTUATING SHOP PIN, AND CLAMPING
TABLE
1/2 DEGREE INCREMENTS
Hydrostatic Unit With Oil Reservoir In Table Base

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 60" x 60"
Table Weight Load Capacity 30000 LBS
Base Size, D x W 60" x 66"
T-Slots Total, Number (6)
Overall Height, Floor to Table-Top 17.62"
Weight Approximately 9800 LBS

NOTE: This Hydrostatic Table Allows A Thin Layer Of Oil To Float The Platen
Enabling The Operator To Index Workpieces Manually With Minimum
Effort.
F.O.B. OUR WAREHOUSE
