Low Hour Chevalier FSG 2060ADII 3 Axis Hydraulic Surface Grinder for Sale.
| Table-W | 20" | 508 mm |
| Table-L | 60" | 1,524 mm |
| Horz/Vert | Horz | Horz |
| Power | 10 hp | 7.5 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
| size | 20" x 60" | 20" x 60" |

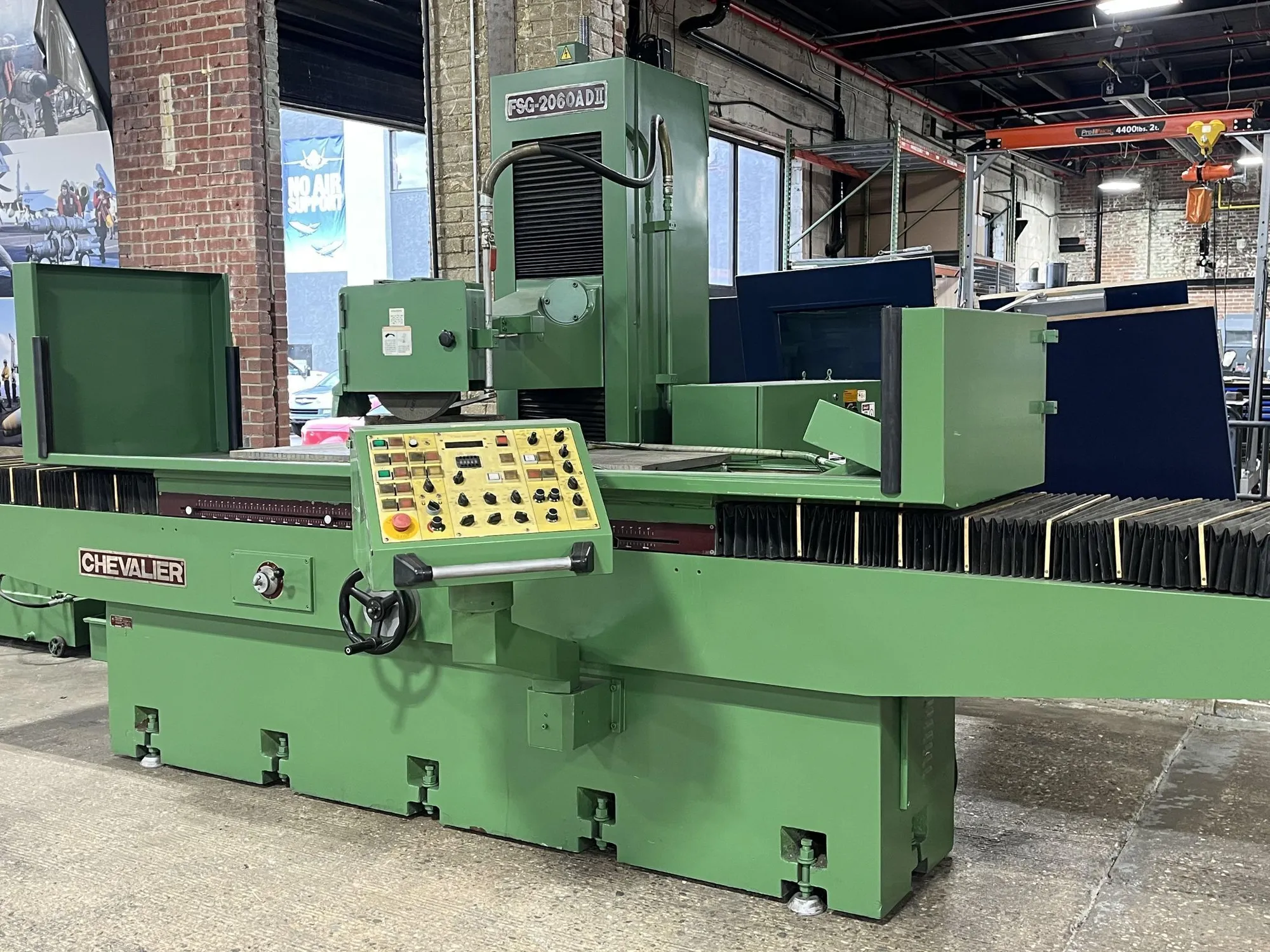

Chevalier FSG 2060ADII 3 Axis Hydraulic Surface Grinder (2001)
Table Size 19 5/8" x 59"
Cross Travel 19 5/8"
Max. Grinding Length 63
Max. Grinding Width 21.6
Max Z travel 22"
Max Dist Table to Spindle 28 5/8"
Table Speeds 16-82 FPM
Max. Load on Table 3100 lbs
19.625 x 59" Electro-Magnetic Chuck
Incremental Automatic Power Down Feed
Surface & Plunge Grinding Capable
Step Feed - CBN Dressing Cycles
Rough/Fine Settings on Vertical & Crossfeed
Coolant System w/ paper filter
Wired 480V
