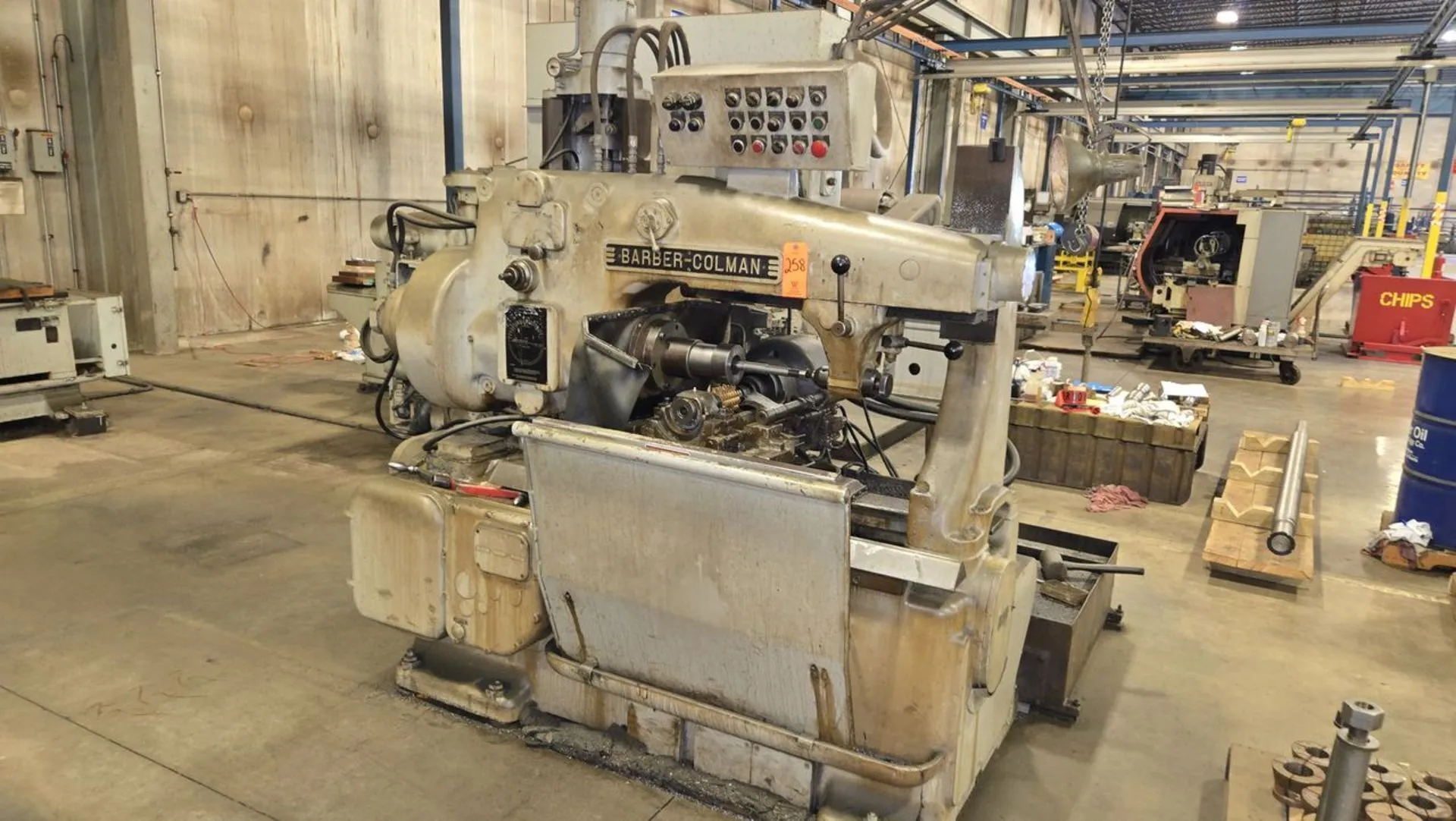

USED BARBER COLMAN 14-15
Overview
Description
Barber Colman model 14-15 , 14" diameter , x 15" cut length , differential , good condition , s/n 1315 located in IL. in plant w/ lots of tooling and gears!!!
Specifications
| Max Workpiece Diameter | 14" | 355.6 mm |
|---|---|---|
| Max Diametral Pitch | 3.0 | 3.0 |
| Horz/Vert | Horz | Horz |
arber Colman horizontal hobber
Model 14-15
s/n 1315
Machine is in very good running contition , standard style machine
this machine is well equipped as well
Machine catalog specifications are as follows:
MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter..............................................14"
* Max. Hob Diameter..................................................5-1/2"
* Max. Pitch......................................................3-1/2 DP
* Max. Work Face........................................................14"
* Max. Travel of Hob Slide..............................................15"
* Machine Electrics.........................................440/3/60 Cycle
* Machine Weight................................................11,000 lbs.
MACHINE IS EQUIPPED WITH:
* Change Gears
* 1 Hob Arbor
* Differential
* hyd unit
* coolant tank and pump
* screw typr center on tailstock
* lots of tooling and gears as photographed
* Part Clamping
* Manual
Machine can Be inspected in our partners warehouse in Illinois under
power in very good condition. contact us at www.pisellient.com to request
a formal quote in line or call or emaill [email protected] to come
see under power
thank you
rich Piselli
704 609-0766
