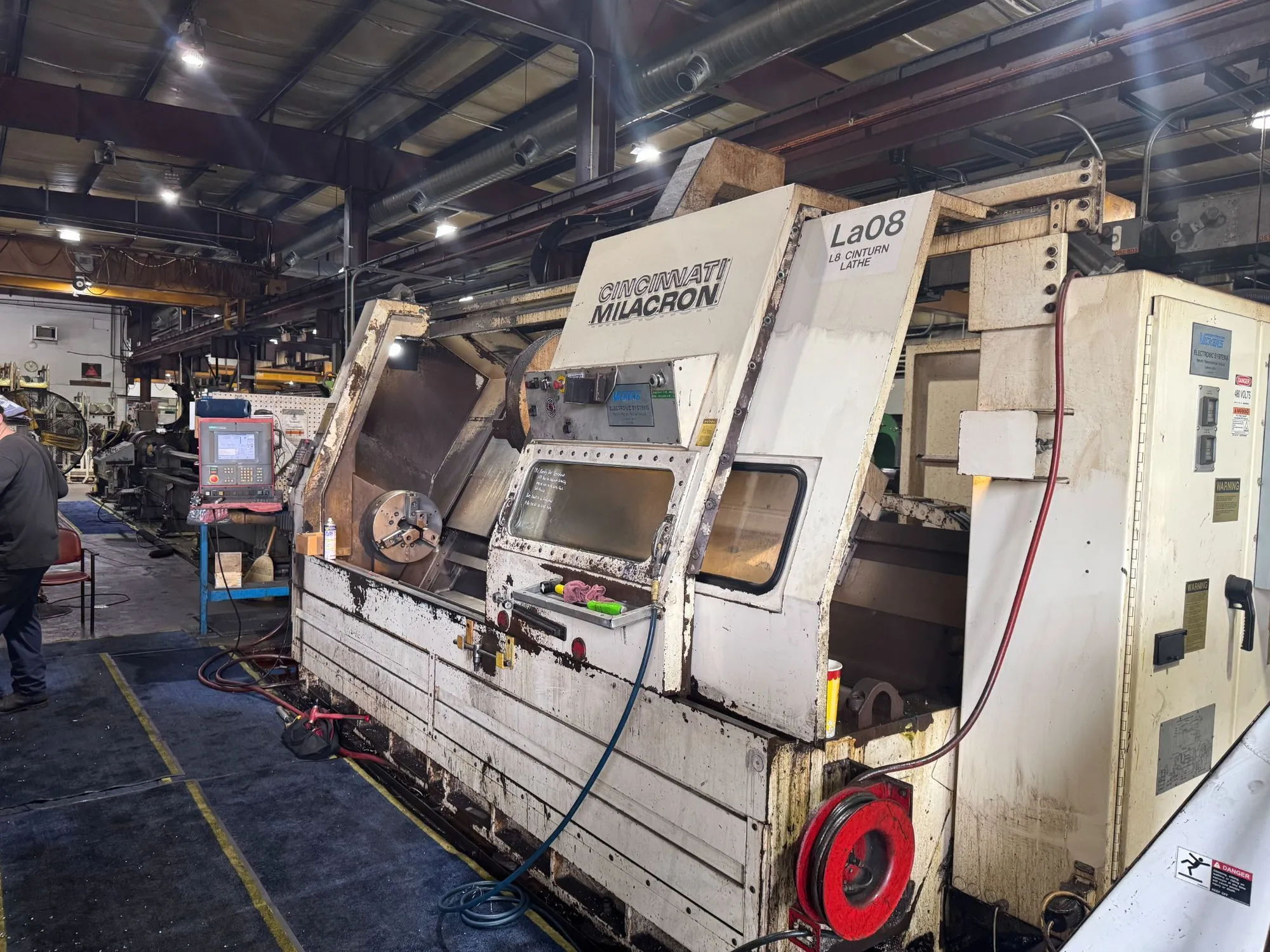

USED CINCINNATI MILACRON CINTURN 18U X 100
Overview
Description
Siemens Acramatic 2100 CNC
Specifications
| size | 18" Chuck | 18" Chuck |
|---|---|---|
| Swing | 28" | 711.2 mm |
| Machining Length | 100" | 2,540 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Siemens Acramatic 2100 CNC) | CNC (Siemens Acramatic 2100 CNC) |
Cincinnati Milacron Cinturn 18U X 100 Slant Bed CNC Lathe
Swing Over The Slant Bed............ 28"
Swing Over The Carriage............. 18.25"
Distance Between Centers.............100"
X-Axis Travel........................18"
Z-Axis Travel........................100"
Spindle Motor........................50 Hp
Spindle Bore.........................4.5"
Spindle Nose.........................A1-11
Spindle Speed........................1,500 Rpm
Electrics............................480v/3ph/60hz
Turrets (2)..........................6 Id/6 Od
Equipped With
Siemens Acramatic 2100 CNC
