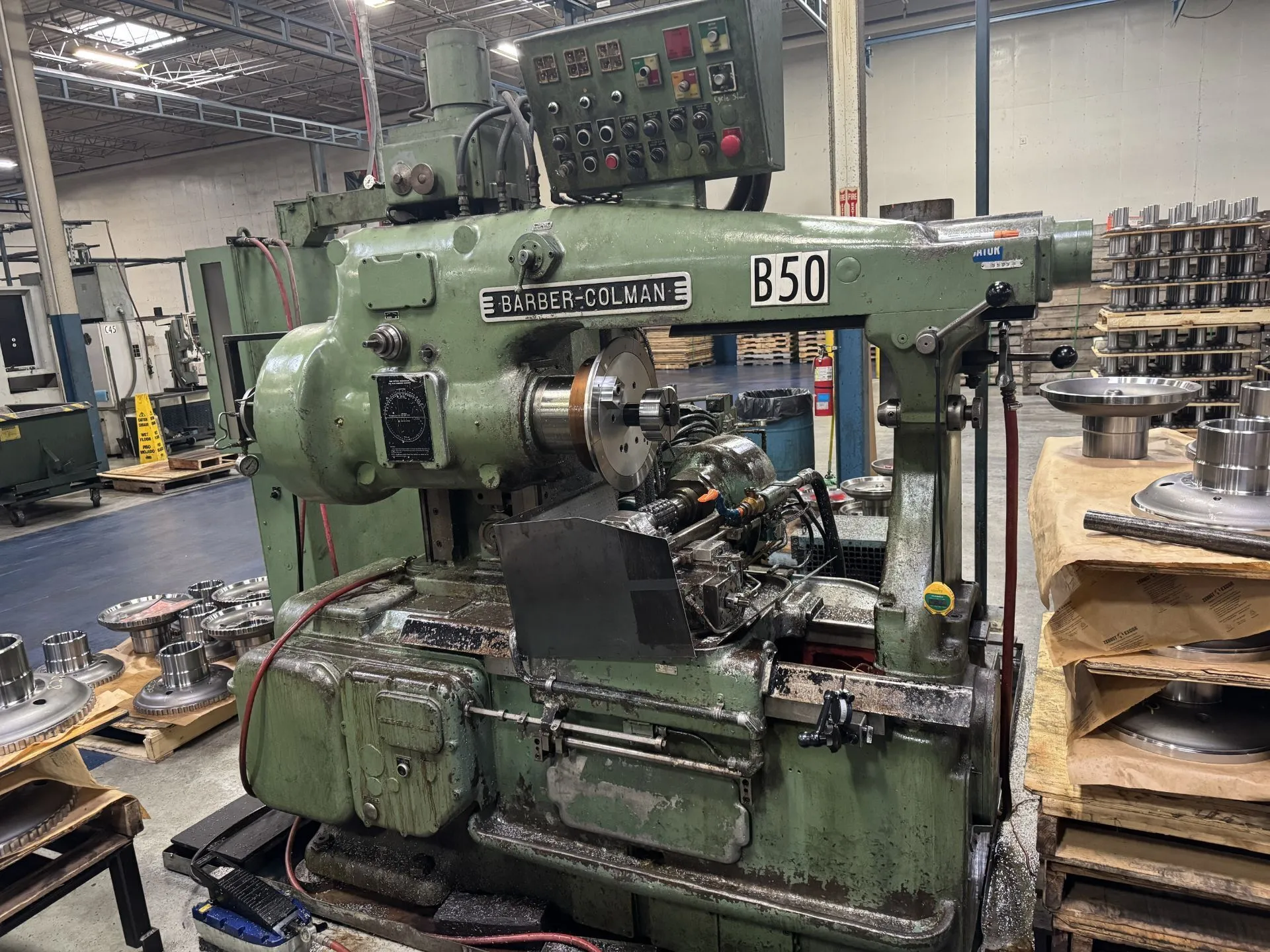

USED BARBER COLMAN 14-15
Overview
Description
Barber Colman model 14-15 , 14" diameter x 15" cut length, differential , series 2 , good running condition from service s/n 1288 located in Indiana
Specifications
| Max Workpiece Diameter | 14" | 355.6 mm |
|---|---|---|
| Max Diametral Pitch | 3.0 | 3.0 |
| Horz/Vert | Horz | Horz |
Barber Colman Horizontal hobbing machines
Model: 14-15 Multicycle
s/n 1288
Machine is coming directly from running service and cutting parts in
photos . series 2 machine with lots of features
Machine specifications are as follows:
MACHINE SPECIFICATIONS:
* Max. Rated Work Diameter 14"
* Max. Hob Diameter 5-1/2"
* Max. Pitch 3-1/2 DP
* Max. Work Face 14"
* Max. Travel of Hob Slide 15"
* Machine Electrics 440/3/60 Cycle
* Machine Weight 12,000 lbs.
MACHINE EQUIPPED WITH:
* Automatic cycles
* 1 Hob Arbor
* Differential
* Part Clamping
* Updated electrics
* Dual Lead worm
* tailstock w/ screw center
* Downfeed
^ Dwell
* Auto Hob shift
* Books and manuals
Machine can be inspected in very good condition in our NC Plant.
These would be a good addition to any gear shop.
Call to set up an inspection today!
GO to: www.PiselliEnt.com to view these and other gear machines
in our inventory request formal quotes on line with pricing
contact rich Piselli at [email protected]
