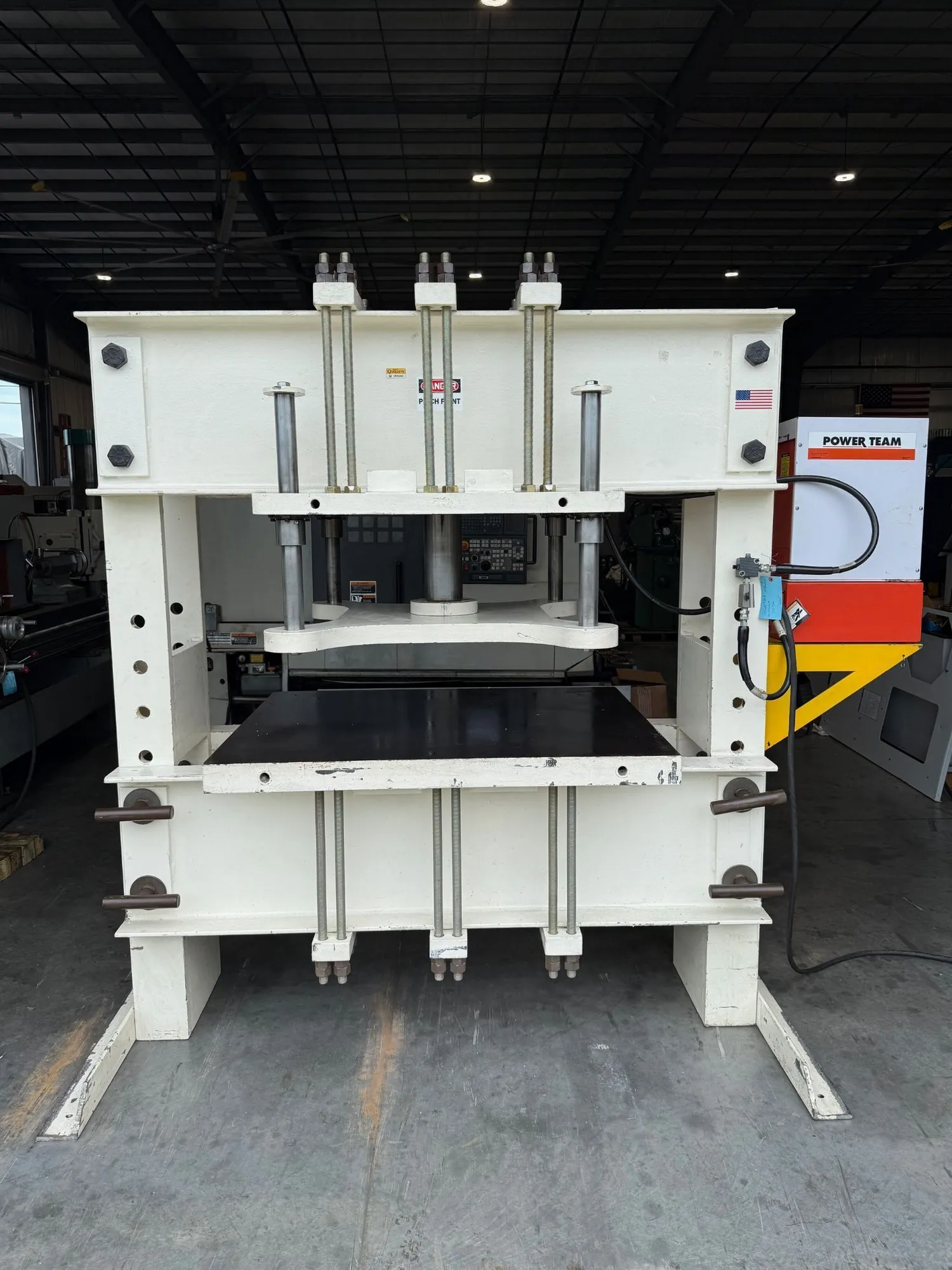

POWER TEAM 150 Ton Hydraulic H Frame Press 3 H.P. USA #7704
| Dimensions | 96” x 48” x 86” H | 96” x 48” x 86” H |
| Weight | 5000 Lbs. | 5000 Lbs. |
POWER TEAM 150 Ton Hydraulic H Frame Press 3 H.P. USA #7704
Reference #7704
Tonnage- 150 Ton
Stroke- 7” with plates / 13.13” no plates
Cylinder diameter-4-1/2”
Between frame- 60”
Maximum height under cylinder- 29-1/2”
Bed gap between frames- 15”
Top Plate- 24” x 24” x 2” Thick
Bottom Plate- 36” x 48” x 3” Thick
Top & Bottom Plates
Power Team #PQ120 Hydraulic Power Pack 10,000 P.S.I.
3 H.P. 230/460 volt 3 phase
Machine weight- 5,000 Lbs.
Machine dimensions- 96” x 48” x 86” H
Machine location- F.O.B. Sarasota, Florida
