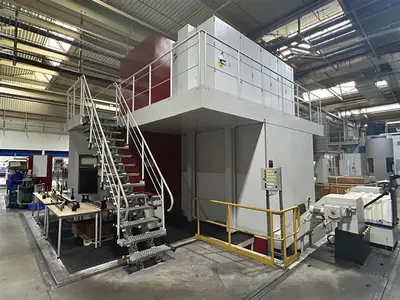

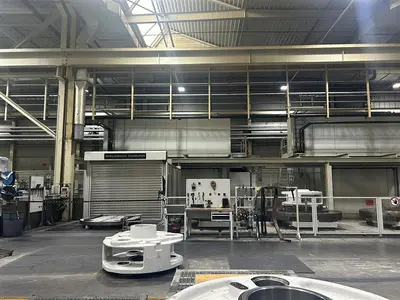

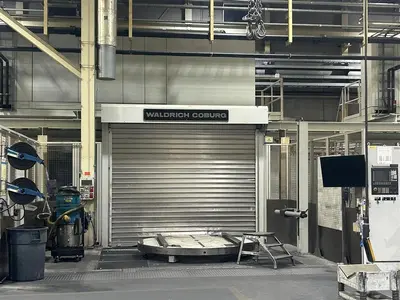

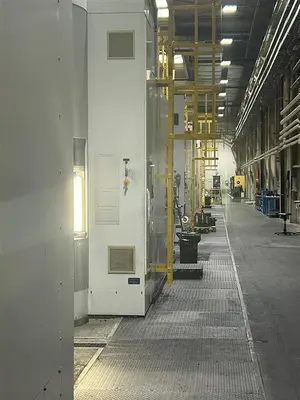

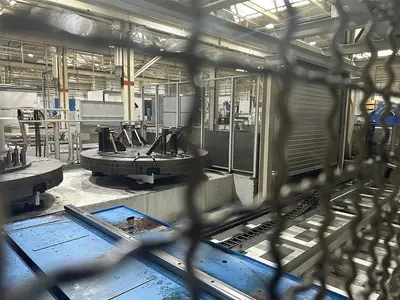

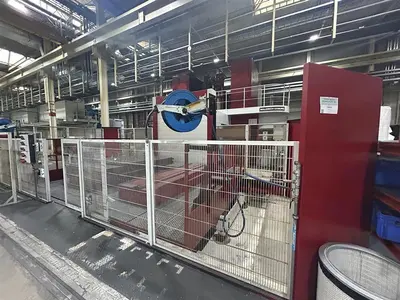

USED 2003 WALDRICH COBURG VALUTEC

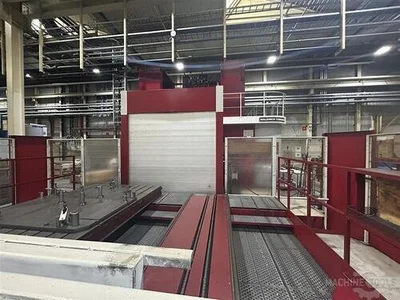

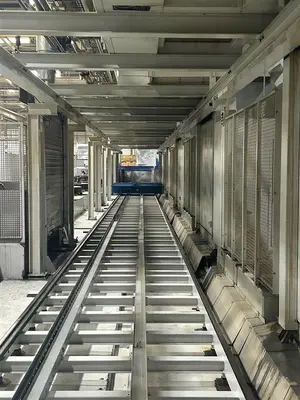

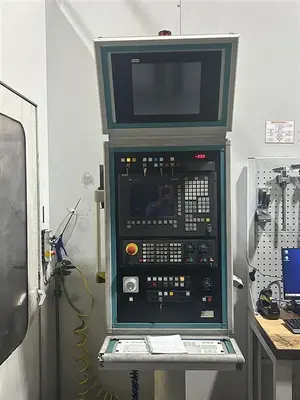

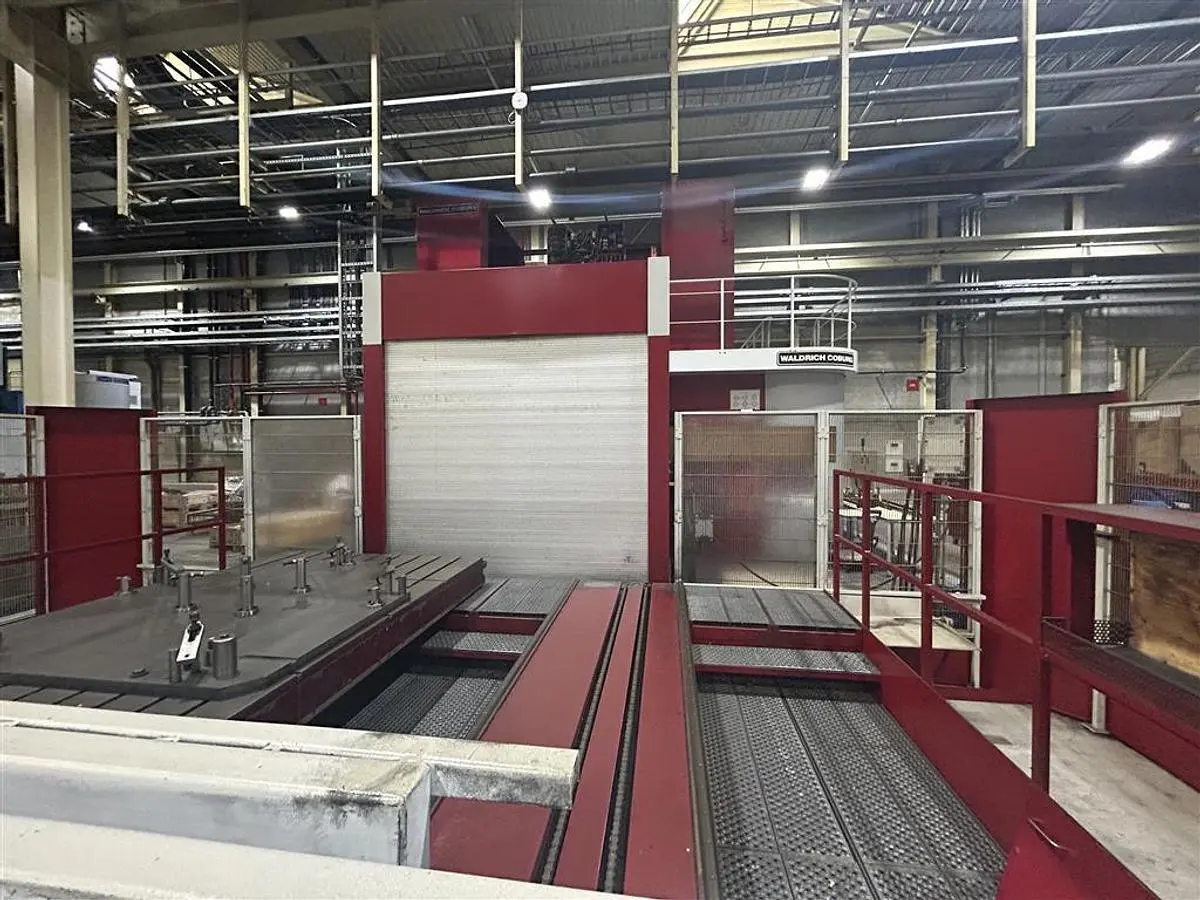

Siemens 840D Powerline CNC ControlMulti-Pallet Changer5-Axis Machining

Manufacturer: Waldrich Coburg
Model: VALUTEC
Year: 2003
Condition: Used
Stock Number: 5654221
Spindle speeds: 6,000 rpm
X axis travel: 4,000 mm
Y axis travel: 3,000 mm
Z axis travel: 1,500 mm
Passage height: 1,550 mm
Passage width: 2,500 mm
Table dimensions: 2,000 x 3,000 mm
Table capacity: 12 Ton
Tool taper: HSK-A100
Max torque: 800
Total power requirement: 30 kW
Machine dimensions: 9.5 x 6.7 x 6.2 m
Max tool weight: 30 kg
Max tool diameter: 250 mm
Max tool length: 500 mm
