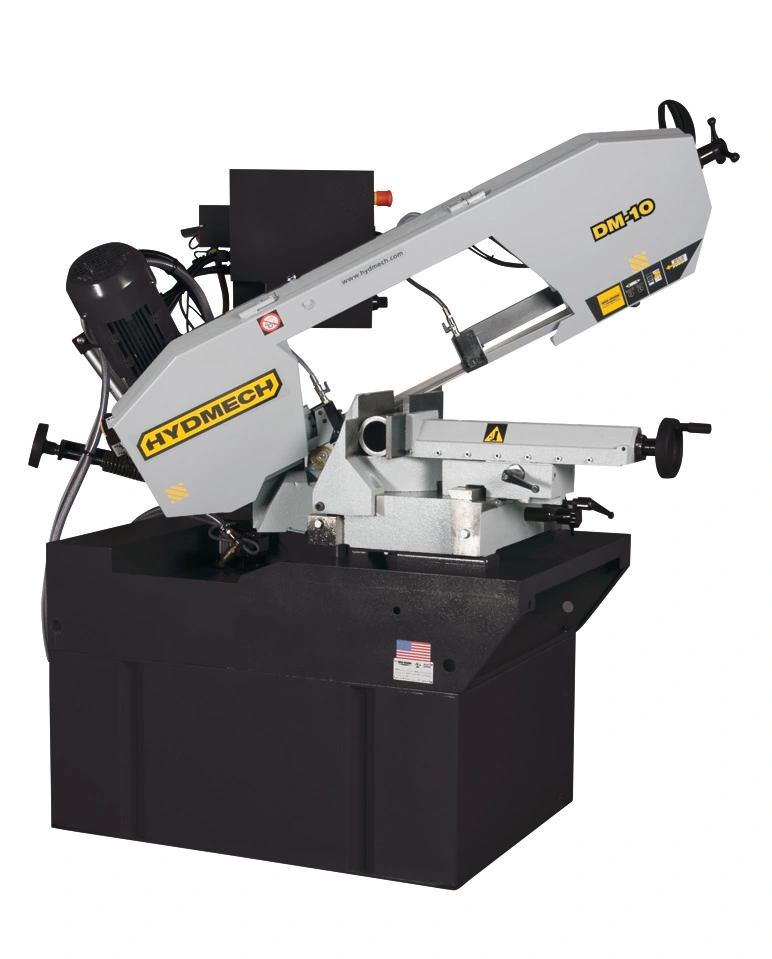

Exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. It's cast iron head and vises are designed for rigidity - absorbing vibrations and ensuring accuracy during cutting. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering. From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.
| Rect-Cap (H) | 7.75" | 196.85 mm |
| Rect-Cap (W) | 11" | 279.4 mm |
| Rounds-Cap | 9.75" | 247.65 mm |
| Square-Cap | 9" | 228.6 mm |
| Power | 2 hp | 1.5 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 1" | 25.4 mm |
Capacity Rectangular (h x w) Round
90° 9 1/2″ x 11″ 10″
45° Left 6 1/4″ x 4 1/2″ 5 3/4″
45° Right 8 1/4″ x 7″ 7 1/4″
30° Right 5″ x 4 1/2″ 4″
Blade Size 1” x 9’ 8”
Blade Drive 2/2.4 HP VFD
Machine Voltage 208, 240, 480, or 575 v
Blade Speed two speed 118-236 SFM
Coolant Tank Capacity 3.5 Gallons
Machine Weight 970 lbs.
Table Height 34”
Dimensions (w x l x h) 35.5” x 68” x 65”
