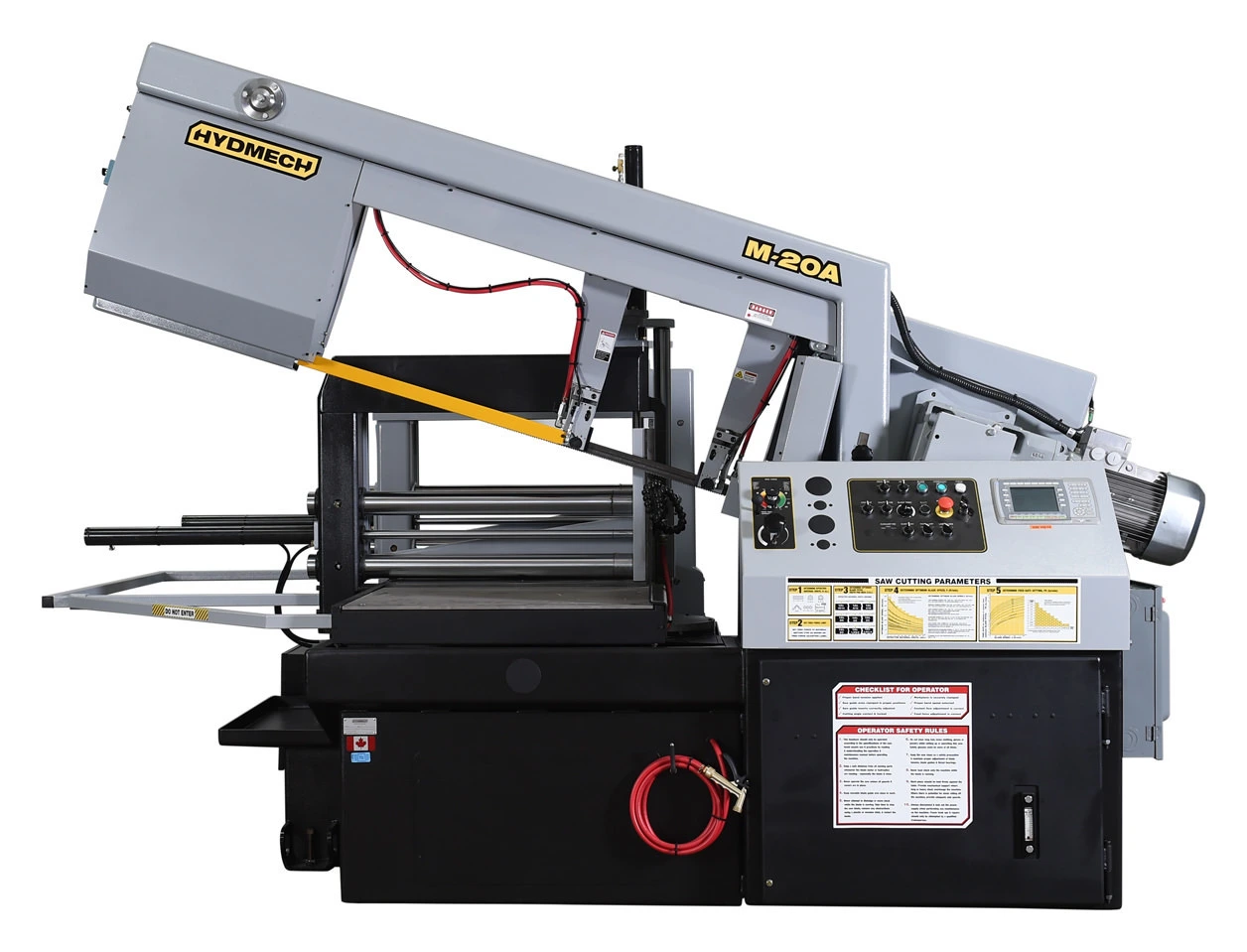

The M-20A is an automatic horizontal pivot band saw providing exceptional miter cutting capability for heavy-duty applications.
It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material.
The M-20A band saws standard PLC 500 control features a "go to" function which allows for automatic alternating between programmed angles. The M-20A miters from 90° to 60°.
Featuring a 20"H x 30"W capacity at 90°, 10 HP motor, and 1 1/2" blade, the M-20A is a reliable choice for your heavy-duty metal cutting applications.
| Rect-Cap (H) | 20" | 508 mm |
| Rect-Cap (W) | 30" | 762 mm |
| Rounds-Cap | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 246" | 6,248.4 mm |
| Dimensions | 140" x 90" x 66" | 140" x 90" x 66" |
| Weight | 7,700 lbs | 7,700 lbs |
Capacity Rectangular (h x w) Round
90° 20″ x 30″ 20″
45° 20″ x 19″ 20″
30° 20″ x 12″ 14″
Blade Size 1 1/2” x 20’ 6”
Blade Drive 10 HP VFD
Machine Voltage 208, 240, 480, 575 v
Blade Speed 50-350 SFM
Coolant Tank Capacity 9 Gallons
Work Load 8,000 lbs.
Machine Weight 7,700 lbs.
Table Height 32”
Dimensions (w x l x h) 129” x 90” x 110”
