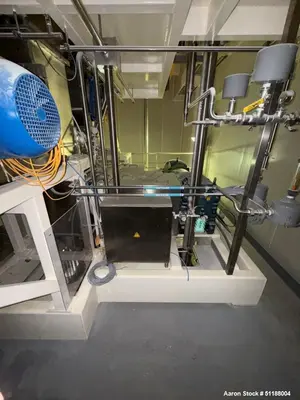

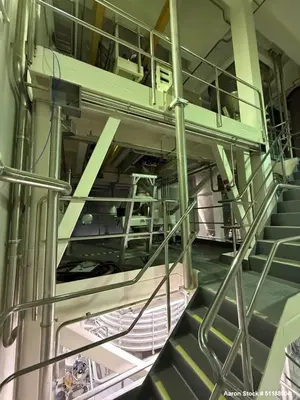

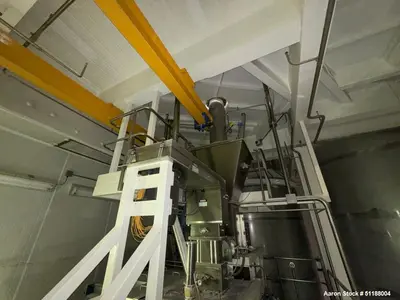

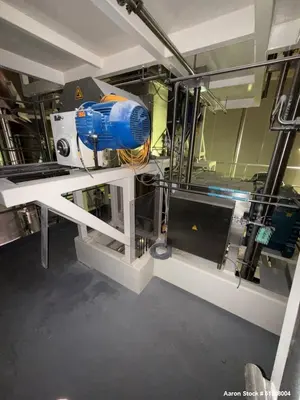

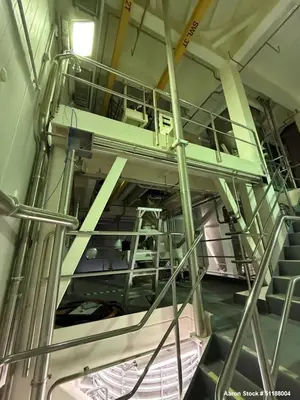

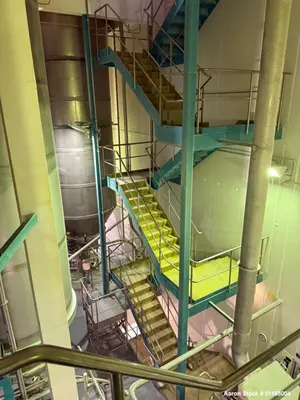

Used Fitzpatrick Chilsonator System with Comminutor Mill & GKM Screener – Complete Dry Granulation Line

Used Fitzpatrick Chilsonator System with Comminutor Mill & GKM Screener, Complete Dry Granulation Line. Chilsonator Model 16Lx20D, a Fitzpatrick HAS030 Comminutor Mill, and a GKM Siebtechnik KTS 2600/5DS2V Screener to provide a complete dry granulation and size-reduction solution. All stainless-steel wetted parts. The Chilsonator uses dual 16" x 20" radial cored rolls with controlled hydraulic pressure and feed augers to compact powders into fees screws for improved flow and reduced dust. These ribbons are then processed by the HAS030 Comminutor Mill, which employs interchangeable screens and a hammer/knife design for precise particle size reduction. Final classification is achieved with the GKM KTS 2600/5DS2V vibratory tumbler screener, featuring a 102-1/2" / 2600 mm diameter and five-deck design for high-throughput separation, ensuring consistent particle size distribution. This integrated system delivers efficient compaction, milling, and screening for pharmaceutical, chemical, food, and specialty material applications. (AARON WILL FACILITATE LOADING INCLUDED IN THE FINAL PRICE). Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Chilsonator: Fitzpatrick – Model 16Lx20D

Mill: Fitzpatrick – HAS030 Comminutor Mill

Screener: GKM Siebtechnik – Model KTS 2600/5DS2V

Category: Dry Granulation, Compaction, Milling, and Screening Equipment

Construction: All stainless-steel wetted parts

Description
This integrated Fitzpatrick and GKM system provides a complete dry granulation and size reduction solution for powders across the pharmaceutical, chemical, food, and specialty materials industries.

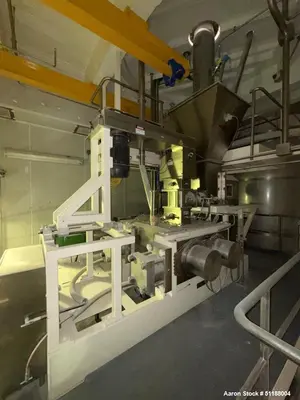

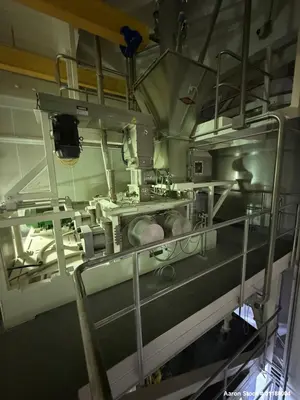

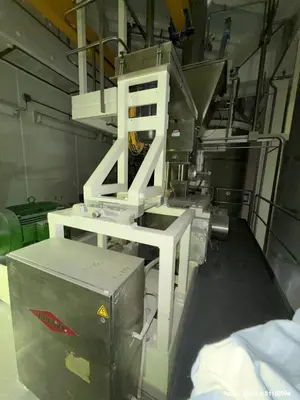

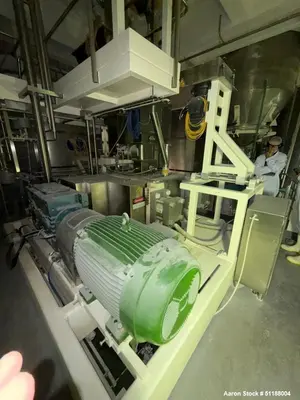

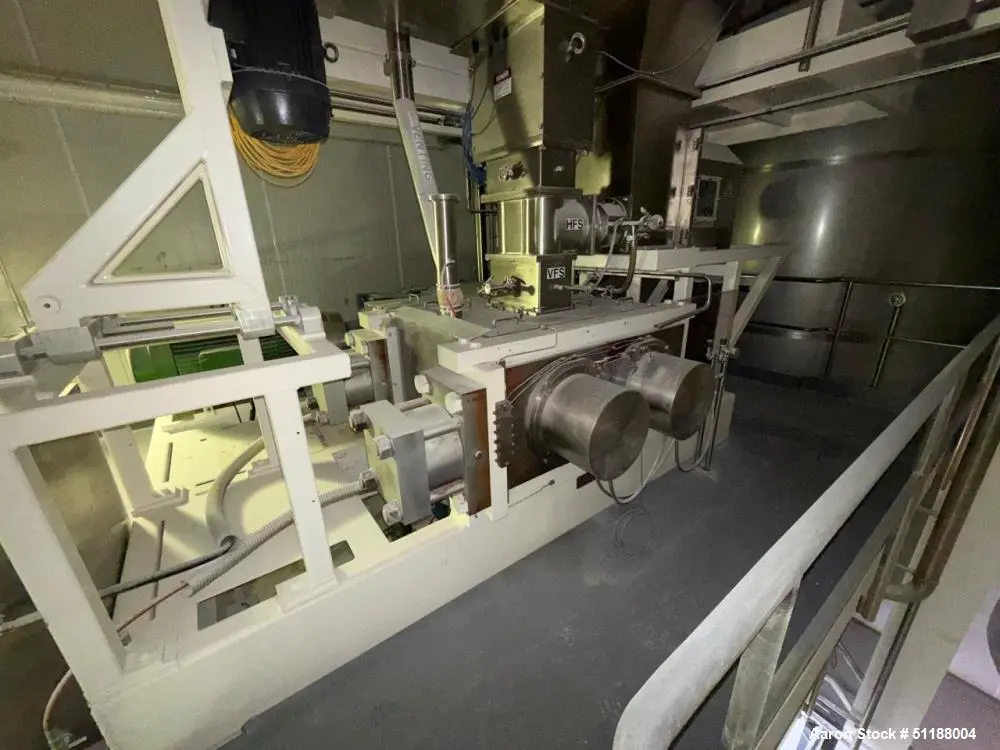

At the heart of the system is the Fitzpatrick Chilsonator Model 16Lx20D, which utilizes dual 16” x 20” compaction rolls with controlled hydraulic pressure and feed augers. This process compacts fine powders into uniform flakes or ribbons, dramatically reducing dust while improving flowability.
The ribbons are then processed by the Fitzpatrick HAS030 Comminutor Mill, which uses a hammer/knife rotor with interchangeable screens to deliver precise particle size reduction.

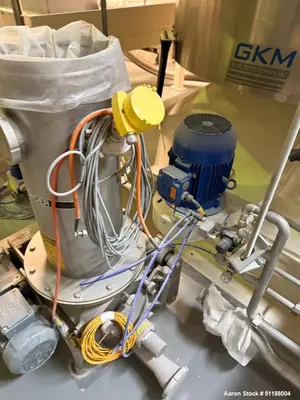

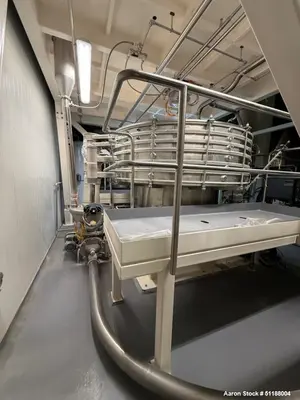

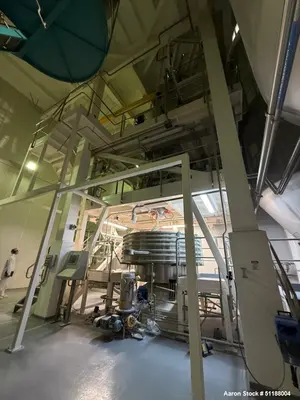

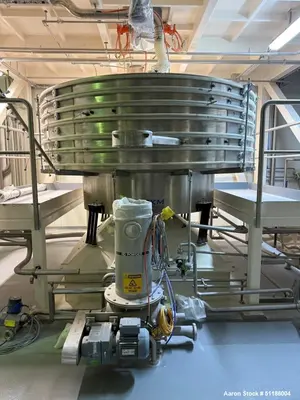

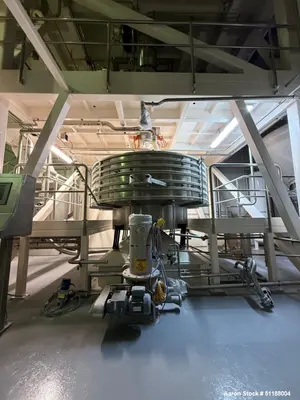

Final classification is achieved through the GKM Siebtechnik KTS 2600/5DS2V vibratory tumbler screener, featuring a 102.5” (2600 mm) diameter and five-deck design, ensuring high throughput with accurate particle size separation.
This turnkey line offers compaction, milling, and screening in one integrated solution, designed for maximum efficiency, consistency, and product quality.
Specifications

Chilsonator (Fitzpatrick 16Lx20D):

Dual rolls: 16” x 20”

Hydraulic pressure control

Feed augers for uniform compaction

Comminutor Mill (Fitzpatrick HAS030):

Hammer/knife rotor design

Interchangeable screens

Precision particle size reduction

Screener (GKM Siebtechnik KTS 2600/5DS2V):

Vibratory tumbler screener

Diameter: 2600 mm / 102.5”

Five-deck configuration

High throughput separation

Construction: All stainless-steel wetted parts

Applications: Pharmaceutical, chemical, food, specialty powders

Applications
What might this be used for?

Pharmaceutical dry granulation and compaction

Tablet and capsule ingredient preparation

Nutraceutical and dietary supplement powders

Food powders (starches, proteins, cocoa, milk powders)

Chemical powders and catalysts

Agrochemicals and fertilizers

Specialty powders for industrial products

Powder metallurgy and ceramics preparation

Battery material processing

Any application requiring dust reduction and controlled particle size

Example Products Processed with this System

Active pharmaceutical ingredients (APIs)

Nutritional supplements and vitamins

Starches, milk powder, and food additives

Fine chemical intermediates

Fertilizer granules

Ceramic powders and abrasives

Pigments, dyes, and colorants

Polymer and plastic additives

Battery electrode powders

Specialty industrial minerals
