Used Applied Extracts Supercritical CO2 Extractor – Model AE 2 x 25L

Manufacturer Information

Manufacturer: Applied Extracts

Model: AE 2 x 25L

Category: Supercritical CO2 Extraction System

Year Built: 2019

Description
The Applied Extracts AE 2 x 25L Supercritical CO2 Extractor is a high-performance, dual-vessel extraction system designed for efficient botanical and specialty material extraction. Built in 2019, this system delivers throughput up to 250 lbs/day (material and process dependent), offering both flexibility and efficiency in large-scale extraction operations.

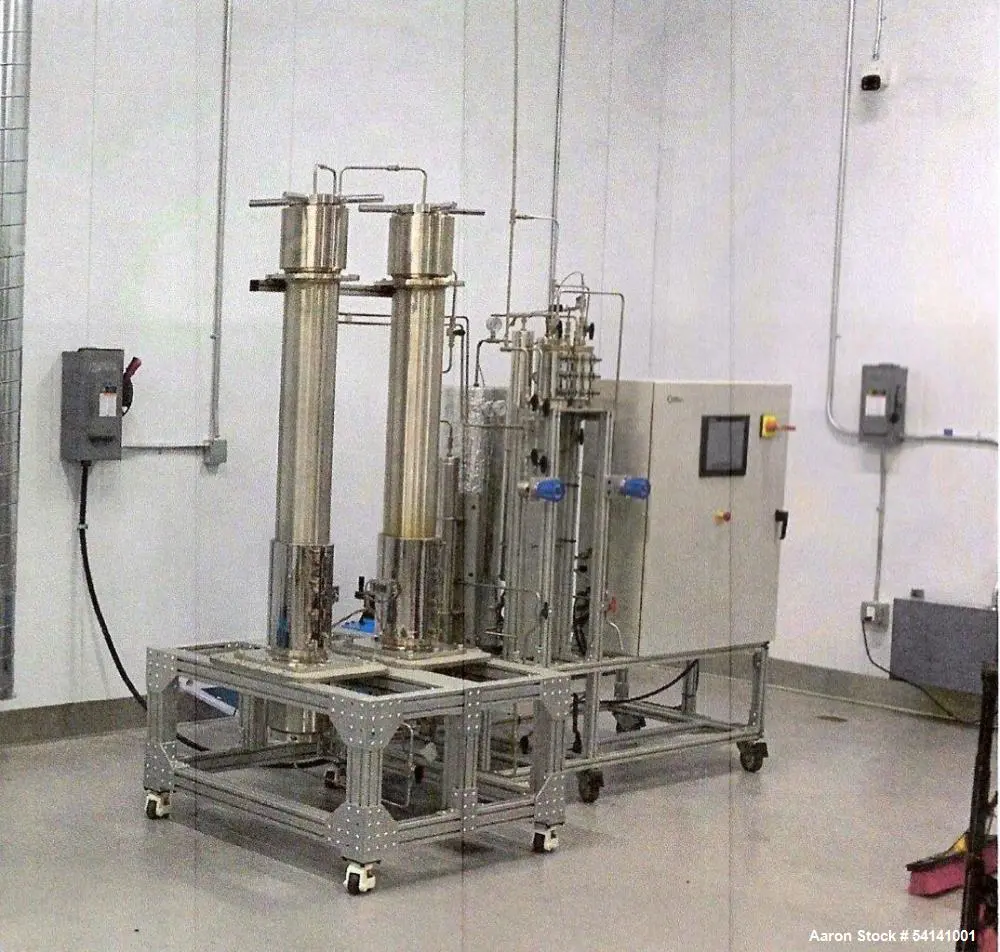

The system features a dual 25-liter extraction vessel design, enabling continuous operation by allowing one vessel to extract while the other is loaded or unloaded. This design also reduces CO2 consumption by approximately 50% compared to single-vessel systems when operated according to SOP (included).

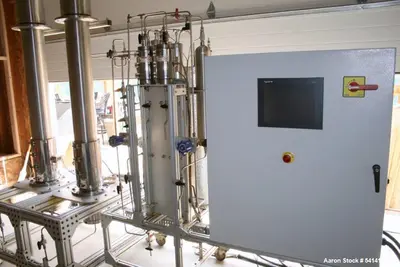

The machine comes equipped with appropriately scaled tanks, electric band heaters, separator tanks, primary heat exchanger module, temperature-controlled transfer lines, supplementary pumps, and a PLC control system for precise operation.

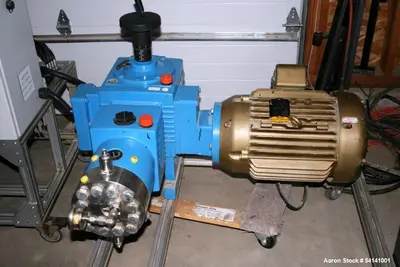

A Lewa high-flow diaphragm pump (1.5 L/min) provides up to 4350 psi discharge pressure, powered by a 7.5 HP 3-phase motor with VFD control. Additional features include a 16L liquid CO2 storage tank and condenser heat exchanger.
Specifications

Model: AE 2 x 25L

Extraction Capacity: ~250 lbs/day (material & process dependent)

Extraction Vessels: (2) x 25L – dual tank design for continuous processing

CO2 Storage Tank: 16L liquid storage tank

CO2 Consumption: ~50% less than single-vessel designs

Heat Exchanger: Primary condenser heat exchanger

Heating System: Electric band heaters, temperature-controlled transfer lines

Pump: 1.5 L/min Lewa high-flow diaphragm pump

Max Discharge Pressure: 4350 psi

Motor: 7.5 HP, 3-phase, 230V with VFD control

Power Requirements: 230–240V, 3-phase, 60 Hz, 50A

Year Built: 2019

Controls: PLC control system with SOP included

Applications
What might this be used for?

Botanical extraction (essential oils, flavors, aromas)

Hemp & cannabis CO2 extraction (CBD, THC concentrates)

Food-grade extraction (spices, hops, coffee, tea)

Nutraceuticals (herbal extracts, supplements)

Pharmaceutical research compounds

Fragrances and cosmetic oils

Specialty chemical extractions

Terpene recovery and refinement

Solvent-free extraction processes

Continuous R&D or production scale operations

Example Products Processed with this Machine

Hemp-derived CBD oils and isolates

Cannabis extracts (shatter, wax, concentrates)

Essential oils (lavender, peppermint, citrus)

Coffee and tea extracts

Hops and botanical flavor extracts

Nutritional supplement plant extracts

Fragrance oils for cosmetics and perfumery

Spices and herbal extracts

Terpene-rich fractions for product formulation

Food-safe extracts for natural flavorings
