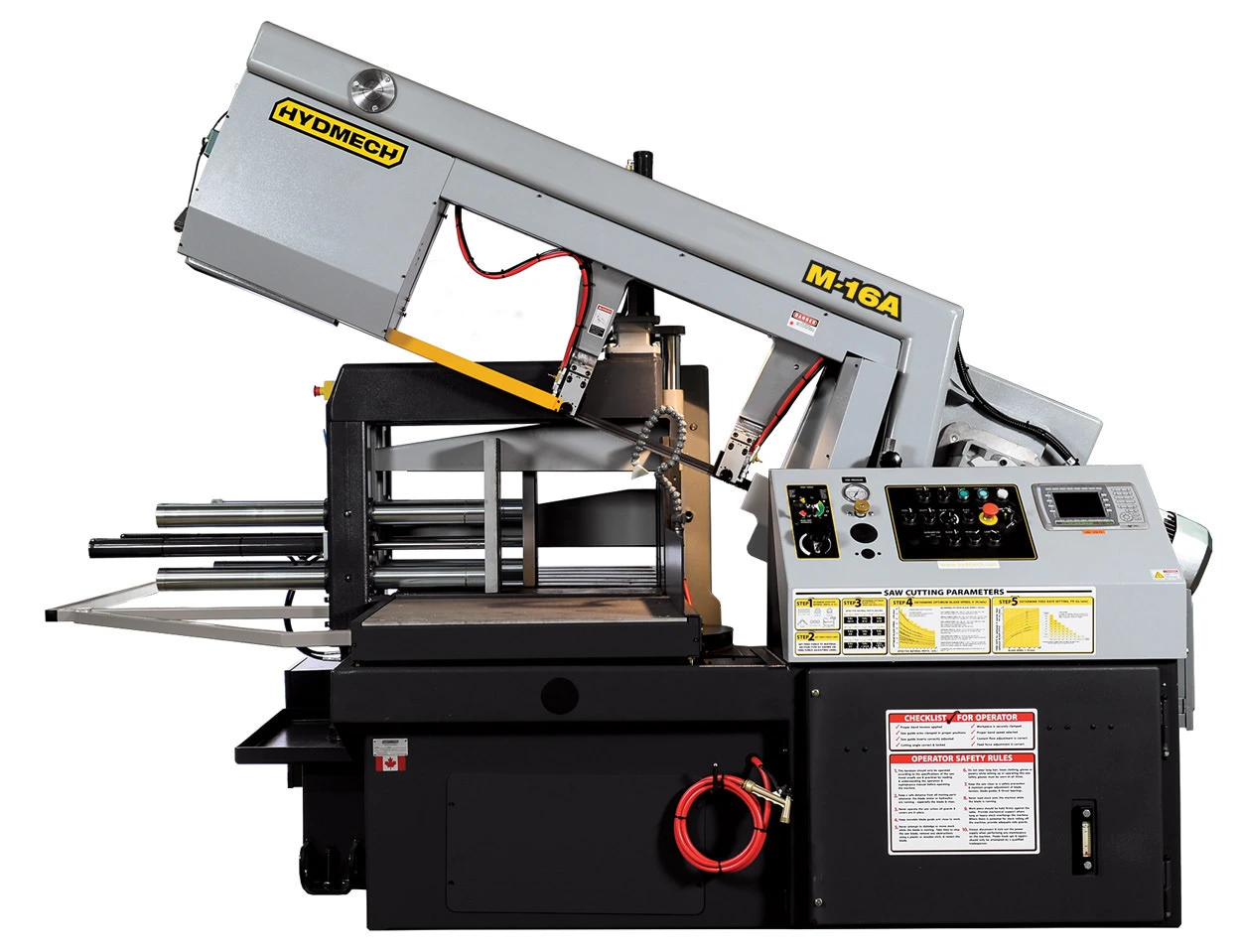

The M-16A is an automatic scissor style band saw providing exceptional miter cutting capability for heavy-duty applications.
It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material. The M-16A miters from 90° to 60°.
Featuring a 16"H x 25"W capacity at 90°, 7.5 HP motor, and 1 1/4" blade, the M-16A is a reliable choice for your heavy-duty metal cutting applications.
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 25" | 635 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 222" | 5,638.8 mm |
| Dimensions | 132" x 90" x 66" | 132" x 90" x 66" |
| Weight | 7,400 lbs | 7,400 lbs |
Capacity Rectangular (h x w) Round
90° 16″ x 25″ 16″
45° 16″ x 15″ 16″
30° 16″ x 9″ 11″
Blade Size 1 1/4” x 18’ 6”
Blade Drive 7.5 HP VFD
Machine Voltage 208, 240, 480, 575 v
Blade Speed 50-350 SFM
Coolant Tank Capacity 9 Gallons
Work Load 8,000 lbs.
Machine Weight 7,400 lbs.
Table Height 32”
Dimensions (w x l x h) 132” x 90” x 66”
