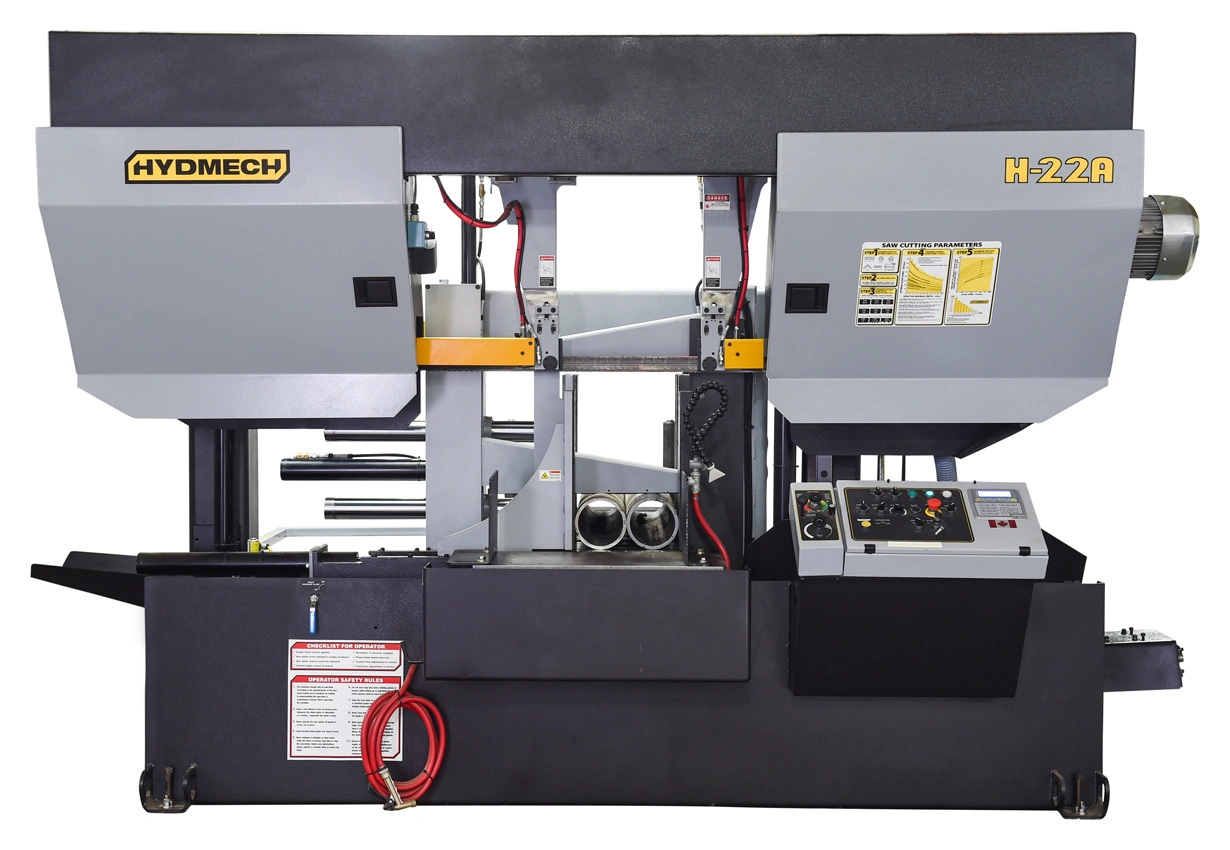

NEW HYD-MECH H-22A

The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-22A is fast, with its high speed shuttle feed indexing up to 34" in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Featuring a 22" x 22" capacity, 10 HP motor, and 2" blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Capacity Rectangular (h x w) Round
90°         22″ x 22″               22″
                Canted: 20″ x 22″ Canted: 20″
Blade Size              2” x 22’ 6”
Blade Drive              10 HP VFD
Machine Voltage   208, 240, 480, 575 v
Blade Speed              40-300 SFM
Automatic Multi-Indexing 0-34″
Machine Weight               12,500 lbs.
Table Height             31” Canted:35″
Dimensions (w x l x h)    141” x 88” x 92”
