USED 1999 HURCO PA65-25
Overview

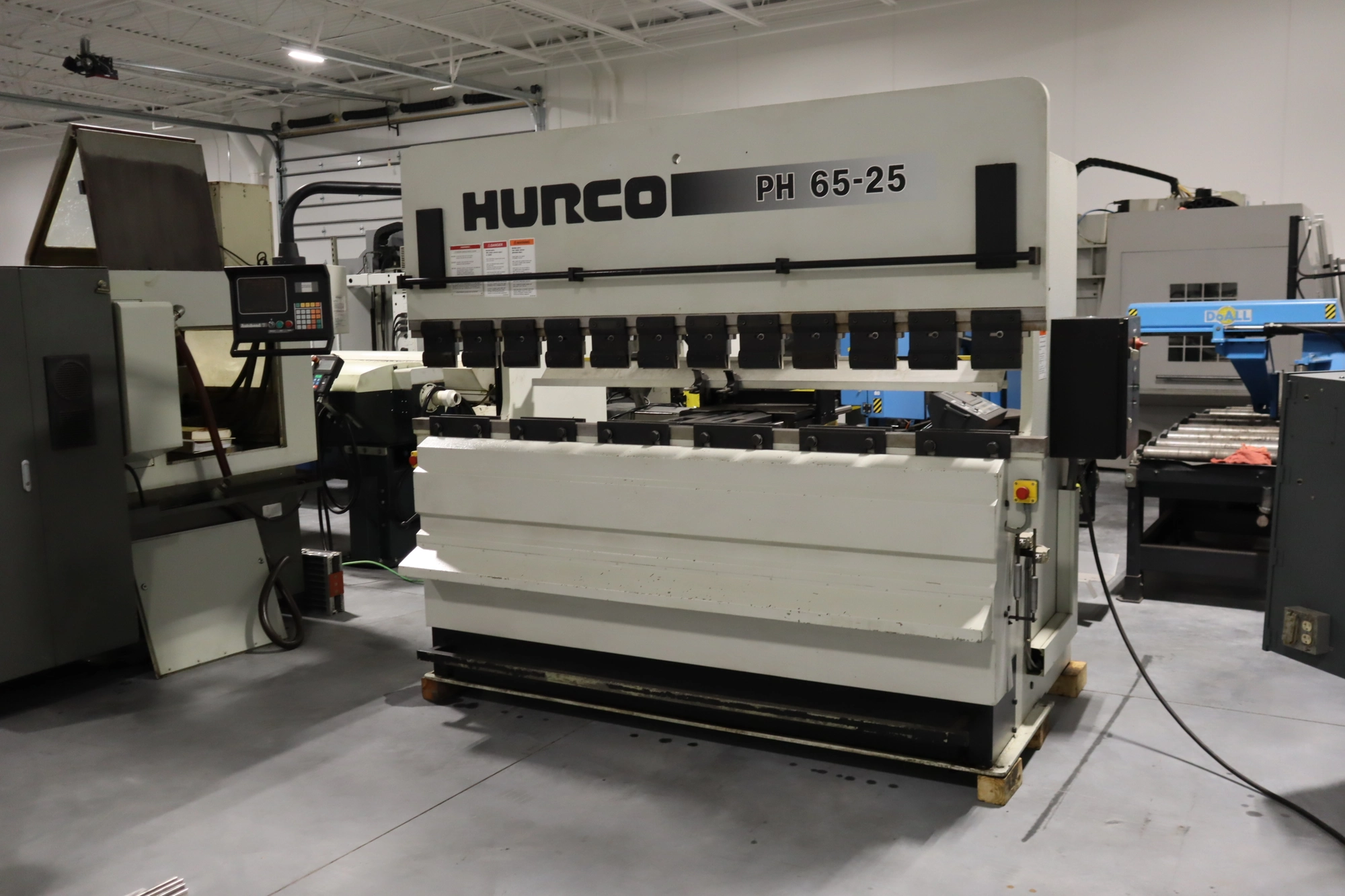

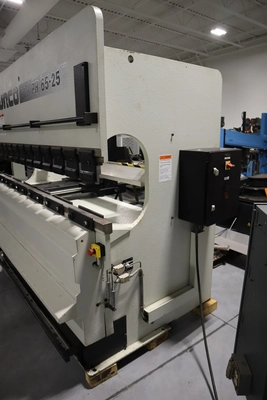

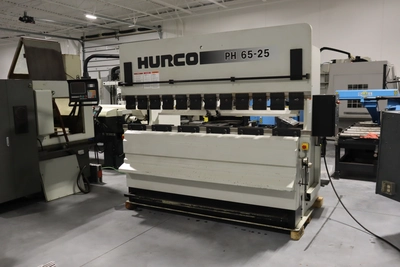

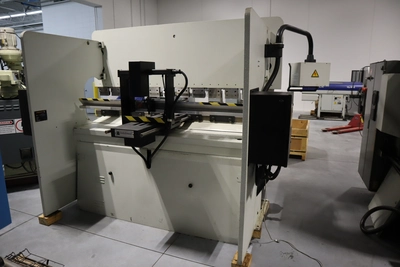

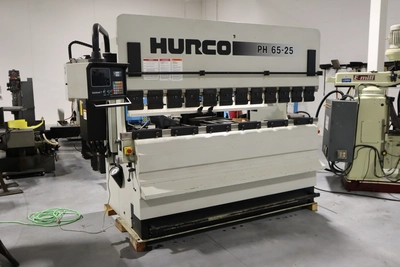

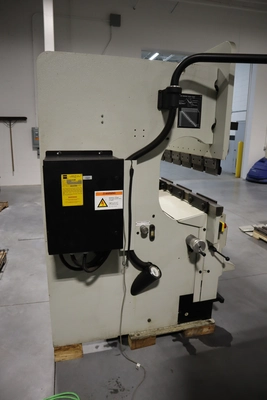

Hurco Hydraulic Press Brake with Hurco Autobend 7 Controls is an up-acting hydraulic press brake. Model PA65-25 has a 71 US Ton Capacity and a 98" Bed and Ram.
Specs

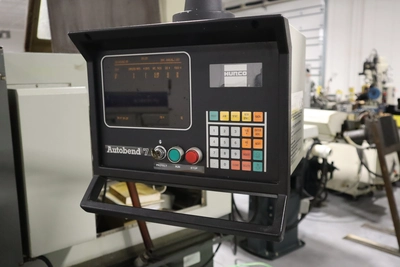

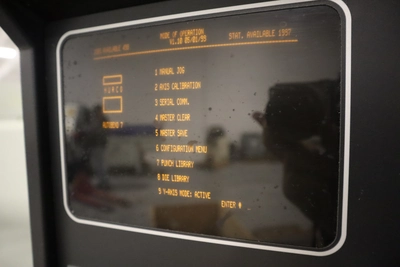

Control:: Hurco Autobend 7 CNC Control of Ram and Backgauge
Tonnage Capacity:: 71 US / 65 Metric Tons
Bending Capacity:: 8' x 14 Gauge
Bed and Ram Length:: 98.43" (2500mm)
Distance Between Housings:: 85"
Ram Approach Speed:: 106 IPM
Bending Speed(s):: 17 IPM
Ram Return Speed:: 142 IPM

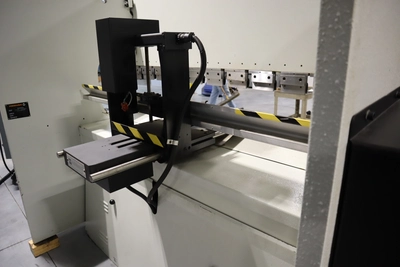

Programmable Controlled Axes:: Y (Ram) X, R (Backgauge Vertical)

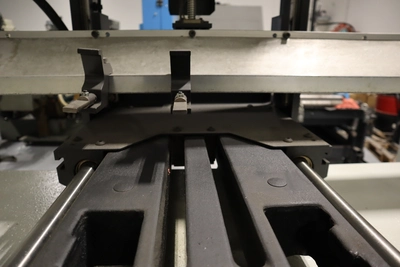

Programmable Backgauge Distance:: 24"
Throat Depth:: 15.75"
Maximum Ram Stroke:: 3.94"
Max Open Height:: 14.6"
Closed Height:: 11.81"
Drive Motor:: 4.0 HP
Equipped With

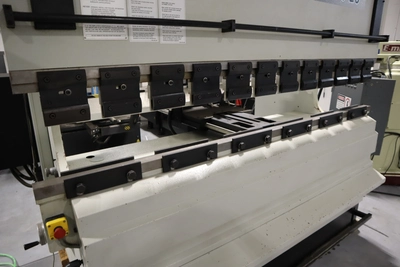

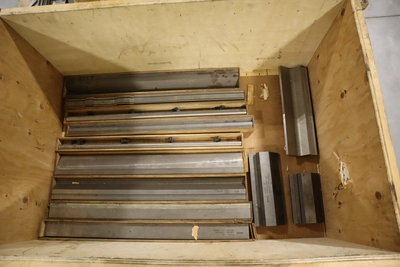

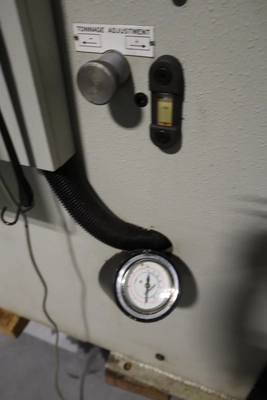

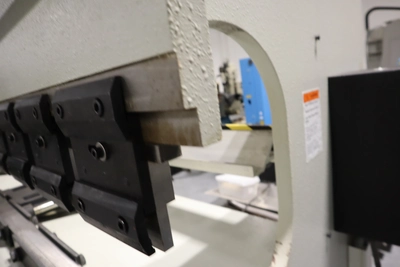

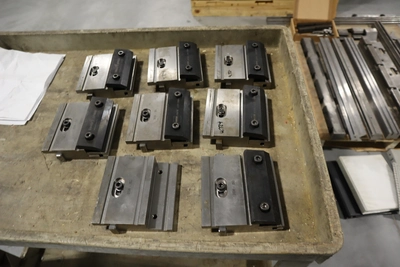

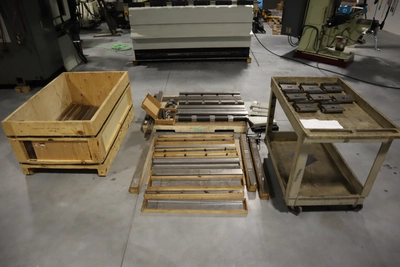

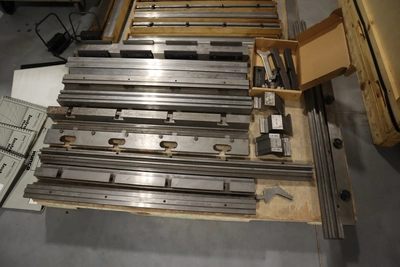

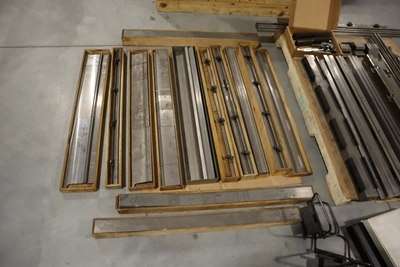

Hurco Autobend VII CNC Control, Programmable Upacting Ram, Programmable X and R Axis Backgauge, Ram Clamps, Lower Die Holders, Tonnage Controls, Ram Tilt Control, Large Assortment of Dies and Die Holders, Remote Foot Actuator, Manuals.
